Frigidaire 297068500 User Manual

Frigidaire commercial chest freezer ice cream freezer user manual.
Hide thumbs

Advertisement

FRIGIDAIRE
C O M M E R C I A L
COMMERCIAL CHEST FREEZER

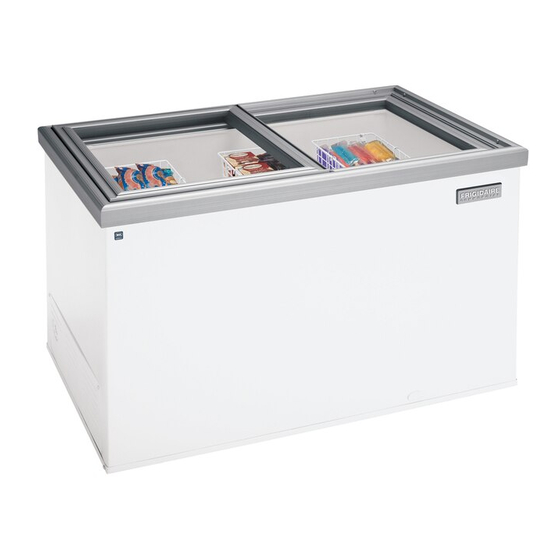

ICE CREAM FREEZER
TABLE OF CONTENTS
Product Registration................................................ 2
Important Safety Instructions.................................... 2
Electrical Information............................................... 3
Installation and Setup............................................... 3
Appliance Start-up.................................................... 4
Features................................................................. 4
Routine Maintenance............................................... 5
Energy Conservation Measures................................. 6
Troubleshooting Guide............................................. 7
Wiring Diagram....................................................... 9
Warranty............................................................... 10
READ AND SAVE THESE INSTRUCTIONS
297068500 (Feb. 2006)

Advertisement

   Related Manuals for Frigidaire 297068500

   Summary of Contents for Frigidaire 297068500

  • Page 1: Table Of Contents

    Product Registration………………………………….…... 2 Important Safety Instructions……………………….…... 2 Electrical Information…………………………………... 3 Installation and Setup…………………………………... 3 Appliance Start-up…………………………………... 4 Features……………………………………………………... 4 Routine Maintenance……………………………………..… 5 Energy Conservation Measures………………………... 6 Troubleshooting Guide…………………………………... 7 Wiring Diagram……………………………………………... 9 Warranty……………………………………………………... 10 READ AND SAVE THESE INSTRUCTIONS 297068500 (Feb. 2006)

  • Page 2: Product Registration

    Junked or abandoned refrigerators or freezers are still dangerous – even if they will sit for “just a few days”. If you are getting rid of your old refrigerator or freezer, please follow the instructions below to help prevent accidents: •...

  • Page 3: Electrical Information

    Electrical Information These guidelines must be followed to ensure that safety mechanisms in the design of this appliance will operate properly. Avoid fire hazard or electric shock. Do not use an extension cord or an adapter plug. Do not remove any prong from the power cord.

  • Page 4: Appliance Start-up

    • There are two (2) glass lids, a smaller one that fits in the lower track of the ice cream freezer and a larger one that fits in the upper track. The lower track has two (2) round retaining studs and the upper has four (4) round retaining studs •...

  • Page 5: Routine Maintenance

    Defrosting It is important to defrost and clean the freezer when ¼ to ½ inch of frost has accumulated. Frost may tend to accumulate faster on the upper part of the freezer due to warm, moist air entering the freezer when the lid is opened.

  • Page 6: Energy Conservation Measures

    If the freezer will not be used for several months: • Remove all food and unplug the power cord. • Clean and dry the interior thoroughly. • Leave the freezer lid open slightly, blocking it open if necessary, to prevent odor and mold growth. Moving...

  • Page 7: Troubleshooting Guide

    * Warm air entering the freezer causes it to run more. Open the lid less often. * Wait until the freezer has had a chance to reach its selected temperature. * Freezer requires 24 hours to cool down completely.

  • Page 8

    PROBLEM SOUND AND NOISE (Cont.) Bubbling or gurgling sound, * Refrigerant (used to cool freezer) is circulating throughout the system. Vibrating or rattling noise. * Freezer is not level. It rocks on the floor when it is moved slightly. * Floor is uneven or weak.

  • Page 9: Wiring Diagram

    Disconnect the power cord before servicing. SOLID TOP CHEST MODELS ELECTRICAL CIRCUIT IF ANY GREEN GROUNDING WIRES ARE REMOVED DURING SERVICING, THEY MUST BE RETURNED TO THEIR ORIGINAL POSITION AND PROPERLY SECURED. ICE CREAM FREEZER MODELS ELECTRICAL CIRCUIT IMPORTANT...

  • Page 10: Warranty

    6. Rust on the interior or exterior of the unit. 7. Products purchased “as-is”. 8. Food loss due to any refrigerator or freezer failures. 9. Damage caused at any time during shipment. 10. Service calls which do not involve malfunction or defects in materials or workmanship, or for appliances used other than in accordance with the provided instructions.

  • Page 11

    Electrolux Home Products, Inc. P.O. Box 212378 Augusta, GA 30917 Visit Frigidaire’s Web Site at: Visite la página de Frigidaire en Internet: Visitez le site Internet de Frigidaire au: http://www/frigidaire.com The Electrolux Group. The world’s No. 1 choice.
