IEEE 802.5 and IBM Token-Ring Network
Compatible
IEEE 802.3 and Blue Book Ethernet
Network Compatible
Pin and Software Compatible With the
TMS380C16
Configurable Network Type and Speed:
– Selectable by Host Software Control
(Adapter Control Register)
– Selectable by Network Front-End
– Readable from Host (Adapter Control
Register)
Token-Ring Features
– 16- or 4-Megabit-per-Second Data Rates
– Supports up to 18K-Byte Frame Size
(16 Mbps Operation Only)
– Supports Universal and Local Network
Addressing
– Early Token Release Option (16 Mbps
Operation Only)
– Compatible With the TMS38054
Ethernet Features
– 10-Megabit-per-Second Data Rate
– Compatible With Most Ethernet Serial
Network Interface Devices
– Full Duplex Ethernet Operation Allows
Network Speed Self-test
Expandable Local LAN Subsystem Memory
Space up to 2 Megabytes
Supports Multicast Addressing of Network
Group Addresses Through Hashing
Glueless Interface to DRAMs
High-Performance 16-Bit CPU for
Communications Protocol Processing
Up to 8 Megabyte-per-Second High-Speed
Bus Master DMA Interface

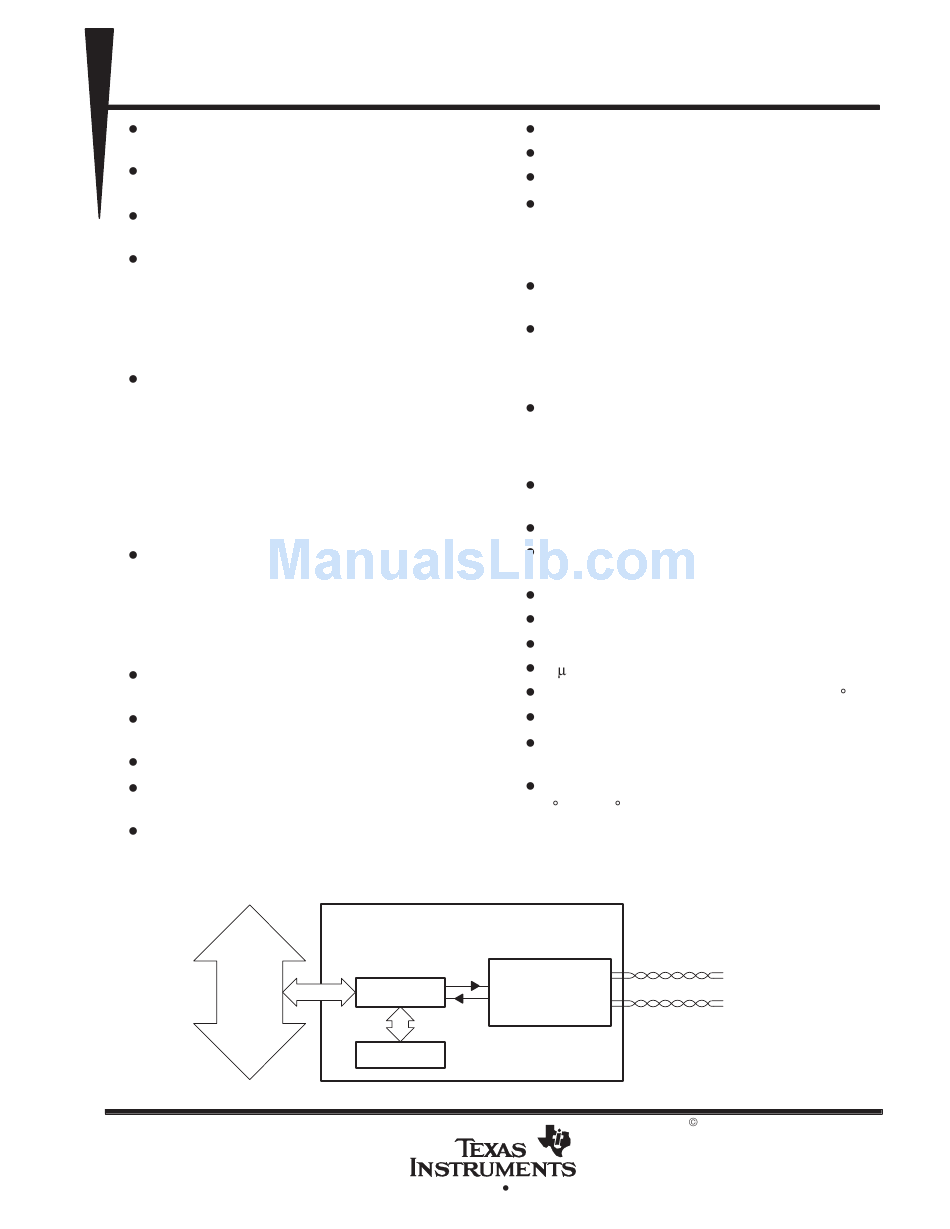

network commprocessor applications diagram
Attached
System
Bus
PRODUCTION DATA information is current as of publication date.
Products conform to specifications per the terms of Texas Instruments
standard warranty. Production processing does not necessarily include
testing of all parameters.
Low-Cost Host-Slave I/O Interface Option
Up to 32-Bit Host Address Bus
Selectable Host System Bus Options
80x8x or 68xxx-Type Bus and Memory
Organization
– 8- or 16-Bit Data Bus on 80x8x Buses
– Optional Parity Checking
Dual-Port DMA and Direct I/O Transfers to
Host Bus
Specification for External Adapter-Bus
Devices (SEADs) Supports External
Hardware Interface for User-Defined
External Logic
Enhanced Address Copy Option (EACO)
Interface Supports External Address
Checking Logic for Bridging or External
Custom Applications
Support for Module High-Impedance
In-Circuit Testing
Built-in Real-Time Error Detection
Bring-Up and Self-Test Diagnostics With
Loopback
Automatic Frame Buffer Management
Slow-Clock Low-Power Mode
Single 5-V Supply
1- m CMOS Technology
250 mA Typical Latch-Up Immunity at 25 C
ESD Protection Exceeds 2,000 V
132-Pin JEDEC Plastic Quad Flat Package
(PQ Suffix)
Operating Temperature Range
0 C to 70 C
LAN Subsystem
Token Ring or
Ethernet Physical
TMS380C26
Layer Circuitry
Memory
POST OFFICE BOX 1443
HOUSTON, TEXAS
77251–1443
TMS380C26
NETWORK COMMPROCESSOR
SPWS010A–APRIL 1992–REVISED MARCH 1993
Transmit
To
Network
Receive
Copyright
1993, Texas Instruments Incorporated
1
