LMK05318B Ultra-Low Jitter Network Synchronizer Clock With Two Frequency Domains
1 Features
One Digital Phase-Locked Loop (DPLL) With:
1
– Hitless Switching: ±50-ps Phase Transient
– Programmable Loop Bandwidth With Fastlock
– Standards-Compliant Synchronization and
Holdover Using a Low-Cost TCXO/OCXO
Two Analog Phase-Locked Loops (APLLs) With
Industry-Leading Jitter Performance:
– 50-fs RMS Jitter at 312.5 MHz (APLL1)
– 125-fs RMS Jitter at 155.52 MHz (APLL2)
Two Reference Clock Inputs
– Priority-Based Input Selection
– Digital Holdover on Loss of Reference
Eight Clock Outputs With Programmable Drivers
– Up to Six Different Output Frequencies
– AC-LVDS, AC-CML, AC-LVPECL, HCSL, and
1.8-V LVCMOS Output Formats
EEPROM / ROM for Custom Clocks on Power-Up
Flexible Configuration Options
– 1 Hz (1 PPS) to 800 MHz on Input and Output
– XO/TCXO/OCXO Input: 10 to 100 MHz
– DCO Mode: < 0.001 ppb/Step for Precise
Clock Steering (IEEE 1588 PTP Slave)
– Advanced Clock Monitoring and Status
2
– I
C or SPI Interface
PSNR: –83 dBc (50-mVpp Noise on 3.3-V Supply)
3.3-V Supply With 1.8-V, 2.5-V, or 3.3-V Outputs
Industrial Temperature Range: –40°C to +85°C
PRIREF
Differential
or LVCMOS
SECREF
XO/
TCXO/
OCXO
2
I
C/SPI
LOGIC I/Os
STATUS
1
An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,
intellectual property matters and other important disclaimers. ADVANCE INFORMATION for pre-production products; subject to
change without notice.
Product
Order
Technical
Folder
Now
Documents

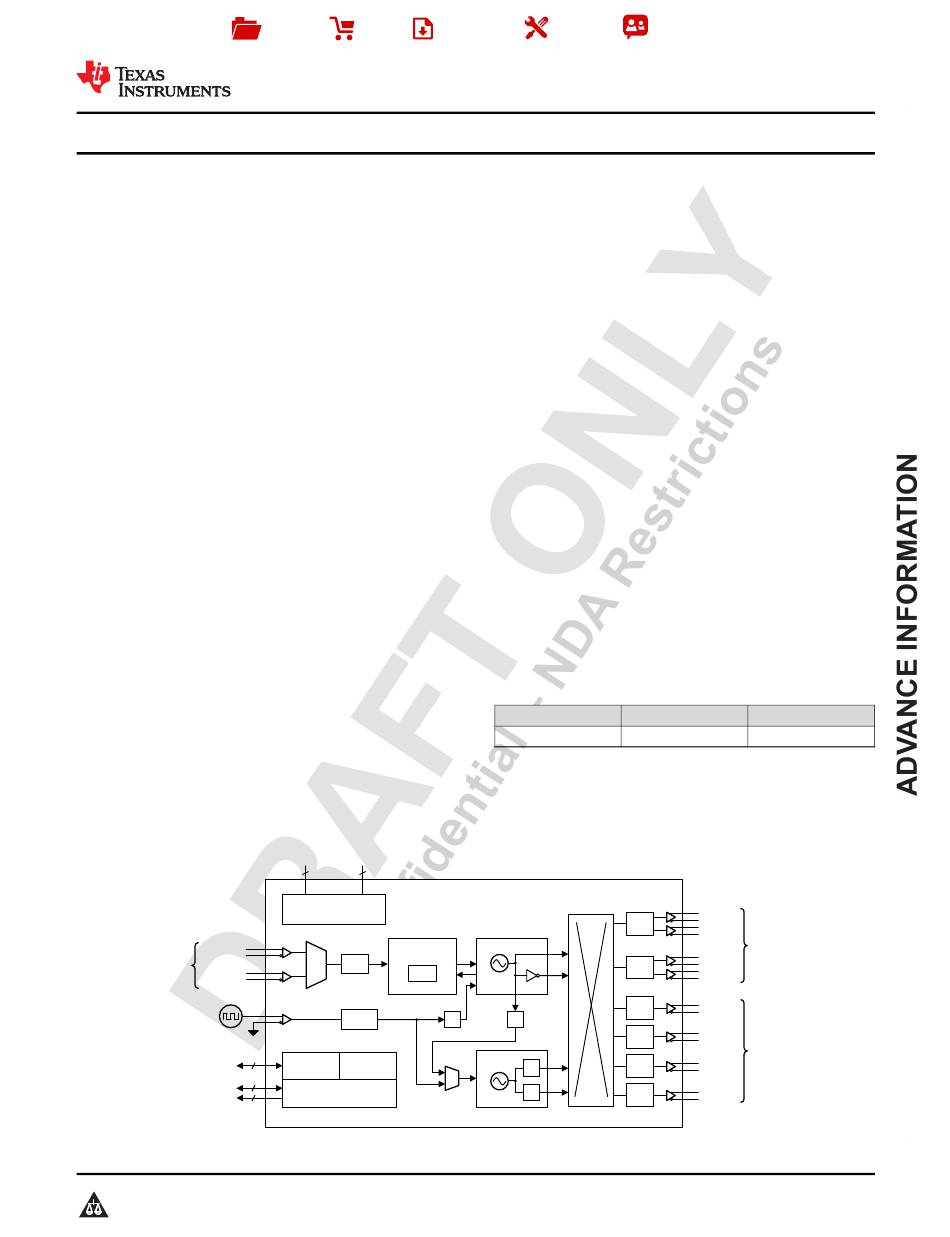

Simplified Block Diagram
VDD
VDDO
3.3 V
1.8 / 2.5 / 3.3 V
Ultra-Low Jitter
Power Conditioning
Network Synchronizer Clock
DPLL
÷R
DCO
Hitless
Switching
×1, ×2
EEPROM,
Registers
ROM
Device Control
and Status
Tools &
Software
2 Applications
SyncE (G.8262), SONET/SDH (Stratum 3/3E,
G.813, GR-1244, GR-253), IEEE 1588 PTP Slave
Clock, or Optical Transport Network (G.709)
400G Line Cards, Fabric Cards for Ethernet
Switches and Routers
Wireless Base Station (BTS), Wireless Backhaul
Test and Measurement, Medical Imaging
Jitter Cleaning, Wander Attenuation, and
Reference Clock Generation for 56G/112G PAM-4
PHYs, ASICs, FPGAs, SoCs, and Processors
3 Description
The LMK05318B is a high-performance network
synchronizer clock device that provides jitter cleaning,
clock generation, advanced clock monitoring, and
superior hitless switching performance to meet the
stringent timing requirements of communications
infrastructure and industrial applications. The ultra-
low jitter and high power supply noise rejection
(PSNR) of the device can reduce bit error rates
(BER) in high-speed serial links.
The device can generate output clocks with 50-fs
RMS jitter using TI's proprietary Bulk Acoustic Wave
(BAW) VCO technology, independent of the jitter and
frequency of the XO and reference inputs.
Device Information
PART NUMBER
LMK05318B
VQFN (48)
(1) For all available packages, see the orderable addendum at
the end of the data sheet.
Output
LMK05318
Muxes
APLL1
VCO1
÷
÷
APLL2
÷
÷
VCO2
Support &
Community
LMK05318B
SNAS801 – OCTOBER 2019
(1)
PACKAGE
BODY SIZE (NOM)
7.00 mm × 7.00 mm
OUT0
÷OD
OUT1
Differential
or HCSL
OUT2
÷OD
OUT3
÷OD
OUT4
÷OD
OUT5
Differential,
HCSL, or
1.8-V LVCMOS
÷OD
OUT6
÷OD
OUT7
