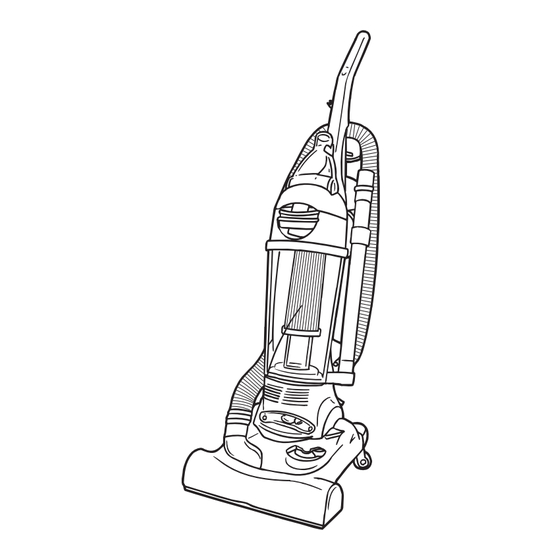

Vax Turbo Force Ultra V-006U Instruction Manual

Hide thumbs

Advertisement

Table of Contents

Vax V-006 D5 BF
7/1/05
12:13 PM
Page 1
Vax Careline:
0870 6061248
www.vax.co.uk
BAGLESS UPRIGHT VACUUM CLEANER
Vax Model Number: V-006U
Please read carefully before using
BAGLESS UPRIGHT VACUUM CLEANER
this cleaner. Always fully extend
the mains cable before use.
Vax Model Number: V-006/V-006B/V-006N

Instruction Manual

Advertisement

Table of Contents
loading

Related Manuals for Vax Turbo Force Ultra V-006U

Summary of Contents for Vax Turbo Force Ultra V-006U

  • Page 1: Instruction Manual

    12:13 PM Page 1 Vax Careline: 0870 6061248 www.vax.co.uk BAGLESS UPRIGHT VACUUM CLEANER Vax Model Number: V-006U Please read carefully before using BAGLESS UPRIGHT VACUUM CLEANER this cleaner. Always fully extend the mains cable before use. Vax Model Number: V-006/V-006B/V-006N...
  • Page 2 22 On/off pedal 8 Clear dirt path window 23 Handle release pedal 9 Handle 24 Swivel wheels 10 Stair tool (V-006U only) 25 Long power cord 11 Crevice Tool (inside extension tube) 26 Carry handle 12 Extension tube 27 Cord wrap with quick cord release...

  • Page 3: Safety Information

    (chlorine bleach, ammonia, drain cleaner, etc). Soft-start 14. Do not vacuum up hard or sharp objects such as IMPORTANT: Model V-006U is fitted with a sift- glass, nails, screws, coins, etc. start system. When the unit is switched on, the 15.

  • Page 4: How To Assemble

    Vax V-006 D5 BF 7/1/05 12:13 PM Page 4 How to Assemble 3. How to Assemble IMPORTANT: Always remove the power plug from the electrical outlet before assembling or before removing accessories. Tool required: Phillips screwdriver. Slide the back panel onto the base (Fig.3/1).
  • Page 5 Insert the Clip the TurboTool® onto the front of the stair cleaning tool into the top of the extension TurboTool® caddy (Fig.3/9). tube (Fig.3/12B). (V-006U only) Fig.3/9 Fig.3/12A Fig.3/12B 13. Align the slots on the lid with the tabs on the dirt 10.

  • Page 6: How To Operate

    Fig.3/14 Vax recommend that the brushbar height adjust is turned to its highest position when using the 15. To secure the dirt container push the top in place, tools.

  • Page 7: Carry Handle

    Crevice tool: for crevices, corners and cracks etc. Dusting brush: for delicate surfaces and skirting board. Stair tool ( V-006U only): for stairs, upholstery and curtains. Twist the head tool for best contact with stair treads and risers (Fig.5/4). Fig.4/5 5.
  • Page 8 Vax V-006 D5 BF 7/1/05 12:13 PM Page 8 Dirt Container & Filter: Removal & Replacement 6. Align slots on the lid with the tabs on the dirt Remove the dirt container lid by turning it anti- container (Fig.6/6A). Push the lid down and twist clockwise (Fig.6/2).

  • Page 9: Light Bulb: Removal & Replacement

    Vax V-006 D5 BF 7/1/05 12:13 PM Page 9 Rotating Brushbar & Filter: Removal & Replacement/Light Bulb Removal & Replacement With the new belt in place, pull and slide the brushbar into the nozzle, making sure that the end caps are in the correct orientation (Fig.7/6A).

  • Page 10: Clearing Blockages

    Vax V-006 D5 BF 7/1/05 12:13 PM Page 10 Light Bulb: Removal & Replacement/Clearing Blockages Undo the hose from the back panel dirt tube. Remove any obstruction (Fig.9/2). Fig.8/1 Pull the bulb out of the socket gently. Do Not twist the bulb. Gently push the replacement bulb Fig.9/2...
  • Page 11 Vax V-006 D5 BF 7/1/05 12:13 PM Page 11 Clearing Blockages Pivot lowering housing and remove any blockage (Fig.9/6). Fig.9/6 To re-assemble, ensure that the tabs are engaged. Pivot the lower housing closed and rotate the locking ring 180º (Fig.9/7).

  • Page 12: Troubleshooting

    Vax V-006 D5 BF 7/1/05 12:13 PM Page 12 Troubleshooting 10. Troubleshooting WARNING: TO REDUCE RISK OF PERSONAL INJURY, UNPLUG VACUUM CLEANER BEFORE SERVICING PROBLEM: Cleaner won’t run Cause: Not properly plugged into electrical outlet. Solution: Plug in firmly. Cause: No electricity in electrical outlet.

  • Page 13: Technical Specification

    Monday-Friday 9.00am to 5.00pm. An answerphone is available out of these hours. Any queries or concerns about using the Vax, call the Vax Careline. Calls are charged at the UK national rate. Please make a note of the serial number and model number of the carpet cleaner before calling.
  • Page 14 Vax V-006 D5 BF 7/1/05 12:13 PM Page 14 This page has been intentionally left blank.
  • Page 15 Vax V-006 D5 BF 7/1/05 12:13 PM Page 15 This page has been intentionally left blank.
  • Page 16 12:13 PM Page 16 EEC STATEMENT OF COMPLIANCE Manufacturer/EEC importer: Vax Limited, hereby on our own responsibility, declare that the V-006 series Bagless Upright Vacuum Cleaners are manufactured in compliance with the following Directives: Safety: 73/23/EEC Low Voltage Directive EMC: 89/336/EEC Electromagnetic Compatibility Directive Waste electrical products should not be disposed of with household waste.
