BOILER INSTALLATION SEQUENCE
5
240/242/280/282/615/620/624/628/824/828 Pro/Plus
240/242/280/282/824/828 Pro/Plus

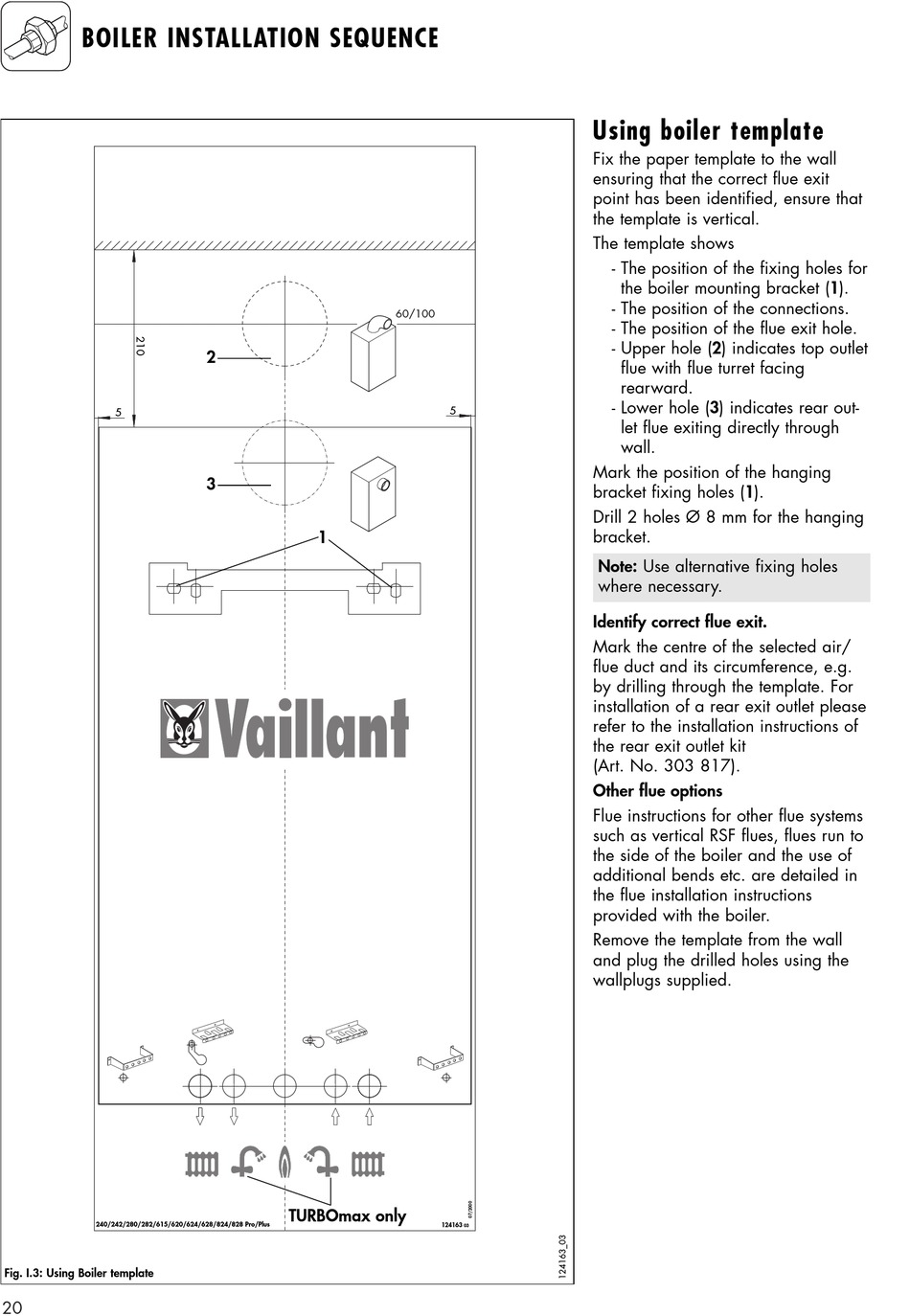

Fig. I.3: Using Boiler template
20
2
3
1
TURBOmax only
60/100
5
124163
03

Using boiler template

Fix the paper template to the wall
ensuring that the correct flue exit
point has been identified, ensure that
the template is vertical.
The template shows
- The position of the fixing holes for
the boiler mounting bracket (1).
- The position of the connections.
- The position of the flue exit hole.
- Upper hole (2) indicates top outlet
flue with flue turret facing
rearward.
- Lower hole (3) indicates rear out-
let flue exiting directly through
wall.
Mark the position of the hanging
bracket fixing holes (1).
Drill 2 holes Ø 8 mm for the hanging
bracket.
Note: Use alternative fixing holes
where necessary.
Identify correct flue exit.
Mark the centre of the selected air/
flue duct and its circumference, e.g.
by drilling through the template. For
installation of a rear exit outlet please
refer to the installation instructions of
the rear exit outlet kit
(Art. No. 303 817).
Other flue options
Flue instructions for other flue systems
such as vertical RSF flues, flues run to
the side of the boiler and the use of
additional bends etc. are detailed in
the flue installation instructions
provided with the boiler.
Remove the template from the wall
and plug the drilled holes using the
wallplugs supplied.
