Removing Boiler Casing - Vaillant TURBOmax Plus SERIES Instructions For Installation And Servicing

BOILER INSTALLATION SEQUENCE

Removing boiler casing

90 90

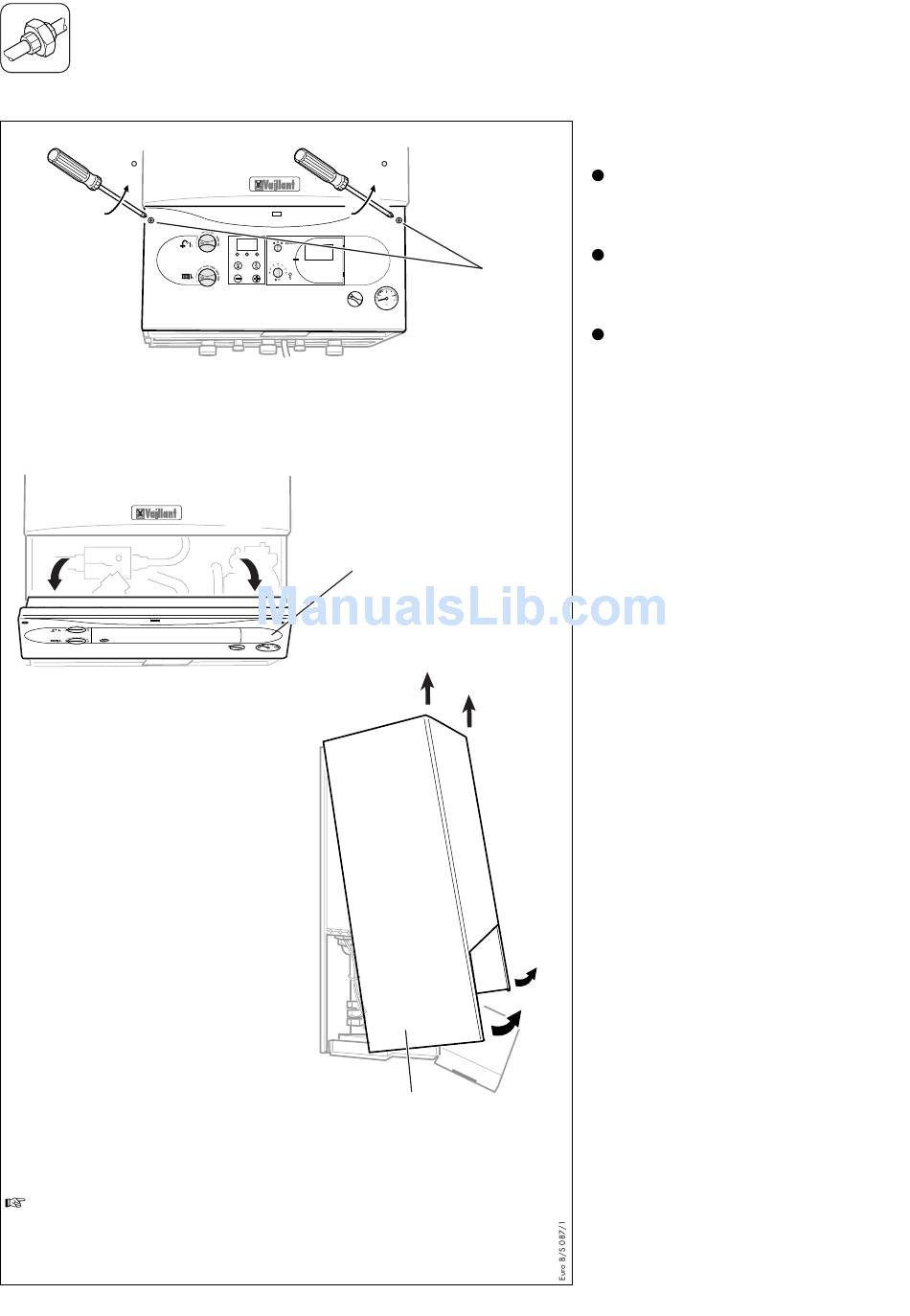

Turn both securing fasteners (1)
anti-clockwise by 90° to release
control panel (2).
Pull the case (3) forward at the
1
bottom to disengage from the
VRC-VC
securing clips.
I
0
Lift the case slightly to clear the top
locations and pull forward to
remove.
2
I
0
3
picture shows TURBOmax Plus
Fig. I.5: Remove of boiler casing
