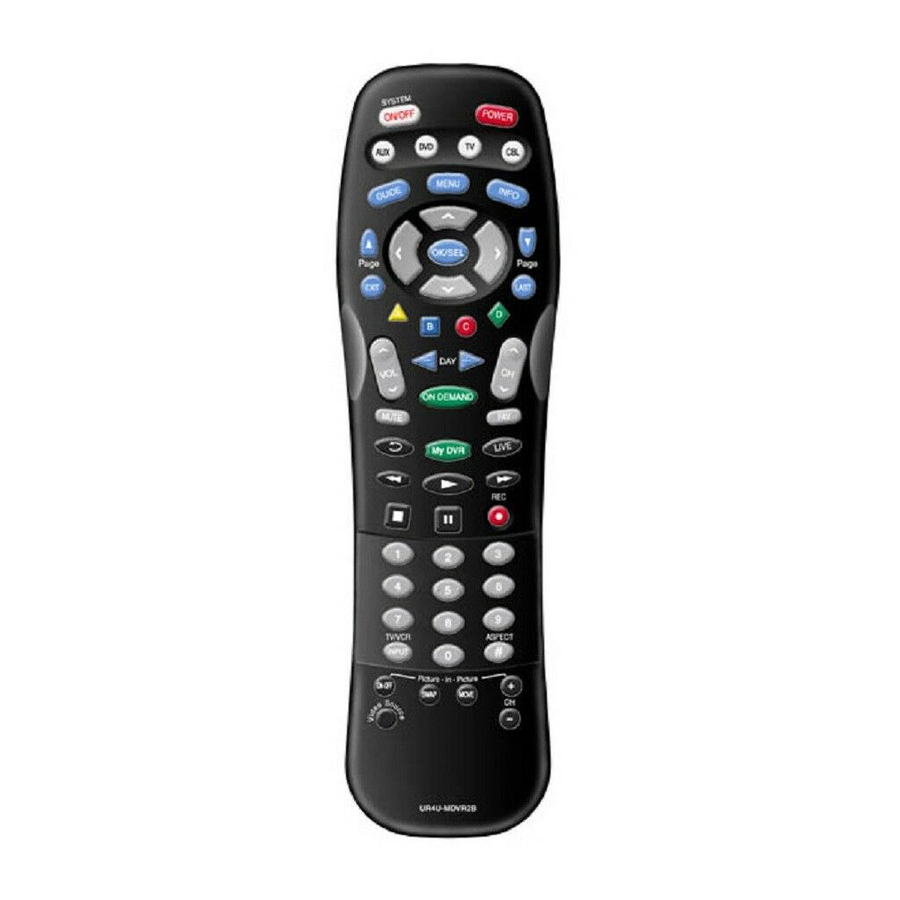

Universal Remote Control UR4U-MDVR2 Operating Instructions

1
Introduction
Operating Instructions
This remote control is designed to operate all
For 4-Function
Motorola and Scientific Atlanta digital set top
boxes (including HD and DVR), plus the
Cable Remote Control
majority of TVs, VCRs, DVDs and AUDIO
equipment on the market as shown below.
CABLE : Cable Converters
DVD : DVDs, TV/DVDs, VCRs and TV/VCRs
UR4U-MDVR2 AUX : Audio Receivers and DVRs, etc.
2
Replacing Batteries
Before you program or operate this remote
control, you must first install two new AA Alkaline
batteries.
STEP1 Remove the battery compartment cover
on the back of your remote control.
STEP2 Check battery polarity carefully, and
install the batteries as shown in the
illustration below.
STEP3 Replace the battery compartment cover.
3
Operations
DEFAULT STATUS:
Component Default: CABLE
Channel Default: CABLE channel +/- and
numbers operate through the CABLE box.
You have the option of controlling channel +/- and
numbers through the TV, VCR or DVD. Refer
to section H for programming steps.
Volume Default: CABLE volume +/- and mute
operate through the TV. You have the option
Universal Remote Control, Inc.
of controlling volume through the Cable box,
VCR or DVD. Refer to section I for
www.universalremote.com
OCE-0053B REV 19 (01/10/13) programming steps.
4
Button Functions
G
TV : Televisions
5
Programming the Remote Control
There are three ways you can program your remote control:
* Quick Set-Up Method
* The Pre-Programmed 3-Digit Code Method
* The Auto-Search Method
The Quick Set-Up Method is a unique new feature that enables the fastest and easiest set-up by using
one-digit codes for up to 10 major brands for each component.
The Pre-Programmed Code Method allows you to setup all the buttons at once by entering 3-digit code
numbers that correspond to a particular Component's manufacturer/brand, so it's the fastest and
easiest of the two methods. (Code Tables are on the backside of this Instruction Sheet.) The Auto-
Search Method scans through all the codes in the remote control, one at a time.
IMPORTANT SETUP NOTES:
This pertains to all programming steps. When you are in setup mode in each component, a component
LED will light up for 30 seconds. If you do not press a button within 30 seconds, the LED light will turn off
and exit setup mode and you will need to start over.
When programming a combo unit, program as a VCR or DVD first.
STEP3 Point the remote control toward the
A. Quick Set-Up Method
Component and enter the 3-digit code
STEP1 Turn on the component you want to program.
number assigned to your brand.
To program your TV, turn on the TV.
*Note : If the 3-digit code number you just entered
STEP2 Point the remote control at the component.
is correct, the Component will turn Off. If
it did not turn Off, continue entering code
STEP3 Press and hold the [DEVICE] key for 5
numbers listed for that brand until the
seconds until the Device LED will blink
Component turns Off.
once and stays on. Continue to hold the
[DEVICE] key and press the number key
STEP4 After you've entered the correct code
assigned to your brand in the Quick Set-up
number and the Component has turned
Code Table. The component should turn
Off, press the [POWER] button to turn the
off as soon as the number key is pressed.
Component back On. Now it's time to test
(If it does not turn off, release the [DEVICE]
the VOLUME and MUTE buttons for the
key and use the Pre-Programmed 3-Digit
TV (or PLAY and STOP buttons for VCR
code Method or Scanning Method.)
and DVD) to make sure they all work. If
STEP4 Release the [DEVICE] key to save the code.
any of the functions do not work as they
The Device LED will blink twice to confirm
should, repeat from STEP 3 using the next
that the code is stored.
3-digit code number listed for that brand.
Repeat the steps above for all components (TV,
STEP5 Once you have found the correct 3-digit
DVD, AUX).
code, save it by pressing the same
[COMPONENT] button one more time.
B. Quick Set-up Code Tables
The Component LED light will blink twice
TV
to confirm that the code was successfully
Quick Number Manufacturer/Brand stored.
0 SANYO
Now, program the rest of your Components by
1 SONY
2 SAMSUNG
repeating STEPS 1-5.
3 LG
4 TOSHIBA
5 PANASONIC *Note : If the Pre-Programmed Method did not
6 PHILIPS
work, or if the Code Tables do not list
7 HITACHI
8 SHARP
your Component brand, use the Auto-
9 VIZIO
Search Method as explained in Section D.
DVD
Quick Number Manufacturer/Brand
D. Auto-Search Method
0 HITACHI
1 SONY
STEP1 Turn on the Component you want to
2 PHILIPS
3 SAMSUNG
program (TV, VCR, DVD or AUX).
4 PHILIPS MAGNAVOX
5 PANASONIC
STEP2 Press the [COMPONENT] button (TV, DVD
6 LG
7 JVC
or AUX) to be programmed and [OK/SEL]
8 DENON
9 PIONEER button simultaneously for 3 seconds. The
Component LED will light for 30 seconds
AUX
indicating the unit is ready to be
Quick Number Manufacturer/Brand
programmed.
0 BOSE
1 HP STEP3 Point the remote toward the Component
2 APPLE/iPod
and press the [CH5] or [CH6] button
3 APPLE/iPod
4 MICROSOFT / XBOX
one step at a time or keep it pressed. The
5 SONY / PS2
6 LUTRON remote will emit a series of ON/OFF
7 X-10
commands. Release the [CH5] or [CH6]
8 ZINWELL
9 MICROSOFT / XBOX
button as soon as the Component turns
Off.
C. Pre-Programmed 3-Digit Code
STEP4 Test functions. (Same as for 3-Digit Code
Method
Programming Method - Section C). If any of
the functions do not work as they should,
STEP1 Turn on the Component you want to
repeat from STEP 3 using [CH5] or [CH6]
program (TV, VCR, DVD or AUX).
buttons to find the correct code.
STEP2 Press the [COMPONENT] button (TV, DVD
STEP5 Save the code. (Same as for 3-Digit Code
or AUX) to be programmed and [OK/SEL]
Programming Method - Section C).
button simultaneously for 3 seconds. The
Now, repeat the Auto-Search Method for those
Component LED will light for 30 seconds
Components you could not program earlier with the
indicating the unit is ready to be
Pre-Programmed Method.
programmed.
E. Finding a Component Button's STEP1 Press the [CBL] button.
Setup Code Number
STEP2 Press the [SYSTEM ON/OFF] button and the
[OK/SEL] button simultaneously for 3 seconds.
If you used the Auto-Search Method to program a
The [CBL] Component LED will light for 30
Component, you may not know what the correct code
seconds.
number is. Here is a way for you to identify the code
STEP3 Press the first [COMPONENT] button you want
number, so you can record it for future reference.
to store in the [SYSTEM ON/OFF] button and
STEP1 Press the [COMPONENT] button (TV, DVD or
then the [POWER] button. Repeat this for
AUX) you want to verify and the [OK/SEL] button
other Components until you have stored all the
simultaneously for 3 seconds. The Component
desired power commands into the [SYSTEM
LED will light for 30 seconds.
ON/OFF] button.
STEP2 Press the [INFO] button and count the number
STEP4 Press the [CH5] button to save the power
of times the Component LED light blinks. This
commands you stored. The [CBL] button will
number indicates the first digit of the code,
blink twice to confirm the commands have
followed by the second and third, each
been saved.
separated by a one second pause when the
LED will turn off.
H. Programming Channel Control
*Note : 10 blinks represents the number zero.
You can program the channel controls (Channel Up,
Example : One blink, (pause), eight blinks, (pause) and
Channel Down, Last and Numbers) from one Component
three blinks, indicates code number 183.
to operate in another Component mode. Default channel
control settings on the remote control are as follows:
F. AUX Function: Programming a 4 th
Component CBL : CBL
DVD : DVD
You can take advantage of the AUX function to program
a 4 th Component such as a second TV, VCR, DVD or
If you wish to operate the TV channel control in TV
Audio Component.
mode, use the following steps.
STEP1 Turn on the 4 th Component you want to
STEP1 Press the [TV] button and the [OK/SEL] button
program (TV, VCR, DVD or Audio).
simultaneously for 3 seconds. The [TV]
STEP2 Press the [AUX] button and the [OK/SEL] Component LED will light for 30 seconds.
button simultaneously for 3 seconds.The
STEP2 Press the [VOL 6] button.
[AUX] Component LED will light for 30
seconds.
STEP3 Press the [TV] button again.
The Component LED will blink twice to confirm
STEP3 Press the [COMPONENT] button you want to
setup. Point the remote control toward the the programming.
Component and enter the 3-digit code number
To return to original state:
assigned to your brand.
If you wish to restore the CABLE channel control in
*Note : If the 3-digit code number you just entered is
TV mode, repeat the above steps but press [CBL] in
the correct number, the Component will turn
STEP3.
Off. If it did not turn Off, continue entering
code numbers listed for that brand until the
I. Programming Volume Control
Component turns Off
STEP4 Test functions. (Same as for 3-Digit Code You can program the volume controls (Volume Up,
Programming Method - Section C). If any of
Volume Down and Mute) from one Component to
the functions do not work as they should, you
operate in another Component mode. Default volume
need to find a new code.
control settings on the remote control are as follows:
STEP5 Once you have found the correct 3-digit code,
CBL : TV
save it by pressing the [AUX] button one more
DVD : TV
time. The Component LED light will blink twice
to confirm the code was stored. Now when
If you wish to operate the CBL volume control in CBL
you press the AUX button, all the buttons will
mode, use the following steps.
work with that 4 th Component.
STEP1 Press the [CBL] button and the [OK/SEL]
button simultaneously for 3 seconds. The
G. Programming the System On/Off Button
[CBL] Component LED will light for 30
seconds.
This allows you to program the System On/Off button so
it can send up to four power On/Off commands with one
STEP2 Press the [VOL 5] button.
button press.
T V : CBL
AUX : AUX
T V : TV
AUX : AUX
