Universal Remote Control UR4-EXP-CHD1 Operating Instructions

OCE-0005G(60*216)_03 2004.3.16 2:35 PM 페이지1
Operating Instructions 1 Introduction
The remote control is designed to operate the
For Charter
Scientific-Atlanta Explorer and Motorola DCT
set top boxes. You can also control TV's, VCR's
Communications 4-in-1
DVD's and Audio equipment.
Remote Control
CABLE : Cable Converters
TV : Televisions VCR : VCRs and DVDs
AUX : Audio Receivers, DMX, DCR, etc.
UR4-EXP-CHD1
2 Replacing Batteries
Before you program or operate the remote
control, you must install two new AA alkaline
batteries.
STEP1 Remove the battery compartment cover
on the back of your remote control.
STEP2 Check battery polarity carefully, and
install the batteries as shown in the
illustration below.
STEP3 Replace the battery compartment cover.
4 Operations
Default State:
Device Default set to Cable for Motorola DCT series.
For SA Explorer series re-program CBL to
code 001.
Volume Default: TV volume and mute through
the TV, with the option of controlling volume
and mute through the Cable box or Audio. Refer
to section G for programming the volume and
mute through your Cable box or Audio.
Channel Default: CABLE channel and number
keys through the CABLE, with the option of
Universal Remote Control, Inc.
controlling channel and number keys through
the TV or VCR.
www.universalremote.com
Refer to section F for programming the channel
OCE-0005G Rev 03(03/09/04)
and number keys through your TV or VCR.

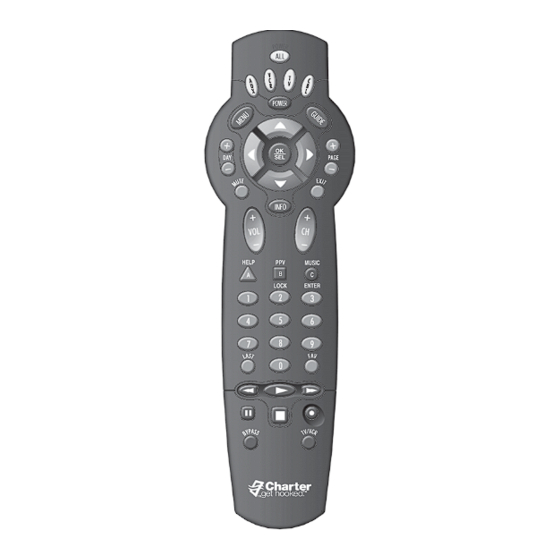

3 Button Functions
5 Programming the Remote Control
A. Three-Digit Code Programming Method.
The remote control can be programmed by entering in a three-digit code number that
corresponds to a particular manufacturer or brand of Audio/Video equipment. The three-digit
code numbers are listed in the code table of the instruction manual.
STEP1 Turn on the equipment you wish to program. (TV, VCR, DVD or AUX)
STEP2 Press the [SELECT] button and [MUTE] button simultaneously for 3 seconds. The
device LED's blink in sequence (TV-VCR-AUX-CBL-TV)
STEP3 Release the buttons when the desired device button is blinking (the device LED will
then remain lit).
*Tip : The device LED will stay lit for 20 seconds. The next step must be entered while the LED
is on.
STEP4 Point the remote control toward the
*Tip : You can verify that you selected the
equipment and enter the three-digit correct code by pressing the
code number assigned to your
[POWER]button. The equipment
brand from the code tables. should either turn on or turn off.
*Tip : The equipment will turn off when the
STEP5 Press the [SELECT] button to store
correct three-digit code number has the code. The device LED will blink
been entered. You can verify that you
twice to confirm that the code has
selected the correct code by pressing been stored.
the [POWER] button. The equipment
should turn on or turn off.
C. To Find the Three Digit Code
*Note : If there is more than one three-digit
Number That was Stored in the
number listed for your brand, try
Device.
one code number at a time until
your equipment turns off.
STEP1 Press the [SELECT] button and
[MUTE] button simultaneously for 3
STEP5 Store the three-digit code number
seconds. The device LED's blink in
by pressing the [SELECT] button.
sequence (TV-VCR-AUX-CBL-TV)
The device LED will blink twice to
confirm that the code has been
STEP2 Release the buttons when the
stored.
desired device button is blinking
(the device LED will then remain lit).
*Note : Try all the functions on the remote
control. If any of the functions do
*Tip : The device LED will stay lit for 20
not work as they should, repeat
seconds. The next step must be
from Step 2 using the next three-
entered while the LED is on.
digit code number from the same
brand list. STEP3 Press the [INFO] button.
The device LED will blink number of
times indicating the number of each
B. Auto Search Method.
digit of the code number. Each digit
is separated by a 1 second interval
If the three-digit code numbers assigned to
of the LED being turned off.
your brand do not turn off your equipment or
the code tables do not list your brand, you
Example : One blink, three blinks and eight
can use the Auto Search Method to find the
blinks with an interval of 1
correct three-digit code number for your
second of LED being turned off,
equipment by the following steps:
indicates the code number 138.
STEP1 Turn on the equipment you wish to
*Note : Ten blinks is equal to the number 0.
program. (TV, VCR, DVD or AUX)
STEP2 Press the [SELECT] button and
D. Programming a Second TV to AUX
[MUTE] button simultaneously for 3
Mode.
seconds. The device LED's blink in
sequence (TV-VCR-AUX-CBL-TV)
STEP1 Turn on the TV you wish to program.
STEP3 Release the buttons when the
STEP2 Press the [SELECT] button and
desired device button is blinking
[MUTE] button simultaneously for 3
(the device LED will then remain lit).
seconds. The device LED's blink in
sequence (TV-VCR-AUX-CBL-TV)
*Tip : The device LED will stay lit for 20
seconds. The next step must be
STEP3 Release the buttons when the [AUX]
entered while LED is on.
device LED is blinking (the [AUX]
device LED will then remain lit).
STEP4 Press the [CH+] or [CH-] button one
at a time or keep it pressed. The STEP4 Hold down the [MUTE] button. The
remote will emit a series of power
device LED's will begin blinking in
on/off commands. Release the sequence again. Release the
[CH+] or [CH-] button as soon as the [MUTE] button when the [TV] device
equipment turns off.
LED is blinking (the [TV] device LED
will then remain lit).
*Tip : The device LED will stay lit for 20 If you wish to store the TV channel control
seconds. The next step must be in TV mode, use the following steps.
entered while the LED is on.
STEP1 Press the [SELECT] button and
STEP5 Point the remote control toward the
[MUTE] button simultaneously for 3
equipment and enter the three-digit
seconds. The device LED's blink in
code number assigned to your TV
sequence (TV-VCR-AUX-CBL-TV)
brand from the code tables.
STEP2 Release the buttons when the [TV]
*Tip : The equipment will turn off when the
device LED is blinking (the [TV]
correct three-digit code number has
device LED will then remain lit).
been entered. You can verify that you
selected the correct code by pressing
*Tip : The device LED will stay lit for 20
the [POWER] button. The equipment
seconds. The next step must be
should turn on or turn off.
entered while the LED is on.
STEP6 Store the three-digit code number
STEP3 Press the [VOL-] button.
by pressing the [SELECT] button.
The [AUX] device LED will blink STEP4 Press the [TV] button.
twice to confirm that the code has
The device LED will blink twice to
been stored. confirm the programming.
To return to original state:
E. Programming the Power ALL
If you wish to restore the CABLE channel
button
control in TV mode, repeat the above steps
by pressing [CBL] in STEP4.
This is designed to program the Power ALL
button so that it can send out up to four
power on/off commands with one button
G. Programming Volume Control.
press.
By following the steps below, the you can
STEP1 Press the [CBL] button.
program the volume controls (Volume UP,
Volume Down and MUTE) from one device
STEP2 Press the [POWER ALL] button and
to operate in another device mode. The
the [SELECT] button simultaneously
default volume control settings on the
for 3 seconds. The [CBL] button will
turn on for 20 seconds. remote control is as follows:
STEP3 Press the [DEVICE] button and the CBL : TV T V : TV
[POWER] button you wish to store
VCR : TV AUX : AUX
in the POWER ALL button and
repeat this until you stored all the If you wish to store the CBL volume control
power commands into the Power in CBL mode, use the following steps.
ALL button.
STEP1 Press the [SELECT] button and
STEP4 Press the [CH+] button to save the
[MUTE] button simultaneously for 3
power commands you stored.
seconds. The device LED's blink in
The[CBL] button will blink twice to
sequence (TV-VCR-AUX-CBL-TV)
confirm the saving.
STEP2 Release the buttons when the
[CBL] device LED is blinking (the
F. Programming Channel Control.
[CBL] device LED will then remain
lit).
By following the steps below, the you can
program the channel controls (channel UP, *Tip : The device LED will stay lit for 20
and channel DOWN) from one device to
seconds. The next step must be
operate in another device mode. The default entered while the LED is on.
channel control settings on the remote
STEP3 Press the [VOL+] button.
control is as follows:
CBL : CBL T V : CBL STEP4 Press the [CBL] button. The device
LED will blink twice to confirm the
VCR : VCR AUX : AUX
programming.
