Bose 2150 Installer's Manual

Commercial power amplifier
Hide thumbs Also See for 2150:
Table of Contents

Advertisement

Quick Links

®
Bose

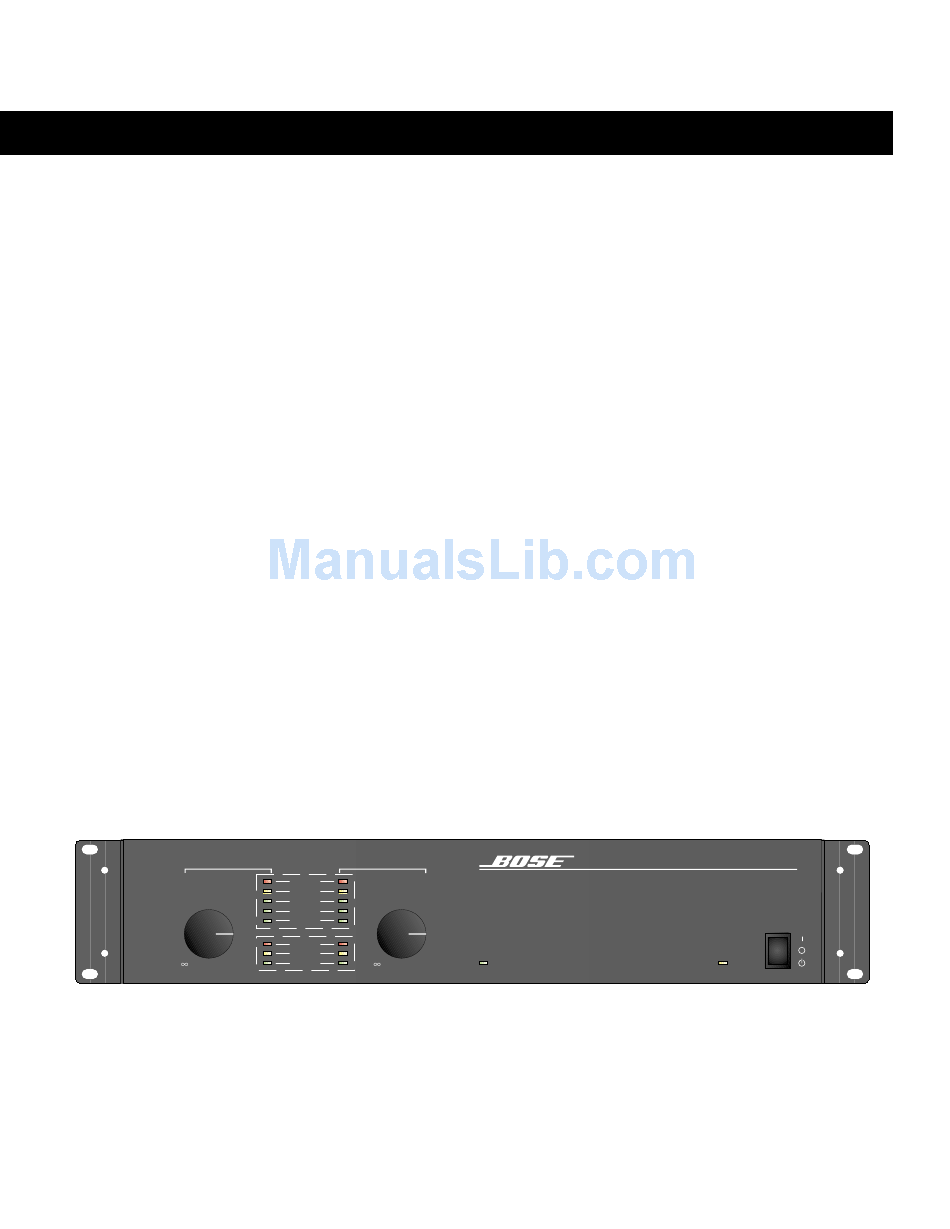

Model 2150 Commercial Power Amplifier
Ch 1
Ch 2
Clip
Clip
-6dB
-6dB
-12dB
-12dB
-20dB
-20dB
Signal
Signal
Thermal
Thermal
Protect
Protect
0dB
Ready
Ready
Installer's Guide
Guía de instalación
Notice d'installation
0dB
Network
M 2150
Commercial Power Amplifier
Power
On
Off
Standby
June 21, 2002
AM264080_00_V.pdf
Bose Corporation

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2150 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Bose 2150

Summary of Contents for Bose 2150

  • Page 1 ® Bose Model 2150 Commercial Power Amplifier Installer’s Guide Guía de instalación Notice d’installation M 2150 Ch 1 Ch 2 Commercial Power Amplifier Clip Clip -6dB -6dB -12dB -12dB -20dB -20dB Signal Signal Power Thermal Thermal Protect Protect Ready Ready...

  • Page 2: Safety Information

    REFER SERVICING TO QUALIFIED PERSONNEL. These CAUTION marks are located on the back of the Model 2150 commercial power amplifier. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated dangerous voltage within the system enclosure that may be of sufficient magnitude to constitute a risk of electric shock.

  • Page 3: Table Of Contents

    Bose Corporation ................... inside back cover Please read this installer’s guide The Model 2150 commercial power amplifier is carefully engineered to provide superior sound quality. This guide will help you set up and operate your system properly. Record your serial number here Model 2150 commercial power amplifier: __________________________________________ Date of purchase _______________________ Retailer’s name _______________________...

  • Page 4: Before You Begin

    The Model 2150 amplifier is rated at 150 watts per channel into 4 , 8 , 25V, 35V, 50V, 70V or 100V. In bridged mono operation, it is rated at 300 watts.

  • Page 5: Using The Amplifier

    3.0 Using The Amplifiers 3.1 Using the Bose Model 2150 commercial power ® amplifier Once you have installed and wired the amplifier, follow these tips to get the most from it: • Verify that all switches (STEREO/MONO, CLIPPING LIMITER, EQ BI-AMP/FULL RANGE AND LEVEL DEFEAT) are set to the mode you want.

  • Page 6: Thermal Considerations

    Model 2150 amplifiers may be stacked directly on top of each other without spacer ® panels. If a Model 2150 amplifier is used with other amplifiers, be sure the heat output from the amplifier does not interfere with the adequate ventilation of the others.

  • Page 7: Operation

    4.0 Operation 4.1 Front Panel M 2150 Ch 1 Ch 2 Commercial Power Amplifier Clip Clip -6dB -6dB -12dB -12dB -20dB -20dB Signal Signal Power Thermal Thermal Protect Protect Ready Ready Network Standby Level Controls Network Activity Indicator Removable Rack Ears...

  • Page 8: Level Indicators

    4.0 Operation 4.1 Front Panel (Cont.) M 2150 Ch 1 Ch 2 Commercial Power Amplifier Clip Clip -6dB -6dB -12dB -12dB -20dB -20dB Signal Signal Power Thermal Thermal Protect Protect Ready Ready Network Standby Level Controls Network Activity Indicator Removable Rack Ears...
  • Page 9 4.0 Operation 4.1 Front Panel (Cont.) M 2150 Ch 1 Ch 2 Commercial Power Amplifier Clip Clip -6dB -6dB -12dB -12dB -20dB -20dB Signal Signal Power Thermal Thermal Protect Protect Ready Ready Network Standby Level Controls Network Activity Indicator Removable Rack Ears...

  • Page 10: Rear Panel

    Through the use of the Bose ® input module (the standard module provided with the ampli- fier) and EQ cards, Bose Model 2150 amplifier can provide active equalization for Bose Model 8, Model 32, Model 32SE, 402 , 502 A, 502B and 802 Series II professional loud- ®...
  • Page 11 With EQ cards installed in the Model 2150 amplifier, the EQ OUT (output) of the amplifier can be connected to the line level inputs of additional devices driving the same type of Bose loudspeakers (e.g. 402 loudspeakers).

  • Page 12: Speaker Outputs

    600W EQUALIZATION SND RCV COM CH2 CH1 +5V J20018292 FX CH 2 FX CH 1 ® SERIAL No.: Model 2150 D.O.M.: SEND RECV SEND RECV EQ. OUT BOSE CORPORATION FRAMINGHAM, MA 01701-9168 U.S.A. MADE IN U.S.A. OF DOMESTIC AND FOREIGN COMPONENTS.
  • Page 13 SEQUENCE EQUALIZATION COM CH2 CH1 +5V SND RCV J20018292 FX CH 2 FX CH 1 SERIAL No.: ® Model 2150 D.O.M.: SEND RECV SEND RECV EQ. OUT BOSE CORPORATION FRAMINGHAM, MA 01701-9168 U.S.A. MADE IN U.S.A. OF DOMESTIC AND FOREIGN COMPONENTS.
  • Page 14 SEQUENCE. The three termi- nals are from left to right and labeled ground, SND, and RCV (see Figure 6). The sequence feature can be used to turn on or off one or more Bose ®...
  • Page 15 This will avoid large transient thumps being passed to the loudspeakers attached to the system. When using multiple amplifiers that utilize the SEQUENCE feature of the Bose 2150, and ®...
  • Page 16 Let the rack rail be your chassis ground path. Using other amplifiers in the power sequence: The Bose Models 1600 VI and 1800 VI can be used together with the Bose Model 2150 in a sequenced configuration. However, as the sequence terminal on the Bose Model 1600 VI and 1800 VI has no chassis ®...
  • Page 17 SEQUENCE EQUALIZATION SND RCV COM CH2 CH1 +5V J20018292 FX CH 2 FX CH 1 SERIAL No.: ® Model 2150 D.O.M.: SEND RECV SEND RECV EQ. OUT BOSE CORPORATION FRAMINGHAM, MA 01701-9168 U.S.A. MADE IN U.S.A. OF DOMESTIC AND FOREIGN COMPONENTS.
  • Page 18 SEQUENCE EQUALIZATION COM CH2 CH1 +5V SND RCV J20018292 FX CH 1 FX CH 2 ® SERIAL No.: Model 2150 D.O.M.: SEND RECV SEND RECV EQ. OUT BOSE CORPORATION FRAMINGHAM, MA 01701-9168 U.S.A. MADE IN U.S.A. OF DOMESTIC AND FOREIGN COMPONENTS.

  • Page 19: Installation

    5.0 Installation 5.1 Installing Bose EQ Cards ® If your Bose loudspeakers require active equalization, follow these steps to install them in the Model 2150: 1. Turn the power switch to the OFF position. Figure 13 Turning the power switch off...
  • Page 20 5.1 Installing Bose EQ Cards (cont.) ® If your Bose loudspeakers require active equalization, follow these steps to install them in the Model 2150: 5. Install EQ card into the desired channel. Note: If you are using the amplifier in dual mono or bridged mono mode, you must install the equalizer card in Channel 2.
  • Page 21 5.0 Installation 5.1 Installing Bose EQ Cards (cont.) ® If your Bose loudspeakers require active equalization, follow these steps to install them in the Model 2150: 8. Reconnect the ribbon cable. Figure 20 Reconnecting ribbon cables Use Class 2 Wiring For bridged operation.
  • Page 22 5.1 Installing Bose EQ Cards (cont.) ® If your Bose loudspeakers require active equalization, follow these steps to install them in the Model 2150: 11. Connect all input connections to the amplifier, and line cord to the wall. Figure 23...

  • Page 23: Input Wiring

    5.0 Installation 5.2 Input wiring You can use ⁄ " phone jacks, XLR connectors, or quick connect terminal block connectors for the input signal with either unbalanced 2-conductor or balanced 3-conductor cables. Use shielded coaxial cable to conduct the signal from the source (mixer, equalizer, CD player) to the amplifier.

  • Page 24: Unbalanced Operation

    5.0 Installation 5.2.1 Balanced operation (cont.) For the quick connect terminal block, use the female connector provided. Pin 3 carries the + (hot, non-inverting) side of the signal. Pin 2 carries the – (low, inverting) side of the signal. Pin 1 is ground (see Figure 27). When using the standard input module for either amplifier, you can reverse the polarity of the balanced inputs by changing four jumpers located on the input board, just behind the input connectors.
  • Page 25 5.0 Installation 5.2.2 Unbalanced operation (cont.) For the XLR connector, pin 2 carries the + (hot, non-inverting) side of the signal, and pin 1 is ground. To reference the input differential amplifier for the correct gain, short pin 3 to pin 1 (see Figure 29). Figure 29 Use Class 2 Wiring For bridged operation.
  • Page 26 5.0 Installation 5.2.2 Unbalanced operation (cont.) For the quick connect terminal block, pin 3 carries the + (hot, non-inverting) side of the signal, and pin 1 is ground. Short pin 2 to pin 1 in order to reference the input differential amplifier for the correct gain (see Figure 30).

  • Page 27: Output Wiring

    5.0 Installation 5.3 Output wiring The Model 2150 speaker outputs on the amplifiers can accommodate wire from 20 gauge up to 12. We recommend that you do not use speaker wire smaller than 20 gauge. You must use Class I (NEC) wiring.

  • Page 28: Stereo/Mono Switch

    5.0 Installation 5.3 Output wiring (cont.) 5.3.3 Stereo/Mono switch This switch selects between NORMAL STEREO (normal stereo), DUAL MONO (dual mono), or BRIDGED MONO (bridged mono) operation. It is located on the motherboard of the input module. For NORMAL STEREO operation, use CH 1 and CH 2 inputs. For DUAL MONO or BRIDGED MONO operation, use CH 2 input only.

  • Page 29: Stereo Operation

    600W EQUALIZATION COM CH2 CH1 +5V SND RCV J20018292 SERIAL No.: FX CH 1 FX CH 2 ® Model 2150 D.O.M.: SEND RECV SEND RECV EQ. OUT BOSE CORPORATION FRAMINGHAM, MA 01701-9168 U.S.A. MADE IN U.S.A. OF DOMESTIC AND FOREIGN COMPONENTS.

  • Page 30: Bridged Mono

    SEQUENCE EQUALIZATION SND RCV COM CH2 CH1 +5V J20018292 FX CH 1 FX CH 2 SERIAL No.: ® Model 2150 D.O.M.: SEND RECV SEND RECV EQ. OUT BOSE CORPORATION FRAMINGHAM, MA 01701-9168 U.S.A. MADE IN U.S.A. OF DOMESTIC AND FOREIGN COMPONENTS.

  • Page 31: Parallel Mono

    5.0 Installation 5.3.7 Parallel mono Parallel mono operation is useful when running sustained high levels in a single load or when driving a low impedance load. ® For instructions, contact Bose or your authorized Bose Professional Products dealer.

  • Page 32: Troubleshooting

    6.0 Troubleshooting Troubleshooting Problem Cause or Solution No sound, no power • Check amplifier. Power off, then turn on. (Usually indicates a • Linecord disconnected. power supply problem, • Poor fit between the plug and AC receptacle. Try another receptacle. either in the power line or •...

  • Page 33: Appendix A: Features, Warranty, Service

    Model 2150 commercial power amplifier with a five-year, transferable, limited warranty. For more information, please read the warranty card. Service If you experience problems with your Model 2150 commercial power amplifier, contact your authorized Bose Professional Products dealer. The dealer will verify any defects and arrange for service.
  • Page 34 Appendix B: Specifications Specifications for Bose Model 21 50 Commercial Power ® Amplifier Power Output Continuous average output power, both channels driven: 150W per channel into 4 at 1kHz with 0.5% or less THD 150W per channel into 8 at 1kHz with 0.5% or less THD 150W per channel at 100V into a 67 load at 1kHz with 0.5% or less THD...

  • Page 35: Appendix B: Specifications

    Appendix B: Specifications Specifications for Bose Model 21 50 Commercial Power ® Amplifier (cont.) IM distortion 0.2% <0.5% rated power, <0.2% 1/8 rated power Signal - to - noise ratio >95dB A-weighted below full power bandwidth CMRR >80dB @ 1kHz...

  • Page 37: Bose Corporation

    Bose Corporation Bose Corporation...
  • Page 38 Bose Corporation Bose Corporation...
  • Page 39 ©2002 Bose Corporation, The Mountain, Framingham MA 01701-9168 USA 264080 AM Rev.00 JN20950...
