Wells WVG-136 Parts List
  1. Manuals
  2. Brands
  3. Wells Manuals
  4. Griddle
  5. WVG-136 SERIES
  6. Parts list

Wells WVG-136 Parts List

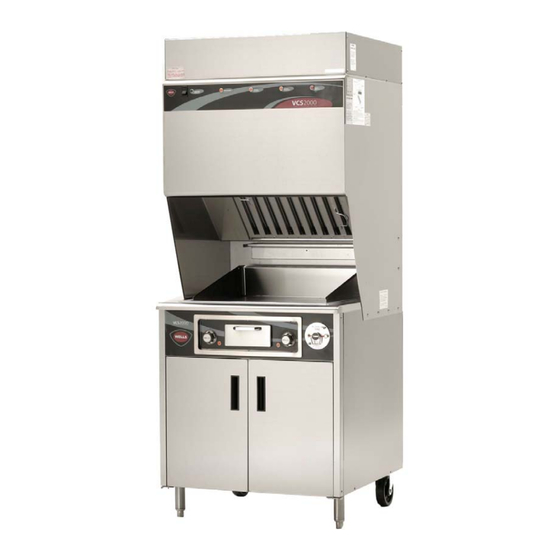

Ventless griddle with or without roll warmer
Hide thumbs Also See for WVG-136:

Advertisement

Quick Links

Download this manual See also: Owner's Manual
WITH OR WITHOUT ROLL WARMER
Description

Parts List ........................................................... 2

WVG-136 Hood Section
Cabinet ......................................................... 4
Hood Electrical and Vacuum .............................. 5
WVG-136 Griddle Section
Elements ....................................................... 6
Cabinet & Electrical ......................................... 7
WVG-136RW Roll Warmer Section ......................... 8
Ansul© Fire Detection & Suppression ...................... 9
PL502
p/n
Rev. D
2 ERIK CIRCLE, P. O. Box 280 Verdi, NV 89439
PARTS LIST
PL502
WVG-136 VENTLESS GRIDDLE
CONTENTS
PRINTED IN UNITED STATES OF AMERICA
WELLS BLOOMFIELD, LLC
telephone: 775-689-5703
fax: 775-689-5976
www.wellsbloomfield.com
502
page
08
0602 cps
