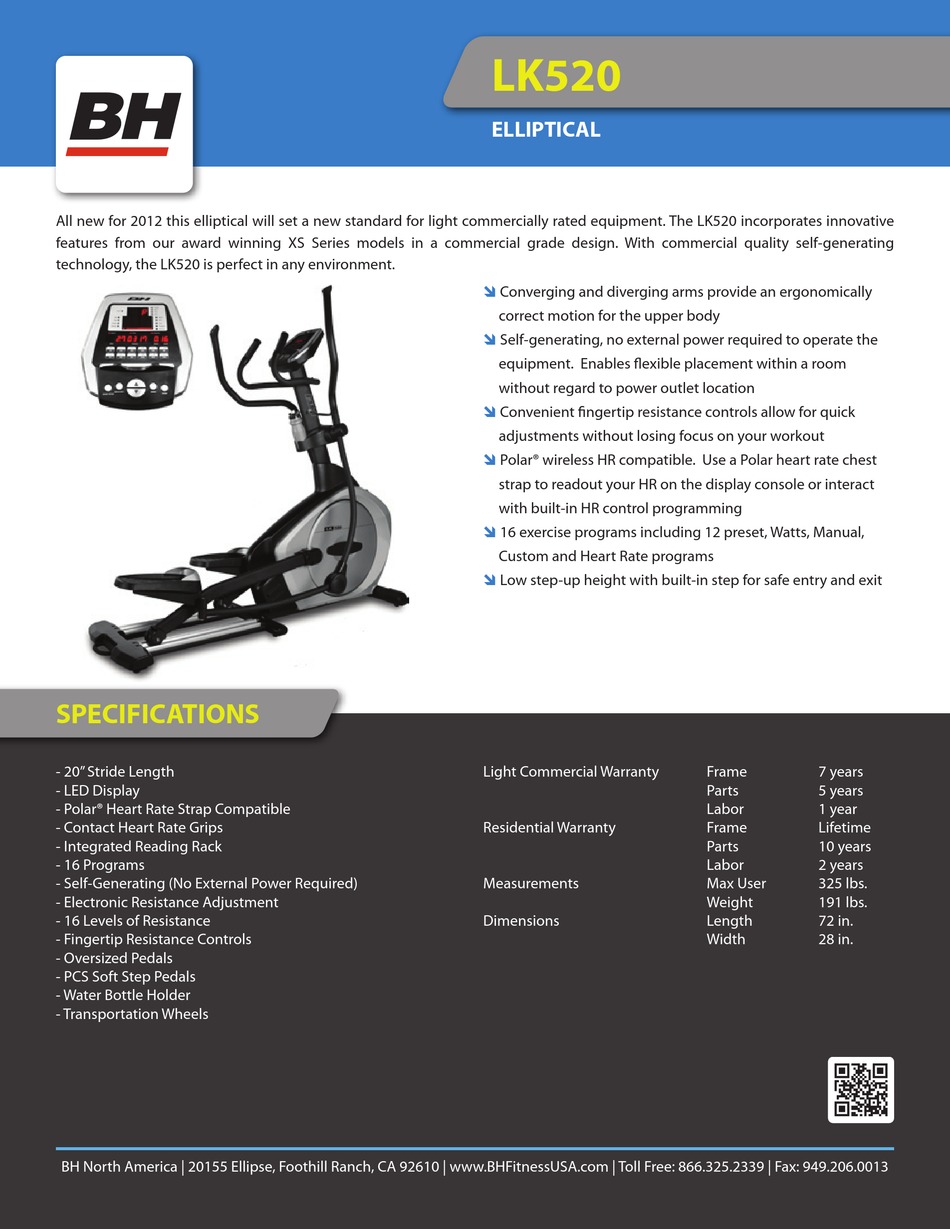

BH FITNESS LK520 Specification

All new for 2012 this elliptical will set a new standard for light commercially rated equipment. The LK520 incorporates innovative
features from our award winning XS Series models in a commercial grade design. With commercial quality self-generating
technology, the LK520 is perfect in any environment.

SPECIFICATIONS

- 20" Stride Length
- LED Display
- Polar® Heart Rate Strap Compatible
- Contact Heart Rate Grips
- Integrated Reading Rack
- 16 Programs
- Self-Generating (No External Power Required)
- Electronic Resistance Adjustment
- 16 Levels of Resistance
- Fingertip Resistance Controls
- Oversized Pedals
- PCS Soft Step Pedals
- Water Bottle Holder
- Transportation Wheels
BH North America | 20155 Ellipse, Foothill Ranch, CA 92610 | www.BHFitnessUSA.com | Toll Free: 866.325.2339 | Fax: 949.206.0013
LK520
ELLIPTICAL
Converging and diverging arms provide an ergonomically

correct motion for the upper body
Self-generating, no external power required to operate the

equipment. Enables flexible placement within a room
without regard to power outlet location
Convenient fingertip resistance controls allow for quick

adjustments without losing focus on your workout
Polar® wireless HR compatible. Use a Polar heart rate chest

strap to readout your HR on the display console or interact
with built-in HR control programming
16 exercise programs including 12 preset, Watts, Manual,

Custom and Heart Rate programs
Low step-up height with built-in step for safe entry and exit

Light Commercial Warranty
Residential Warranty
Measurements
Dimensions
Frame 7 years
Parts 5 years
Labor 1 year
Frame Lifetime
Parts 10 years
Labor 2 years
Max User 325 lbs.
Weight 191 lbs.
Length 72 in.
Width 28 in.
