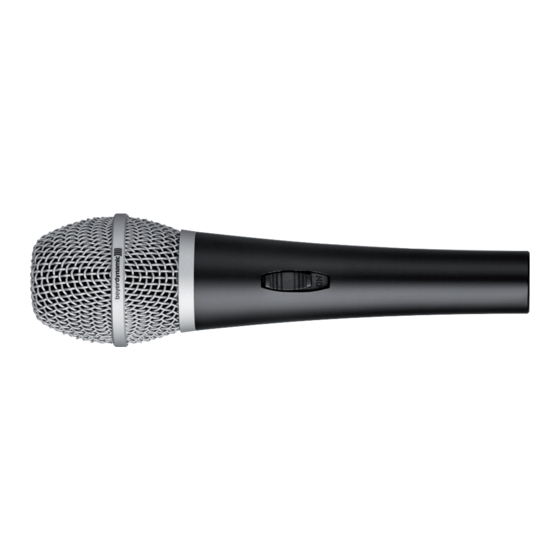

Beyerdynamic TG V35d s Features And Specifications

TG V35d s
Dynamic Microphone
F
EATURES
• Supercardioid polar pattern
• Flat, wide frequency response
for uncoloured sound reproduction
• Rugged construction
• Excellent isolation from unwanted sound
• With On/Off switch
A
PPLICATIONS
The reliable and rugged all-around TG V35d s model is a dynamic
vocal microphone that is perfect for beginners. Its natural sound
that is typical for beyerdynamic and its supercardoid polar pattern
with high feedback rejection are valued by vocalists, DJs and
speakers in rehearsal rooms and on stage. Thanks to the high
output level, the TG V35d s only needs a simple pre-amplifier in
order to deliver impressive results. It features a noiseless on/off
switch and includes an XLR cable, clamp and storage bag.
V
ERSION
TG V35d s Dynamic supercardioid microphone,
with On/Off switch,
incl. MKV 108 microphone clamp,
XLR cable (4.5 m) and
storage bag . . . . . . . . . . . . . . . Order #. 707.244
1 of 2
beyerdynamic GmbH & Co. KG
Theresienstr. 8 | 74072 Heilbronn – Germany
Tel. +49 (0) 71 31 / 617 - 0 | Fax +49 (0) 71 31 / 617 - 204
info@beyerdynamic.de | www.beyerdynamic.com
For further distributors worldwide, please go to www.beyerdynamic.com
Non-contractual illustrations. Contents subject to change without notice. E2/TG V35d s (08.11)
T S
ECHNICAL PECIFICATIONS
Transducer type . . . . . . . . . . . . . . . . Dynamic
Operating principle. . . . . . . . . . . . . . Pressure gradient
Polar pattern . . . . . . . . . . . . . . . . . . Supercardioid
Frequency response:
Close miking . . . . . . . . . . . . . . . . . . 30 - 18,000 Hz
Distant miking (measured at 1 m) . . . 55 - 18,000 Hz
Rear attenuation at 1 kHz. . . . . . . . . > 20 dB at 140°
Open circuit voltage at 1 kHz . . . . . . 2.5 mV/Pa = -52 dBV
Nominal impedance . . . . . . . . . . . . . 600 Ω
Load impedance. . . . . . . . . . . . . . . . 2 kΩ
Connection . . . . . . . . . . . . . . . . . . . 3-pin XLR male
Dimensions . . . . . . . . . . . . . . . . . . . Length: 186 mm
Weight without cable. . . . . . . . . . . . 305 g
O A
PTIONAL CCESSORIES
BMC 05 FM Microphone cable XLR-XLR,
5 m long . . . . . . . . . . . . . . . . . Order # 434.787
BMC 10 FM Microphone cable XLR-XLR,
10 m long . . . . . . . . . . . . . . . . Order # 434.795
GST 400 Microphone stand 3/8",
height 0.90-1.65 m,
with G 400 boom. . . . . . . . . . . Order # 421.294
GST 500 Microphone stand 3/8",
height 0.80-1.60 m,
with telescopic G 500 boom . . . Order # 406.252
PS 20/40 Pop shield, charcoal-grey . . . . . Order # 437.972
Shaft diameter: 24/38 mm
Head diameter: 50 mm
