CONNECTING THE EXPANSION MODULE

The expansion module (shown on the left in Figure 2) shall be connected to the 6416 or 6424-type telephone
(shown on the right in Figure 2) with the D6AP-87 cord.
NOTE: To successfully power the XM24, a D8W modular cord must be connected to the 6416 or 6424-type
telephone and the power unit (see Power Requirements). The D2R telephone line cord will not supply power to
the XM24.
NOTE: The 6400 Series telephone with an attached expansion module can be used only on a flat surface such
as a desk. The telephone and expansion module CANNOT be wall-mounted.
1 Snap one end of the cord into the 6-pin Expansion Module jack, labeled "XM24" (3), on the bottom of the 6400
Series telephone and then thread the cord upwards through the routing channel (2) on the telephone. See
Figure 2.
2 Thread the other end of the D6AP-87 cord downwards through the routing channel (1) on the expansion
module and snap the free end of the cord into the 6-pin jack, labeled "TEL SET" (4), on the bottom of the
expansion module.
Figure 2 shows the connection of the 6416-type telephone to the expansion module. (The expansion module is
connected to the 6424-type telephone in exactly the same way.)

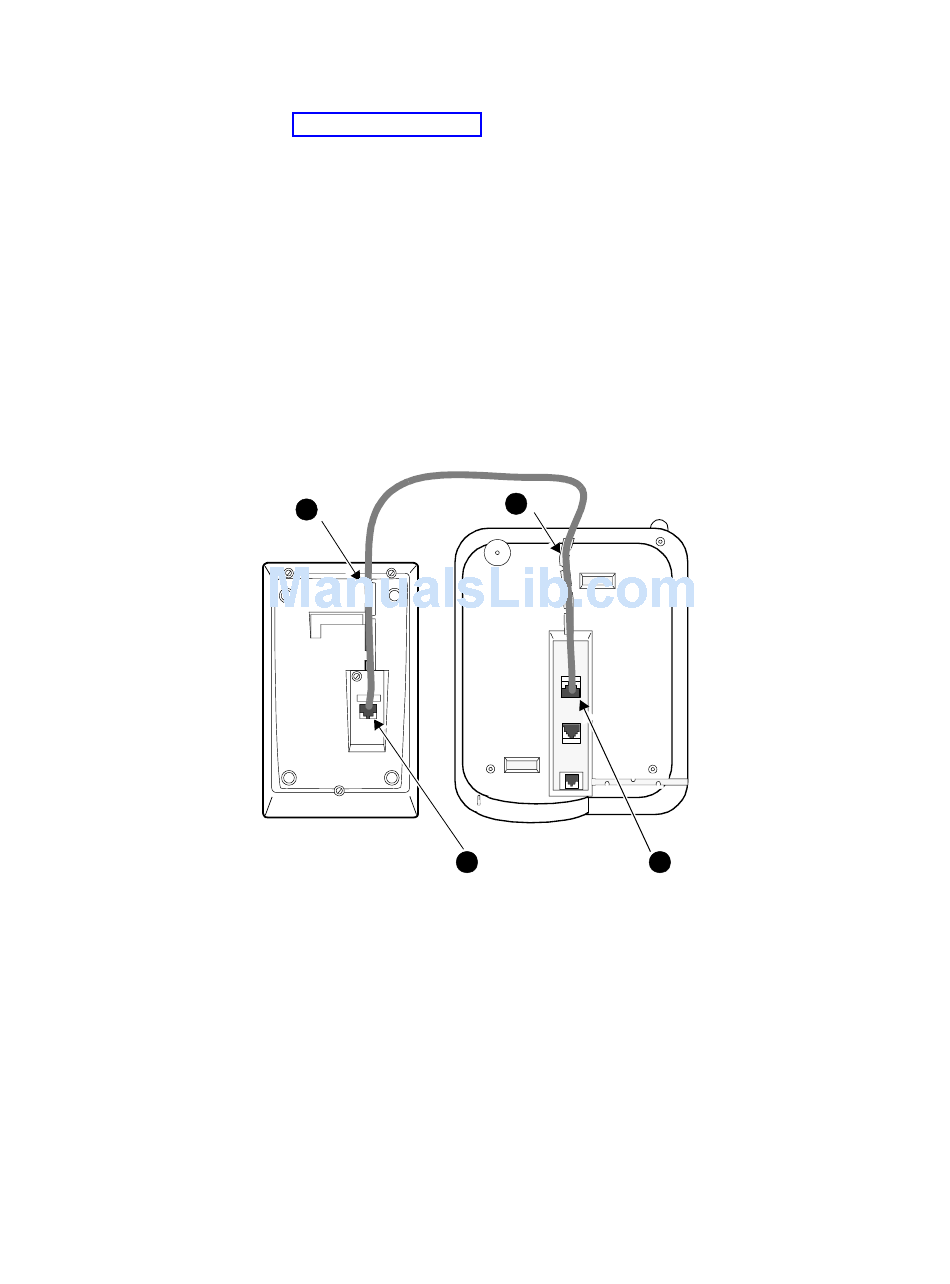

FIGURE 2 Connection of the 6416-Type and 6424-Type Telephones to the Expansion Module
1
TEL SET
4
2
2
XM24
LINE
3
