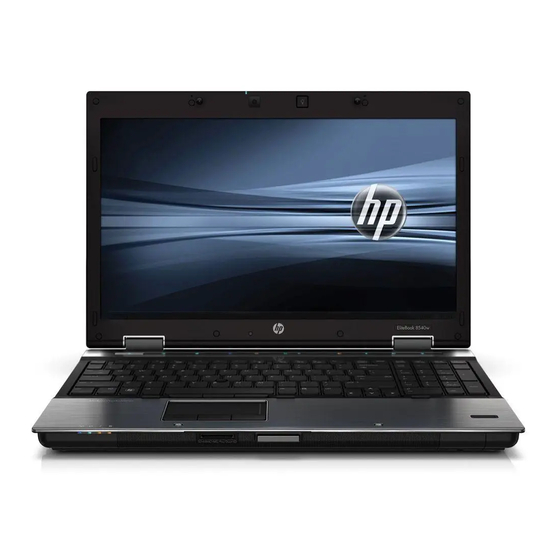

HP EliteBook 8540w Specification

Mobile workstation
Hide thumbs Also See for EliteBook 8540w:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Maintenance and Service Manual
QuickSpecs
1.
Volume mute button with LED indicator
2.
Volume down button with LED indicator
3.
Volume up button with LED indicator
4.
Calculator button
5.
Kensington Lock slot
6.
RJ-11/modem port
7.
RJ-45/Ethernet port
8.
(2) USB 3.0 ports
9.
Full numeric keypad
10.
Upgrade Bay (optical drive, 2nd hard drive)
11.
Integrated Smart Card Reader
12.
HP Fingerprint Sensor
DA - 13529
Canada — Version 24 — September 29, 2011
HP EliteBook 8540w Mobile Workstation
HP EliteBook 8540w Mobile Workstation
HP EliteBook 8540w Mobile Workstation
HP EliteBook 8540w Mobile Workstation
17.
Hard drive activity / HP 3D DriveGuard LED indicator
18.
Battery charging LED indicator
19.
Power/standby LED indicator
20.
Wireless on/off LED indicator
21.
Power button with LED indicator
22.
HP QuickLook 3 button with LED indicator
23.
HP QuickWeb button with LED indicator
24.
Wireless on/off button with LED indicator
25.
Touchpad on/off button
26.
Ambient Light Sensor
27.
WWAN antennas
28.
Dual-microphone array
Page 1

Advertisement

Table of Contents
loading

Related Manuals for HP EliteBook 8540w

Summary of Contents for HP EliteBook 8540w

  • Page 1 HP EliteBook 8540w Mobile Workstation HP EliteBook 8540w Mobile Workstation Overview Volume mute button with LED indicator Hard drive activity / HP 3D DriveGuard LED indicator Volume down button with LED indicator Battery charging LED indicator Volume up button with LED indicator...
  • Page 2 Touchpad buttons (3) (2) USB 2.0 ports Power/standby LED indicator DisplayPort Battery charging LED indicator eSATA port Hard drive activity / HP 3D DriveGuard LED USB 2.0 port Integrated stereo speakers 1394a port Media Card Reader Stereo microphone in Display release latch...
  • Page 3 Upgrade Bay for easy optical drive upgrade or optional second hard drive for RAID 1 Mirroring or RAID 0 Striping Choice of standard 8-cell primary battery or HP Long Life battery, plus optional external batteries – HP Ultra-Capacity Battery, HP Extended Life Battery...
  • Page 4 Integrated Intel Centrino® Ultimate-N 6000 Series 802.11 a/b/g/n wireless LAN module Bluetooth® v2.1 Choice of 7200 rpm user-removable hard drive up to 500 GB with HP 3D DriveGuard protection, or 160/256 GB Solid State Drive HP Power Assistant to conserve power, increase battery run-time, monitor power needs, report workforce power consumption Enhanced security features including integrated Smart Card Reader, HP ProtectTools, Computrace LoJack Pro ready, HP SpareKey, HP Disk Sanitizer, TPM 1.2 ;** optional HP Fingerprint Sensor, and optional HP Privacy Filter...

  • Page 5: Standard Features

    QuickSpecs HP EliteBook 8540w Mobile Workstation HP EliteBook 8540w Mobile Workstation HP EliteBook 8540w Mobile Workstation HP EliteBook 8540w Mobile Workstation Standard Features Processors Processors Processors Processors Intel Quad-Core Processors Intel Quad-Core Processors Intel Quad-Core Processors Intel Quad-Core Processors Intel Core i7-840QM Processor (1.86 GHz, 8 MB L3 cache)* Up to 3.20 GHz with Intel Turbo Boost Technology...
  • Page 6 100 Hz DVI-D DVI-D DVI-D DVI-D (single link) video signal available through DVI port in optional HP Docking Station (sold separately) supports resolutions up to 1600 x 1200 at both full and reduced blanking, and 1920 x 1200 at reduced blanking...
  • Page 7 NOTE: Due to the non-industry standard nature of some third-party memory modules, we recommend HP branded memory to ensure compatibility. If you mix memory speeds, the system will perform at the lower memory speed. Full availability of 4 GB or more of memory requires a Windows 64-bit operating system or Linux.
  • Page 8 Keyboard Keyboard The HP spill-resistant keyboard is designed using a thin layer of Mylar film under the keyboard and a drain system that funnels fluid through a hole in the bottom of the notebook. This minimizes the risk of damage to sensitive components underneath. The 101/102-key compatible keyboard features an industry standard, full-pitch key layout with desktop keyboard features, such as the isolated inverted-T cursor control keys, editing keys, both left and right control and alt keys, and 12 function keys.
  • Page 9 QuickSpecs HP EliteBook 8540w Mobile Workstation HP EliteBook 8540w Mobile Workstation HP EliteBook 8540w Mobile Workstation HP EliteBook 8540w Mobile Workstation Standard Features Internal Storage Internal Storage Internal Storage Internal Storage Hard Drives Hard Drives Hard Drives Hard Drives 250/320/500 GB 7200 rpm SMART SATA II...
  • Page 10 Software Preinstalled software with Preinstalled software with Preinstalled software with Preinstalled software with HP Recovery Manager (available with Windows 7 or Vista only) Windows operating Windows operating Windows operating Windows operating HP Support Assistant (available with Windows 7 or Vista only)
  • Page 11 HP Performance Advisor HP Performance Advisor enables optimal configuration of HP Mobile Workstations delivering stability and best performance. HP Performance Advisor will guide your system setup allowing a "custom" configuration that best matches the workstation to user requirements. DA - 13529 Canada —...
  • Page 12 For more information on HP security solutions refer to: http://www.hp.com/go/security. HP ProtectTools Security HP ProtectTools Security HP ProtectTools Security HP ProtectTools Security HP ProtectTools Security Manager is the security platform for business notebooks and desktops. The HP Manager Manager Manager Manager ProtectTools Security Manager is an extensible client security console that delivers enhanced security capabilities through add-on software modules.
  • Page 13 Total length including external AC adapter is 12 feet (3.66 metre). HP Fast Charge* *HP Fast Charge recharges your battery up to 90% within 90 minutes when the system is off. HP Fast Charge does not apply to the HP Ultra-Capacity Battery or the HP Long Life Battery. Battery...
  • Page 14 HP Adjustable Notebook Stand NOTE: NOTE: NOTE: NOTE: Some HP Docking stations may not support every feature of some HP Notebook models. Please refer to the individual docking station documentation for specific information about supported features. Service and Support Service and Support...
  • Page 15 HP 250GB Pocket Media Drive FE477AA HP External USB Drive CD/DVD R/RW FS943AA HP Upgrade Bay SATA 500 GB 7200 rpm Hard Drive AU097AA HP Primary SATA 500 GB 7200 rpm Hard Drive AU098AA HP Primary SATA 320 GB 7200 rpm Hard Drive...
  • Page 16 HP/Kensington MicroSaver Cable Lock PC766A HP Compaq Notebook Cable Lock AY475AA HP Privacy Filter for 15.6-inch Display AU103AA HP ExpressCard Smart Card Reader with Java Card AJ451AA DA - 13529 Canada — Version 24 — September 29, 2011 Page 16...
  • Page 17 QuickSpecs HP EliteBook 8540w Mobile Workstation HP EliteBook 8540w Mobile Workstation HP EliteBook 8540w Mobile Workstation HP EliteBook 8540w Mobile Workstation Options Input/Output Devices Input/Output Devices Input/Output Devices Input/Output Devices HP PS/2 Keyboard & Mouse Bundle RC464AA HP USB Keyboard & Mouse Bundle...
  • Page 18 NOTE: This chart does not represent all possible memory configurations. Due to the non-industry standard nature of some third-party memory modules, we strongly recommend using only HP- branded memory modules to ensure compatibility. If you mix memory speeds, the system will perform at the lower memory speed.
  • Page 19 QuickSpecs HP EliteBook 8540w Mobile Workstation HP EliteBook 8540w Mobile Workstation HP EliteBook 8540w Mobile Workstation HP EliteBook 8540w Mobile Workstation Storage Upgrade Bay Drive Support Upgrade Bay Drive Support Upgrade Bay Drive Support Upgrade Bay Drive Support Quantity Supported...
  • Page 20 QuickSpecs HP EliteBook 8540w Mobile Workstation HP EliteBook 8540w Mobile Workstation HP EliteBook 8540w Mobile Workstation HP EliteBook 8540w Mobile Workstation Technical Specifications System Unit System Unit System Unit System Unit Dimensions Dimensions Dimensions Dimensions (HxWxD) 1.28 in (at front) x 14.7 in x 9.9 in 32.4 mm (at front) x 373.5 mm x 251.5 mm...
  • Page 21 SABS UKRSERTCOMPUTER * Configurations of the HP EliteBook 8540w that are ENERGY STAR qualified are identified as HP EliteBook 8540w ENERGY STAR on HP websites and on www.energystar.gov. ** EPEAT TBD Registered in U.S. EPEAT registration varies by country. See www.epeat.net...
  • Page 22 QuickSpecs HP EliteBook 8540w Mobile Workstation HP EliteBook 8540w Mobile Workstation HP EliteBook 8540w Mobile Workstation HP EliteBook 8540w Mobile Workstation Technical Specifications HP 120W Smart AC HP 120W Smart AC HP 120W Smart AC HP 120W Smart AC Weight...
  • Page 23 QuickSpecs HP EliteBook 8540w Mobile Workstation HP EliteBook 8540w Mobile Workstation HP EliteBook 8540w Mobile Workstation HP EliteBook 8540w Mobile Workstation Technical Specifications Connector Connector Connector Connector 3 pin/grounded, mates with interchangeable cords Environmental Design Environmental Design Environmental Design Environmental Design Operating temperature 32°...

  • Page 24: Technical Specifications

    QuickSpecs HP EliteBook 8540w Mobile Workstation HP EliteBook 8540w Mobile Workstation HP EliteBook 8540w Mobile Workstation HP EliteBook 8540w Mobile Workstation Technical Specifications Optional HP Extended Life Optional HP Extended Life Optional HP Extended Life Optional HP Extended Life Dimensions...
  • Page 25 QuickSpecs HP EliteBook 8540w Mobile Workstation HP EliteBook 8540w Mobile Workstation HP EliteBook 8540w Mobile Workstation HP EliteBook 8540w Mobile Workstation Technical Specifications Displays Displays Displays Displays 15.6-inch LED HD+ 15.6-inch LED HD+ 15.6-inch LED HD+ 15.6-inch LED HD+ Active Area...
  • Page 26 QuickSpecs HP EliteBook 8540w Mobile Workstation HP EliteBook 8540w Mobile Workstation HP EliteBook 8540w Mobile Workstation HP EliteBook 8540w Mobile Workstation Technical Specifications 15.6-inch LED FHD 15.6-inch LED FHD 15.6-inch LED FHD 15.6-inch LED FHD Active Area Active Area Active Area Active Area (W x H) 13.54 x 7.59 in (34.4 x 19.4 cm)
  • Page 27 QuickSpecs HP EliteBook 8540w Mobile Workstation HP EliteBook 8540w Mobile Workstation HP EliteBook 8540w Mobile Workstation HP EliteBook 8540w Mobile Workstation Technical Specifications 320 GB 7200 rpm SATA 320 GB 7200 rpm SATA 320 GB 7200 rpm SATA 320 GB 7200 rpm SATA...
  • Page 28 QuickSpecs HP EliteBook 8540w Mobile Workstation HP EliteBook 8540w Mobile Workstation HP EliteBook 8540w Mobile Workstation HP EliteBook 8540w Mobile Workstation Technical Specifications 160 GB 160 GB 160 GB 160 GB Weight Weight Weight Weight 78 Grams 2.5-inch SATA Solid State 2.5-inch SATA Solid State...
  • Page 29 QuickSpecs HP EliteBook 8540w Mobile Workstation HP EliteBook 8540w Mobile Workstation HP EliteBook 8540w Mobile Workstation HP EliteBook 8540w Mobile Workstation Technical Specifications DVD+/-RW SuperMulti DVD+/-RW SuperMulti DVD+/-RW SuperMulti DVD+/-RW SuperMulti Access Times Access Times Access Times Access Times Random <...
  • Page 30 QuickSpecs HP EliteBook 8540w Mobile Workstation HP EliteBook 8540w Mobile Workstation HP EliteBook 8540w Mobile Workstation HP EliteBook 8540w Mobile Workstation Technical Specifications 1X BD-R Up to 4,500 KB/s 1X BD-RE Up to 4,500 KB/s Transfer Mode Transfer Mode Transfer Mode...
  • Page 31 QuickSpecs HP EliteBook 8540w Mobile Workstation HP EliteBook 8540w Mobile Workstation HP EliteBook 8540w Mobile Workstation HP EliteBook 8540w Mobile Workstation Technical Specifications Audio Output Quality Audio Output Quality Audio Output Quality Audio Output Quality Frequency Response Frequency Response Frequency Response...
  • Page 32 QuickSpecs HP EliteBook 8540w Mobile Workstation HP EliteBook 8540w Mobile Workstation HP EliteBook 8540w Mobile Workstation HP EliteBook 8540w Mobile Workstation Technical Specifications Interoperability Interoperability Interoperability Interoperability Wi-Fi certified (802.11bgn only) Cisco Compatible Extensions Program compliant (802.11bgn only) with Microsoft Windows Vista and XP...
  • Page 33 QuickSpecs HP EliteBook 8540w Mobile Workstation HP EliteBook 8540w Mobile Workstation HP EliteBook 8540w Mobile Workstation HP EliteBook 8540w Mobile Workstation Technical Specifications Humidity Humidity Humidity Humidity Operating 10% to 90% (non-condensing) Non-operating 5% to 90% (non-condensing) Altitude Altitude Altitude...
  • Page 34 QuickSpecs HP EliteBook 8540w Mobile Workstation HP EliteBook 8540w Mobile Workstation HP EliteBook 8540w Mobile Workstation HP EliteBook 8540w Mobile Workstation Technical Specifications Network Architecture Network Architecture Network Architecture Network Architecture Ad-hoc (Peer to Peer) Models Models Models Models Infrastructure (Access Point Required)
  • Page 35 QuickSpecs HP EliteBook 8540w Mobile Workstation HP EliteBook 8540w Mobile Workstation HP EliteBook 8540w Mobile Workstation HP EliteBook 8540w Mobile Workstation Technical Specifications HP un2420 HP un2420 HP un2420 HP un2420 Technology/Operating Technology/Operating Technology/Operating Technology/Operating GSM/GPRS/EDGE: 850MHz(Cell), 900MHz(EGSM), 1800MHz(DCS), EV-DO/HSPA Mobile...
  • Page 36 QuickSpecs HP EliteBook 8540w Mobile Workstation HP EliteBook 8540w Mobile Workstation HP EliteBook 8540w Mobile Workstation HP EliteBook 8540w Mobile Workstation Technical Specifications with Bluetooth 2.1 with Bluetooth 2.1 with Bluetooth 2.1 with Bluetooth 2.1 Dimensions Dimensions Dimensions Dimensions 1.18 x 0.26 x 0.13 in (30 x 6.5 x 3.25 mm)
  • Page 37 This product has received or is in the process of being certified to the following approvals and may be labeled with one or more of these marks: US Energy Star IT ECO declaration EPEAT - Gold where HP registers commercial desktop products. See http://www.epeat.net for registration status in your country. System Configuration...
  • Page 38 (RoHS) directive - 2002/95/EC. This HP product is designed to comply with the Waste Electrical and Electronic Equipment (WEEE) Directive - 2002/96/EC. This product is in compliance with California Proposition 65 (State of California; Safe Drinking Water and Toxic Enforcement Act of 1986).
  • Page 39 This information (product disassembly instructions) is posted on the Hewlett Packard web site at: http://www.hp.com/go/recyclers. These instructions may be used by recyclers and other WEEE treatment facilities as well as HP OEM customers who integrate and re-sell HP equipment. DA - 13529 Canada —...
  • Page 40 HP products are set forth in the express limited warranty statements accompanying such products. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
