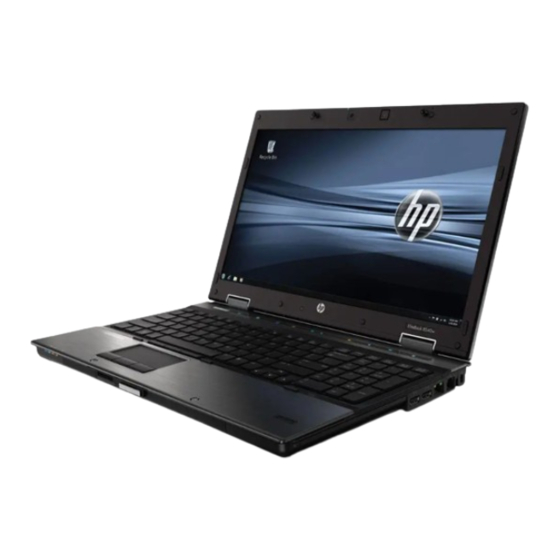

HP EliteBook 8540w Overview

Mobile workstation
Hide thumbs Also See for EliteBook 8540w:

Advertisement

Quick Links

Download this manual See also: Maintenance and Service Manual
QuickSpecs
Overview

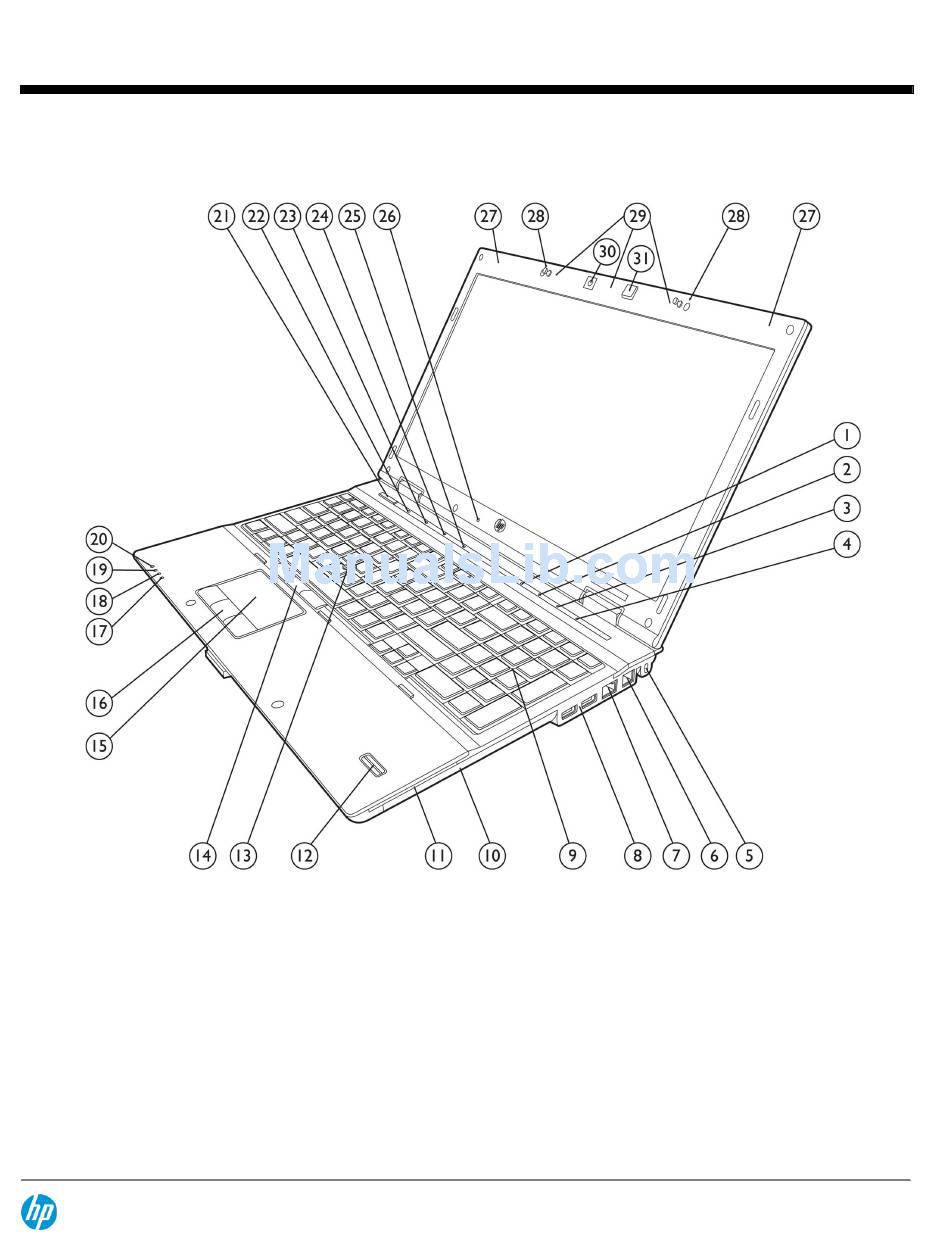

1.
Volume mute button with LED indicator
2.
Volume down button with LED indicator
3.
Volume up button with LED indicator
4.
Calculator button
5.
Kensington Lock slot
6.
RJ-11/modem port
7.
RJ-45/Ethernet port
8.
(2) USB 3.0 ports
9.
Full numeric keypad
10. Upgrade Bay (optical drive, 2nd hard drive)
11. Integrated Smart Card Reader
12. HP Fingerprint Sensor
DA - 13529 Canada — Version 25 — September 29, 2011
HP EliteBook 8540w Mobile Workstation
17. Hard drive activity / HP 3D DriveGuard LED indicator
18. Battery charging LED indicator
19. Power/standby LED indicator
20. Wireless on/off LED indicator
21. Power button with LED indicator
22. HP QuickLook 3 button with LED indicator
23. HP QuickWeb button with LED indicator
24. Wireless on/off button with LED indicator
25. Touchpad on/off button
26. Ambient Light Sensor
27. WWAN antennas
28. Dual-microphone array
