QuickSpecs

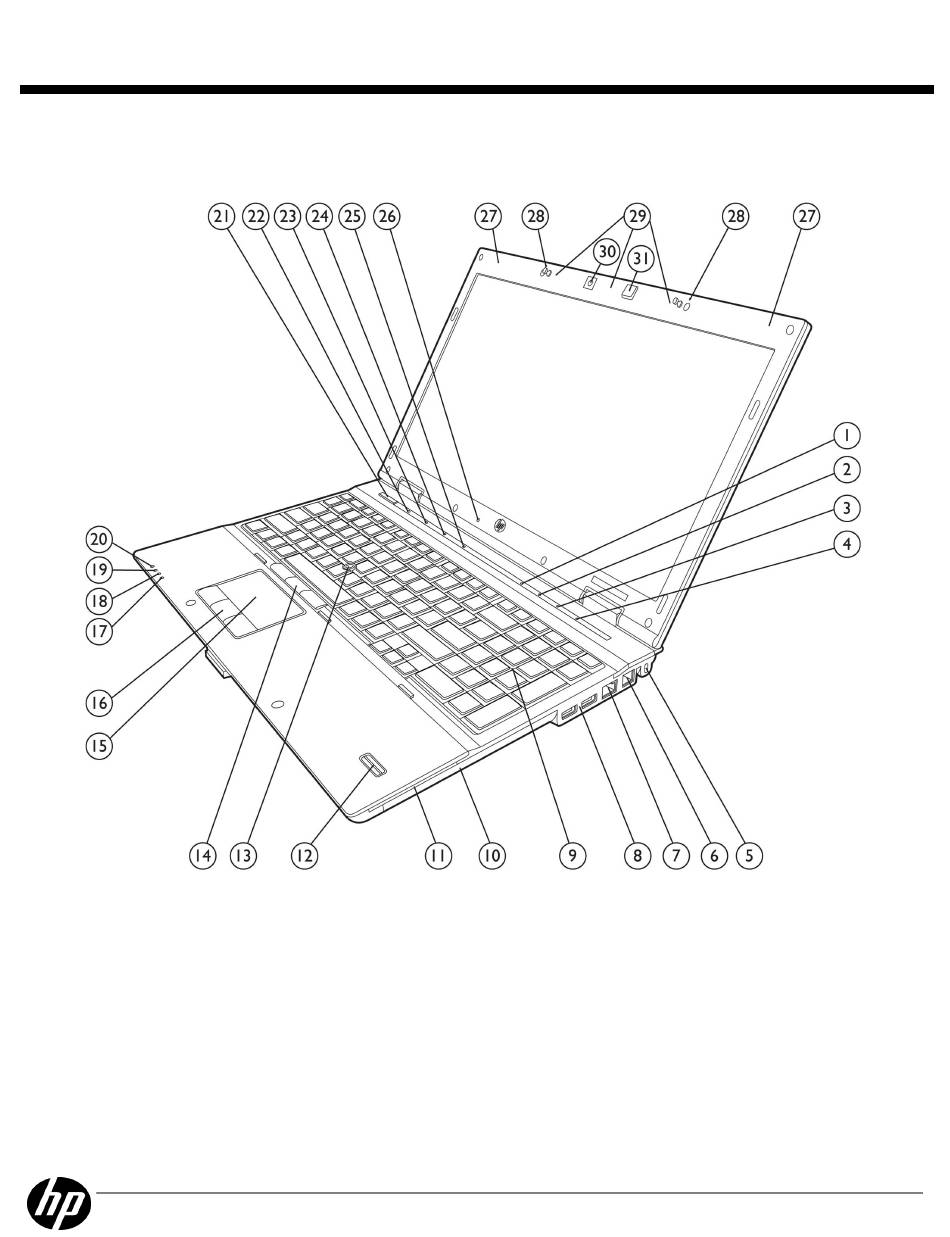

Overview

Volume mute button with LED indicator

Volume down button with LED indicator

Volume up button with LED indicator

Calculator button

Kensington Lock slot

RJ-11/modem port

RJ-45/Ethernet port

(2) USB 3.0 ports

Full numeric keypad

10.

Upgrade Bay (optical drive, 2nd hard drive)

11.

Integrated Smart Card Reader

12.

Optional HP Fingerprint Sensor

DA - 13521

North America — Version 13 — October 8, 2010

HP EliteBook 8540p Notebook PC

17.

Hard drive activity / HP 3D DriveGuard LED indicator

18.

Battery charging LED indicator

19.

Power/standby LED indicator

20.

Wireless on/off LED indicator

21.

Power button with LED indicator

22.

HP QuickLook 3 button with LED indicator

23.

HP QuickWeb button with LED indicator

24.

Wireless on/off button with LED indicator

25.

Touchpad on/off button

26.

Ambient Light Sensor

27.

WWAN antennas

28.

Dual-microphone array

Page 1

Summary of Contents for HP EliteBook 8540p

Page 1 HP EliteBook 8540p Notebook PC HP EliteBook 8540p Notebook PC Overview Volume mute button with LED indicator Hard drive activity / HP 3D DriveGuard LED indicator Volume down button with LED indicator Battery charging LED indicator Volume up button with LED indicator...
Page 2 Touchpad buttons (3) (2) USB 2.0 ports Power/standby LED indicator DisplayPort Battery charging LED indicator eSATA port Hard drive activity / HP 3D DriveGuard LED USB 2.0 port Integrated stereo speakers 1394a port Media Card Reader Stereo microphone in Display release latch...
Page 3 Upgrade Bay for easy optical drive upgrade or optional second hard drive for RAID 1 Mirroring or RAID 0 Striping Choice of standard 8-cell primary battery or HP Long Life battery, plus optional external batteries - HP Ultra-Capacity Battery, HP Extended Life Battery...
Page 4 SpareKey, HP Disk Sanitizer, TPM 1.2 optional HP Fingerprint Sensor, and optional HP Privacy Filter Touch-sensitive controls for HP QuickLook 3 (instant access to email, calendar, contacts and tasks), HP QuickWeb, wireless on/off, touchpad on/off, mute, volume down, volume up, and calculator...
Page 5: Standard Features
QuickSpecs HP EliteBook 8540p Notebook PC HP EliteBook 8540p Notebook PC HP EliteBook 8540p Notebook PC HP EliteBook 8540p Notebook PC Standard Features Processors Processors Processors Processors Intel Quad-Core Processor Intel Quad-Core Processor Intel Quad-Core Processor Intel Quad-Core Processor Intel Core i7-840QM Processor (1.86 GHz, 8 MB L3 cache)* Up to 3.20 GHz with Intel Turbo Boost Technology...
Page 6 100 Hz DVI-D DVI-D DVI-D DVI-D (single link) video signal available through DVI port in optional HP Docking Station (sold separately) supports resolutions up to 1600 x 1200 at both full and reduced blanking, and 1920 x 1200 at reduced blanking...
Page 7 NOTE: Due to the non-industry standard nature of some third-party memory modules, we recommend HP branded memory to ensure compatibility. If you mix memory speeds, the system will perform at the lower memory speed. Full availability of 4 GB or more of memory requires a Windows 64-bit operating system or Linux.
Page 8 Keyboard Keyboard The HP spill-resistant keyboard is designed using a thin layer of Mylar film under the keyboard and a drain system that funnels fluid through a hole in the bottom of the notebook. This minimizes the risk of damage to sensitive components underneath. The 101/102-key compatible keyboard features an industry standard, full-pitch key layout with desktop keyboard features, such as the isolated inverted-T cursor control keys, editing keys, both left and right control and alt keys, and 12 function keys.
Page 9 QuickSpecs HP EliteBook 8540p Notebook PC HP EliteBook 8540p Notebook PC HP EliteBook 8540p Notebook PC HP EliteBook 8540p Notebook PC Standard Features Internal Storage Internal Storage Internal Storage Internal Storage Hard Drives Hard Drives Hard Drives Hard Drives 250/320/500/640 GB 7200 rpm SMART SATA II...
Page 10 Software Preinstalled software with Preinstalled software with Preinstalled software with Preinstalled software with HP Recovery Manager (available with Windows 7 or Vista only) Windows operating Windows operating Windows operating Windows operating HP Support Assistant (available with Windows 7 or Vista only)
Page 11 For more information on HP security solutions refer to: http://www.hp.com/go/security. HP ProtectTools Security HP ProtectTools Security HP ProtectTools Security HP ProtectTools Security HP ProtectTools Security Manager is the security platform for business notebooks and desktops. The HP Manager Manager Manager Manager ProtectTools Security Manager is an extensible client security console that delivers enhanced security capabilities through add-on software modules.
Page 12 Total length including external AC adapter is 12 feet (3.66 meter). HP Fast Charge* *HP Fast Charge recharges your battery up to 90% within 90 minutes when the system is off. HP Fast Charge does not apply to the HP Ultra-Capacity Battery or HP Long Life Battery. Battery...
Page 13 HP Adjustable Notebook Stand NOTE: NOTE: NOTE: NOTE: Some HP Docking stations may not support every feature of some HP Notebook models. Please refer to the individual docking station documentation for specific information about supported features. Service and Support Service and Support...
Page 14 HP 250GB Pocket Media Drive FE477AA HP External USB Drive CD/DVD R/RW FS943AA HP Upgrade Bay SATA 500 GB 7200 rpm Hard Drive AU097AA HP Primary SATA 500 GB 7200 rpm Hard Drive AU098AA HP Primary SATA 320 GB 7200 rpm Hard Drive...
Page 15 HP/Kensington MicroSaver Cable Lock PC766A HP Compaq Notebook Cable Lock AY475AA HP Privacy Filter for 15.6-inch Display AU103AA HP ExpressCard Smart Card Reader with Java Card AJ451AA DA - 13521 North America — Version 13 — October 8, 2010 Page 15...
Page 16 QuickSpecs HP EliteBook 8540p Notebook PC HP EliteBook 8540p Notebook PC HP EliteBook 8540p Notebook PC HP EliteBook 8540p Notebook PC Options Input/Output Devices Input/Output Devices Input/Output Devices Input/Output Devices HP PS/2 Keyboard & Mouse Bundle RC464AA HP USB Keyboard & Mouse Bundle...
Page 17 NOTE: This chart does not represent all possible memory configurations. Due to the non-industry standard nature of some third-party memory modules, we strongly recommend using only HP- branded memory modules to ensure compatibility. If you mix memory speeds, the system will perform at the lower memory speed.
Page 18 QuickSpecs HP EliteBook 8540p Notebook PC HP EliteBook 8540p Notebook PC HP EliteBook 8540p Notebook PC HP EliteBook 8540p Notebook PC Storage Upgrade Bay Drive Support Upgrade Bay Drive Support Upgrade Bay Drive Support Upgrade Bay Drive Support Quantity Supported...
Page 19 QuickSpecs HP EliteBook 8540p Notebook PC HP EliteBook 8540p Notebook PC HP EliteBook 8540p Notebook PC HP EliteBook 8540p Notebook PC Technical Specifications System Unit System Unit System Unit System Unit Dimensions Dimensions Dimensions Dimensions (HxWxD) 1.28 in (at front) x 14.7 in x 9.9 in 32.4 mm (at front) x 373.5 mm x 251.5 mm...
Page 20 SABS UKRSERTCOMPUTER * Configurations of the HP EliteBook 8540p that are ENERGY STAR qualified are identified as HP EliteBook 8540p ENERGY STAR on HP websites and on www.energystar.gov. ** EPEAT TBD Registered in U.S. EPEAT registration varies by country. See www.epeat.net...
Page 21 QuickSpecs HP EliteBook 8540p Notebook PC HP EliteBook 8540p Notebook PC HP EliteBook 8540p Notebook PC HP EliteBook 8540p Notebook PC Technical Specifications HP 90W Smart AC HP 90W Smart AC HP 90W Smart AC HP 90W Smart AC Dimensions...
Page 22 QuickSpecs HP EliteBook 8540p Notebook PC HP EliteBook 8540p Notebook PC HP EliteBook 8540p Notebook PC HP EliteBook 8540p Notebook PC Technical Specifications Optional HP Extended Life Optional HP Extended Life Optional HP Extended Life Optional HP Extended Life Dimensions...
Page 23 QuickSpecs HP EliteBook 8540p Notebook PC HP EliteBook 8540p Notebook PC HP EliteBook 8540p Notebook PC HP EliteBook 8540p Notebook PC Technical Specifications Displays Displays Displays Displays 15.6-inch LED HD (1366 15.6-inch LED HD (1366 15.6-inch LED HD (1366 15.6-inch LED HD (1366...
Page 24 QuickSpecs HP EliteBook 8540p Notebook PC HP EliteBook 8540p Notebook PC HP EliteBook 8540p Notebook PC HP EliteBook 8540p Notebook PC Technical Specifications 500 GB 7200 rpm SATA 500 GB 7200 rpm SATA 500 GB 7200 rpm SATA 500 GB 7200 rpm SATA...
Page 25 QuickSpecs HP EliteBook 8540p Notebook PC HP EliteBook 8540p Notebook PC HP EliteBook 8540p Notebook PC HP EliteBook 8540p Notebook PC Technical Specifications 250 GB 7200 rpm SATA 250 GB 7200 rpm SATA 250 GB 7200 rpm SATA 250 GB 7200 rpm SATA...
Page 26 QuickSpecs HP EliteBook 8540p Notebook PC HP EliteBook 8540p Notebook PC HP EliteBook 8540p Notebook PC HP EliteBook 8540p Notebook PC Technical Specifications DVD-ROM Drive DVD-ROM Drive DVD-ROM Drive DVD-ROM Drive Access Times Access Times Access Times Access Times Random <...
Page 27 QuickSpecs HP EliteBook 8540p Notebook PC HP EliteBook 8540p Notebook PC HP EliteBook 8540p Notebook PC HP EliteBook 8540p Notebook PC Technical Specifications Blu-ray R/RE DVD+/-RW Blu-ray R/RE DVD+/-RW Blu-ray R/RE DVD+/-RW Blu-ray R/RE DVD+/-RW Access Times Access Times Access Times...
Page 28 QuickSpecs HP EliteBook 8540p Notebook PC HP EliteBook 8540p Notebook PC HP EliteBook 8540p Notebook PC HP EliteBook 8540p Notebook PC Technical Specifications Blu-ray ROM DVD+/-RW Blu-ray ROM DVD+/-RW Blu-ray ROM DVD+/-RW Blu-ray ROM DVD+/-RW Access Times Access Times Access Times...
Page 29 QuickSpecs HP EliteBook 8540p Notebook PC HP EliteBook 8540p Notebook PC HP EliteBook 8540p Notebook PC HP EliteBook 8540p Notebook PC Technical Specifications HP Fingerprint Sensor HP Fingerprint Sensor HP Fingerprint Sensor HP Fingerprint Sensor Mobile Voltage Mobile Voltage Mobile Voltage Mobile Voltage 3.0V-3.6V Single Supply...
Page 30 QuickSpecs HP EliteBook 8540p Notebook PC HP EliteBook 8540p Notebook PC HP EliteBook 8540p Notebook PC HP EliteBook 8540p Notebook PC Technical Specifications Integrated Intel Gigabit Integrated Intel Gigabit Integrated Intel Gigabit Integrated Intel Gigabit Ethernet Features Ethernet Features Ethernet Features Ethernet Features 10 Mbit/s operation (10BASE-T;...
Page 31 QuickSpecs HP EliteBook 8540p Notebook PC HP EliteBook 8540p Notebook PC HP EliteBook 8540p Notebook PC HP EliteBook 8540p Notebook PC Technical Specifications V.21 Bell 212A Bell 103J Fax Mode Capabilities Fax Mode Capabilities Fax Mode Capabilities Fax Mode Capabilities TIA/EIA-578-B (Class 1) T.30, T.4 (Group 3)
Page 32 QuickSpecs HP EliteBook 8540p Notebook PC HP EliteBook 8540p Notebook PC HP EliteBook 8540p Notebook PC HP EliteBook 8540p Notebook PC Technical Specifications Weight Weight Weight Weight 11.5 g Dimensions Dimensions Dimensions Dimensions (Length x 2.01 x 1.18 x 0.18 in (51 x 30 x 5 mm)
Page 33 QuickSpecs HP EliteBook 8540p Notebook PC HP EliteBook 8540p Notebook PC HP EliteBook 8540p Notebook PC HP EliteBook 8540p Notebook PC Technical Specifications Network Architecture Network Architecture Network Architecture Network Architecture Ad-hoc (Peer to Peer) Models Models Models Models Infrastructure (Access Point Required)
Page 34 QuickSpecs HP EliteBook 8540p Notebook PC HP EliteBook 8540p Notebook PC HP EliteBook 8540p Notebook PC HP EliteBook 8540p Notebook PC Technical Specifications Data Rates Data Rates Data Rates Data Rates 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11b: 1, 2, 5.5, 11 Mbps...
Page 35 QuickSpecs HP EliteBook 8540p Notebook PC HP EliteBook 8540p Notebook PC HP EliteBook 8540p Notebook PC HP EliteBook 8540p Notebook PC Technical Specifications Maximum output power may vary by country according to local regulations. In Power Save Polling mode and on battery power.
Page 36 This product has received or is in the process of being certified to the following approvals and may be labeled with one or more of these marks: US Energy Star IT ECO declaration EPEAT - Gold where HP registers commercial desktop products. See http://www.epeat.net for registration status in your country. System Configuration...
Page 37 (RoHS) directive - 2002/95/EC. This HP product is designed to comply with the Waste Electrical and Electronic Equipment (WEEE) Directive - 2002/96/EC. This product is in compliance with California Proposition 65 (State of California; Safe Drinking Water and Toxic Enforcement Act of 1986).
Page 38 Material Usage Material Usage Material Usage Material Usage This product does not contain any of the following substances in excess of regulatory limits (for reference of these limits please refer to the HP General Specification of the Environment: (http://www.hp.com/hpinfo/globalcitizenship/environment/supplychain/ gen_specifications.html): Asbestos...
Page 39 HP products are set forth in the express limited warranty statements accompanying such products. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
