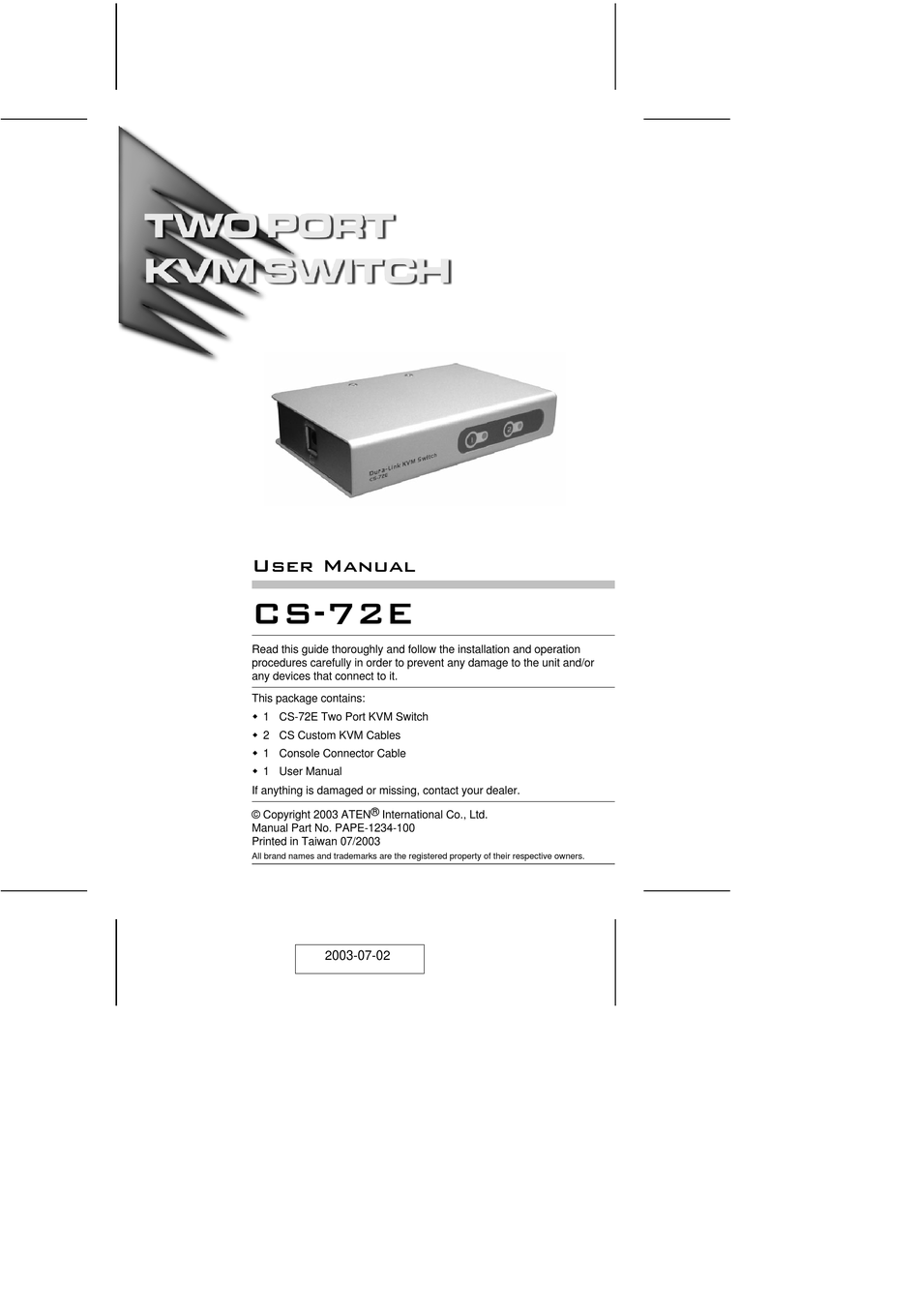

User Manual
User Manual
CS-72E
Read this guide thoroughly and follow the installation and operation
procedures carefully in order to prevent any damage to the unit and/or
any devices that connect to it.
This package contains:
M 1 CS-72E Two Port KVM Switch
M 2 CS Custom KVM Cables
M 1 Console Connector Cable
M 1 User Manual
If anything is damaged or missing, contact your dealer.
© Copyright 2003 ATEN ® International Co., Ltd.
Manual Part No. PAPE-1234-100
Printed in Taiwan 07/2003
All brand names and trademarks are the registered property of their respective owners.
2003-07-02
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ATEN CS-72E
Summary of Contents for ATEN CS-72E
-
Page 1: User Manual
This package contains: M 1 CS-72E Two Port KVM Switch M 2 CS Custom KVM Cables M 1 Console Connector Cable M 1 User Manual If anything is damaged or missing, contact your dealer. - Page 2 Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
- Page 3 Overview The CS-72E KVM (Keyboard, Video, Mouse), Switch is a control unit that allows access to two computers from a single console (keyboard, monitor, and mouse). With its custom designed connectors, the CS-72E reduces the number of ports required for a 2 Port KVM switch from 9 (6 PS/2 and 3 HDB) to...
- Page 4 Features M Compact vertical-standing design M Custom connector layout requires only 3 ports - 2 SPDB-15 female connectors for connecting to the computers - plus a single, integrated, SPDB-15 male connector for the keyboard, video, and mouse console M Easy to install - no software required - connecting cables to the computers is all it takes M Easy to operate - computer selection via selection switches or hotkeys...
-
Page 5: System Requirements
System Requirements Console M A VGA, SVGA, or Multisync monitor capable of the highest resolution that you will be using on any computer in the installation M A PS/2 style keyboard M A PS/2 style mouse Computers The following equipment must be installed on each computer that is to be connected to the system: M A VGA, SVGA or Multisync port. -
Page 6: Front View
Components Front View: 1. Port Selection Switches M Press a switch to give the KVM focus to the system attached to its corresponding port. M Pressing Buttons 1 and 2 simultaneously for 3 seconds starts Auto Scan Mode (see p. 10). M While in Auto Scan Mode, pressing either button exits Auto Scan Mode and switches the KVM focus to its corresponding port. - Page 7 Rear 1. Power Jack The power adapter cable plugs in here. Note: The CS-72E does not require external power. Use of a power adapter is optional, and requires a separate purchase. 2. Console Port Connector* The Console Adapter Cable plugs in here.
-
Page 8: Installation
3. Use the custom KVM cables (described in the Cables section on p. 3), to connect the CS-72E CPU Ports to the monitor, keyboard and mouse ports of the computers you are installing. - Page 9 - 7 - 2003-07-02...
- Page 10 - 8 - 2003-07-02...
-
Page 11: Operation
Operation Controlling the computers in your CS-72E installation from a single console could not be easier. Two port selection methods that provide instant access to the computers are available: M Manual Port Selection M Hotkey Port Selection Manual Port Selection With Manual Port Selection you simply press the appropriate Port Selection switch on the unit’s front panel to give the KVM... - Page 12 Auto Scan Mode: The CS-72E’s Auto Scan feature automatically switches between the two ports at regular 5 seconds intervals so that you can monitor the computer activity without having to take the trouble of switching yourself. To invoke Auto Scan Mode hold down both Port Selection buttons for 3 seconds (see p.
-
Page 13: Specifications
Specifications Function Specification CPU Ports Port Selection Push Button Switches; Hotkeys Connectors 2 x SPDB-15 F (Yellow) Console 1 x SPDB-15 M (Yellow) LEDs 2 Selected Port (Green) Emulation Keyboard PS/2 Mouse PS/2 Scan Interval 5 secs. Operating Temperature 0 - 50 Storage Temperature -20 - 60 Humidity... -
Page 14: Troubleshooting
Troubleshooting Symptom Cause Action Keyboard Loose cables. Check all cable connections to make and/or sure they are completely seated in Mouse their sockets. Responding Switch is in Auto Scan Press either Port Selection switch or Mode. the Spacebar to exit Auto Scan Mode. Keyboard / Mouse Unplug the keyboard / mouse from the needs to be reset. - Page 15 Troubleshooting Notes: 1. The unit is designed to work with PS/2 keyboards and mice. XT (84 key) and AT keyboards will not work. Serial mice will not work. 2. Some Notebooks, notably the IBM Thinkpad and Toshiba Tecra, have trouble when their mouse and keyboard ports are used simultaneously.
-
Page 16: Limited Warranty
Limited Warranty IN NO EVENT SHALL THE DIRECT VENDOR’S LIABILITY EXCEED THE PRICE PAID FOR THE PRODUCT FROM DIRECT, INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THE PRODUCT, DISK, OR ITS DOCUMENTATION. The direct vendor makes no warranty or representation, expressed, implied, or statutory with respect to the contents or use of this documentation, and especially disclaims its quality, performance, merchantability, or fitness for any particular purpose.
