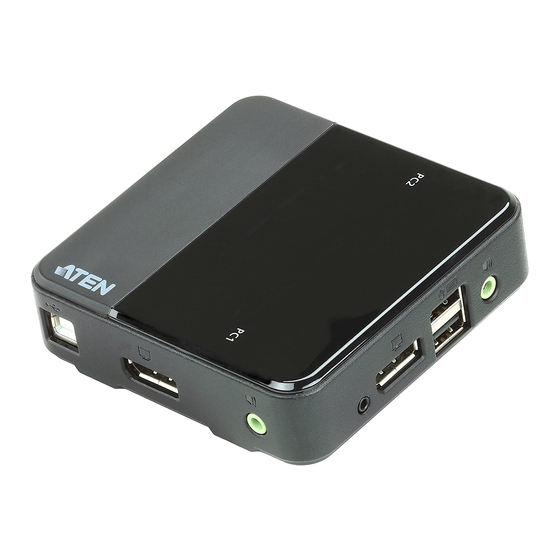

ATEN CS782DP User Manual
2-port usb displayport kvm switch
Hide thumbs
Also See for CS782DP:
- User manual (29 pages) ,
- Quick start manual (2 pages) ,
- User manual (21 pages)
Table of Contents
Advertisement
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ATEN CS782DP
Summary of Contents for ATEN CS782DP

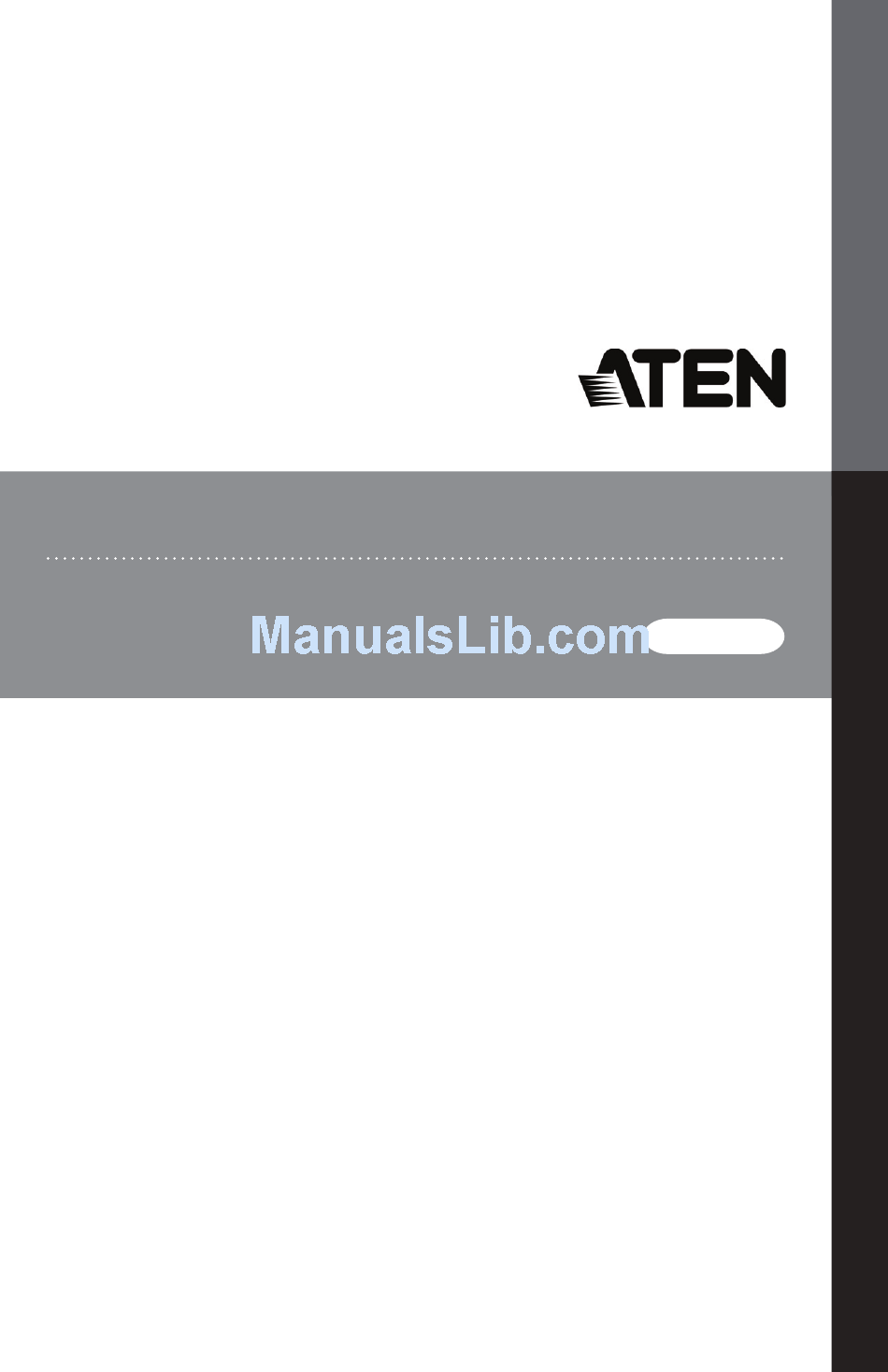

- Page 1 2-Port USB DisplayPort KVM Switch USER MANUAL CS782DP...
-
Page 2: Emc Information
EMC Information FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. -
Page 3: Online Registration
CS782DP User Manual Online Registration International http://eservice.aten.com Telephone Support International 886-2-8692-6959 86-10-5255-0110 China 81-3-5615-5811 Japan Korea 82-2-467-6789 1-888-999-ATEN ext 4988 North America 44-8-4481-58923 United Kingdom Technical Support For international online technical support – including troubleshooting, documentation, and software updates: http://eservice.aten.com... -
Page 4: Package Contents
Copyright © 2015 ATEN International Co., Ltd. Manual Date: 2015-11-20 - Manual Part No. PAPE-1375-AT2G ATEN and the ATEN logo are trademarks of ATEN International Co., Ltd. All rights reserved. All other trademarks are the property of their respective owners. - 4 -... - Page 5 – simply double-click on the scroll wheel of a USB mouse to change ports. Finally, the CS782DP's new Power on detection feature means that if one of the computers is powered off, the CS782DP will automatically switch to the other computer if powered-on. Featuring an unbeatable combination of DisplayPort functionality, USB 2.0 peripheral sharing convenience and enhanced user-...
- Page 6 DisplayPort-to-HDMI/DVI DP++ adapter Compatible with widescreen LCD monitors Power on detection – if either of the computers is powered off, the CS782DP will automatically switch to the other computer Audio-enabled – full bass response provides a rich experience for 2.1 channel surround sound systems...
- Page 7 5. 1. PC keyboard combinations emulate Mac/Sun keyboards. 2. Mac/Sun keyboards work only with their own computers. 6. This feature may require an extra power adapter to be connected to the USB hub and that the CS782DP’s Mouse Emulation Mode be disabled - 7 -...
-
Page 8: System Requirements
A DisplayPort video port USB Type A port Speaker port (optional) Cables Two DisplayPort cables, two USB 2.0 cables and two 3.5mm Audio Jack cables included with the CS782DP package Operating Systems Supported operating systems are shown in the table, below: Version Windows 2000 / XP / Vista / 7 / 8 / 8.1 / 10... - Page 9 Components CS782DP Console Port Computer Port 1 Computer Port 2 Component Description Console Audio Port Your console speakers and microphone plug in here. Console Monitor Port Your console DisplayPort monitor plugs in here. Console Keyboard Port Your console USB keyboard plugs in here.
-
Page 10: Installation
1. Plug your keyboard and mouse into the console Keyboard/ Mouse ports located on the front side of the CS782DP. The ports are labeled with icons with the mouse port on the top and the keyboard port on the bottom. -
Page 11: Installation Diagram
Note: By default, the switch links to the first computer that is powered on. The total cable length from the PC to monitor (including KVM) cannot exceed 3 meters. Choosing high quality cables helps to ensure that 4K UHD (3840x2160@60Hz) resolutions can be reached. -
Page 12: Operation
Operation The CS782DP provides three convenient methods of selecting computers: Manual – click the pushbutton on the Remote Port Selector; Mouse – click the mouse’s scroll wheel; and Hotkey – enter combinations from the keyboard. Note: Wait a few seconds for the output device to stabilize and display the input source’s video content before switching... -
Page 13: Hotkey Port Selection
Hotkey Port Selection All hotkey operations begin by tapping the Scroll Lock key twice. To toggle the KVM and Audio focus between the two ports, tap Scroll Lock twice and then press Enter. See the Hotkey Summary Table, page 14, for full details. Note: If using [Scroll Lock] conflicts with other programs, [Ctrl] can be used instead. -
Page 14: Hotkey Summary Table
Hotkey Summary Table Combination Function [Scroll Lock] [Enter] Toggles the KVM and Audio focus between the two ports. If the KVM [Scroll Lock] and Audio focus are on different ports, only the KVM focus switches. [k] [Enter] Only toggles the KVM focus. [s] [Enter] Only toggles the Audio focus. -
Page 15: Keyboard Emulation
Keyboard Emulation PC Keyboard Mac Keyboard PC Keyboard Sun Keyboard [Shift] Shift [Ctrl] [T] Stop [Ctrl] Ctrl [Ctrl] [F2] Again [Ctrl] [F3] Props [Ctrl] [1] [Ctrl] [F4] Undo [Ctrl] [2] [Ctrl] [F5] Front [Ctrl] [3] [Ctrl] [F6] Copy [Ctrl] [4] [Ctrl] [F7] Open [Alt]... -
Page 16: The Firmware Upgrade Utility
USB port on the computer you have downloaded the Firmware Upgrade package to. Then, use the keyboard connected to the CS782DP to key in the following hotkeys: "u""p""g""r""a""d""e". 3. The CS782DP now enters Firmware Upgrade Mode. The two Ports LEDs flash together to indicate that the unit is in Firmware Upgrade Mode. - Page 17 As the upgrade proceeds, status messages appear in the Status Messages panel, and the progress towards completion is shown in the Progress bar. 8. After the upgrade has completed, a screen appears to inform you that procedure was successful. Click Finish to close the Firmware Upgrade Utility.
-
Page 18: Troubleshooting
2. Press and hold the Remote Port Selector’s pushbutton. While you are still holding the pushbutton, reconnect the KVM cable’s USB connectors to the computer. 3. Power on the CS782DP. Follow steps 3 to 9 on pages 16-17 again. Troubleshooting... -
Page 19: Specifications
Specifications Function CS782DP Computer Connections Port Selection Hotkey, Mouse, Remote Port Selector Connectors Console Ports 2 x USB Type A Female (Black) 1 x DisplayPort Female (Black) 1 x 3.5mm Audio Jack Female (Green) KVM Ports 2 x USB Type B Female (White) 2 x DisplayPort Female (Black) 2 x 3.5mm Audio Jack Female (Green) -
Page 20: Factory Default Hotkey Settings
Factory Default Hotkey Settings Setting Default Port Switching [Scroll Lock] [Scroll Lock] Auto Scan Interval 5 seconds Keyboard Operating Platform PC Compatible Mouse Emulation Mouse Port-Switching Power on Detection Enabled Limited Warranty IN NO EVENT SHALL THE DIRECT VENDOR'S LIABILITY EXCEED THE PRICE PAID FOR THE PRODUCT FROM THE DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THE PRODUCT, DISK OR ITS DOCUMENTATION.
