Network

Network
Network Network
2.2.1 2.2.1 Wan Wan
2.2.1 2.2.1 Wan

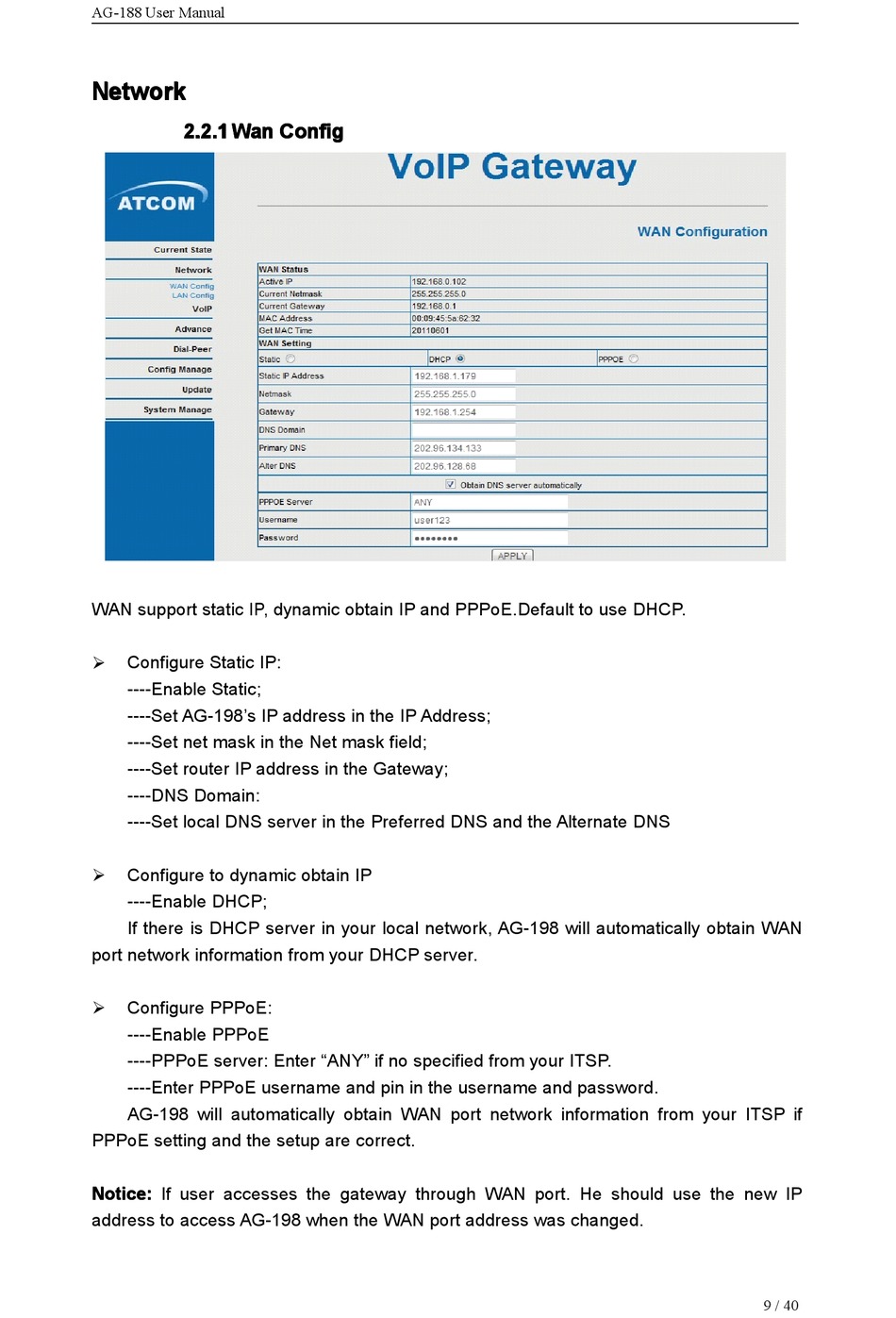

Wan Config

WAN support static IP, dynamic obtain IP and PPPoE.Default to use DHCP.
�
Configure Static IP:
----Enable Static;
----Set AG-198's IP address in the IP Address;
----Set net mask in the Net mask field;
----Set router IP address in the Gateway;
----DNS Domain:
----Set local DNS server in the Preferred DNS and the Alternate DNS
�
Configure to dynamic obtain IP
----Enable DHCP;
If there is DHCP server in your local network, AG-198 will automatically obtain WAN
port network information from your DHCP server.
� Configure PPPoE:
----Enable PPPoE
----PPPoE server: Enter "ANY" if no specified from your ITSP.
----Enter PPPoE username and pin in the username and password.
AG-198 will automatically obtain WAN port network information from your ITSP if
PPPoE setting and the setup are correct.
Notice: Notice: If user accesses the gateway through WAN port. He should use the new IP Notice: Notice:
address to access AG-198 when the WAN port address was changed.
Config Config
Config
9 / 40
