User Manual
Trademarks
Copyright PLANET Technology Corp. 2002.
Contents subject to revision without prior notice.
PLANET is a registered trademark of PLANET Technol-
ogy Corp. The information in this manual is subject to
change without notice. All other trademarks belong to
their respective owners.
FCC Warning
This equipment has been tested and found to comply
with the regulations for a Class B digital device, pur-
suant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against
harmful interference when the equipment is operated in
a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not
installed and used in accordance with this user's guide,
may cause harmful interference to radio communica-
tions. Operation of this equipment in a residential area
is likely to cause harmful interference, in which case the
user will be required to correct the interference at his
own expense.
CE Mark Warning
This is a Class B product. In a domestic environment,
this product may cause radio interference, in which case
the user may be required to take adequate measures.
Revision
User's manual for PLANET Fast Ethernet Smart Media
Converter
For Models: WGT-702, WGT702S
Rev 1.0 (Dec. 2002)
Part No. EM-WGT7v1
Advertisement
Table of Contents
Related Manuals for Planet WGT-702
Summary of Contents for Planet WGT-702
-
Page 1: Fcc Warning

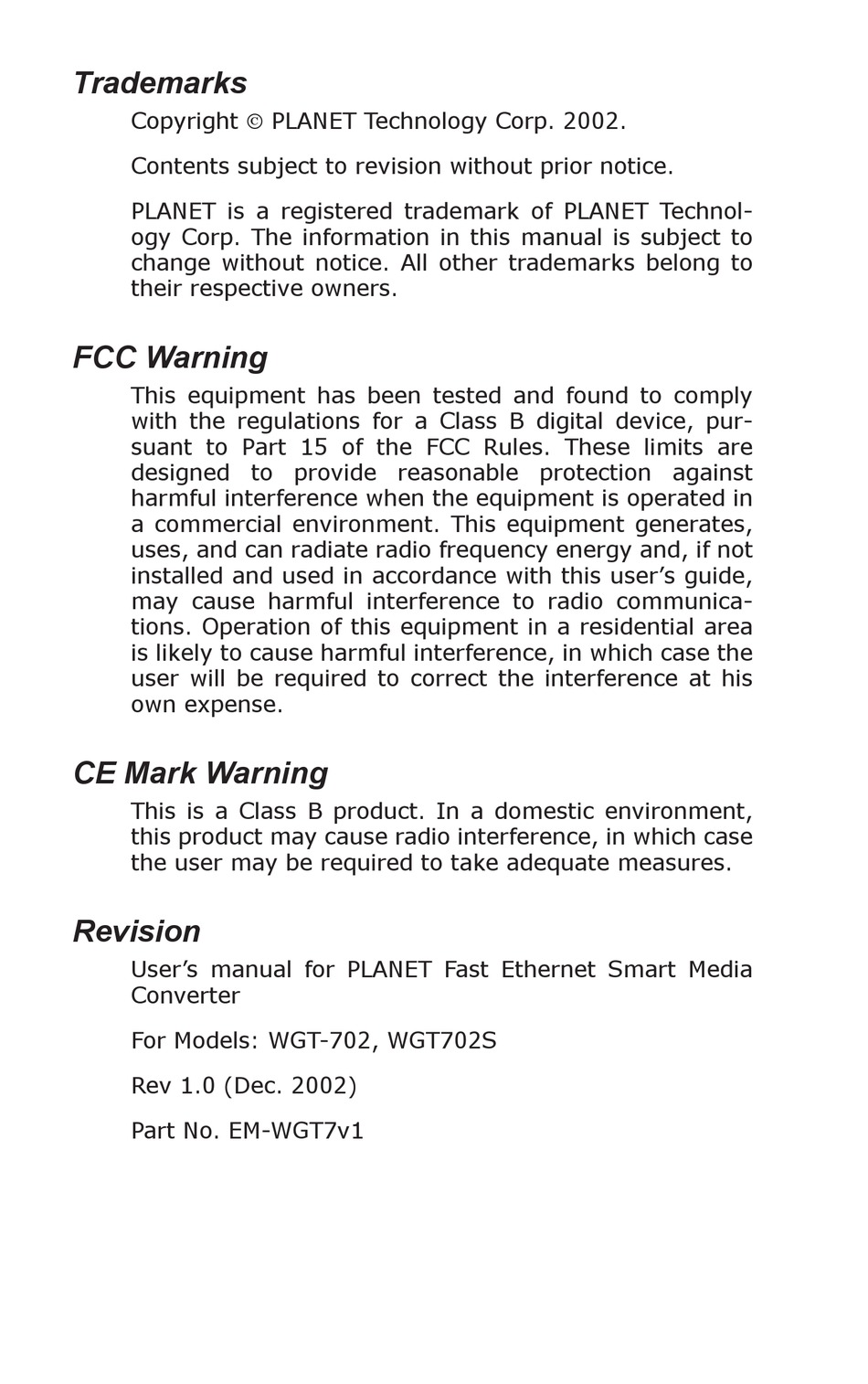

Trademarks Copyright PLANET Technology Corp. 2002. Contents subject to revision without prior notice. PLANET is a registered trademark of PLANET Technol- ogy Corp. The information in this manual is subject to change without notice. All other trademarks belong to their respective owners. -
Page 2: Table Of Contents
Table of Contents Chapter 1 OVERVIEW Chapter 2 PRODUCT FEATURES Chapter 3 MODEL LIST Chapter 4 CHECKLIST Chapter 5 DIP SWITCH Chapter 6 INSTALLING THE CONVERTER 6.1 Used as a stand-alone converter 6.2 Used with WMC-1600R converter chassis Chapter 7 MANAGE MEDIA CONVERTER Chapter 8 LED INDICATORS... -
Page 3: Overview
Thank you for choosing the 1000Mbps Gigabit Ethernet Media Converter, The Converter introduced here provides one channel media conversion between 1000Base-TX and 1000Base-SX/LX. About Media Converter This Smart Media Converter WGT-702 utilizes a network technology specified by IEEE802.3ab and IEEE802.3z 1000Base- T/LX/SX standards. About Link Pass Through... -
Page 4: Product Features
Chapter 2 PRODUCT FEATURES = One-channel media conversion between 1000Base-TX and 1000Base-FX = Fiber media allows: multi-mode fiber and single-mode fiber using SC connector = Link Pass Through function = Auto negotiation of duplex mode on TX port = Auto MDI/MDI-X for TX port = Full wire-speed forwarding rate = Front panel status LEDs = Used as a stand-alone device or with a chassis... -
Page 5: Chapter 3 Model List
Chapter 3 MODEL LIST Your Gigabit Ethernet Converter comes with one of the following models. ð WGT-702 1000Baes-SX Multimode, SC ð WGT-702S 1000Baes-LX Singlemode, SC, 10km In the following sections, the term “WGT-702" indicates the product family above. -
Page 6: Chapter 4 Checklist
Chapter 4 CHECKLIST Your WGT-702 carton should contain the following items: ð The Gigabit Ethernet Converter ð AC-DC Power Adapter (Output: 7.5VDC, 1.5 A max.) ð This user’s manual If any item is missing or damaged, please consult the dealer from... -
Page 7: Chapter 5 Dip Switch
Chapter 5 DIP SWITCH There is a DIP switch for the setting on fiber port. Refer to the table below for more details. Fiber is Forced Mode Switch 1 Fiber is Auto-Negotiation (default) LLR enable Switch 2 LLR disable (default) Note: 1.Be sure the opposite end is using the same setting (forced or Auto-negotiation). -
Page 8: Used As A Stand-Alone Converter
Step 1- Turn off the power of the device in a network to which WGT-702 will be attached Step 2- Ensure that there is no activity in the network Step 3- Attach fiber cable from the WGT-702 to the fiber network. Step 4- TX, RX must be paired at both ends Step 5- Attach a Cat. -
Page 9: Used With Wmc-1600R Converter Chassis
6.2 Used with WMC-1600R converter chassis Step 1- Unscrew and pull out the media converter board Step 2- Remove a blank faceplate from an empty expansion slot on the front of the chassis. The module can be installed in any expansion slot. Step 3- Slide the module into the expansion slot, aligning it with the guiderails, until it firmly connects to the chassis’... -
Page 10: Manage Media Converter
Chapter 7 MANAGE MEDIA CONVERTER The Intelligent Media Converter Chassis that can control WGT-702 through the management system, this WGT-702 can be controlled through Web Browser, SNMP management utility and terminal emulation program. The Intelligent Media Converter Chassis will detect the setting on the DIP switches and display out the status, also the Chassis can control the function through the maanagement system. -
Page 11: Led Indicators
Chapter 8 LED INDICATORS The LED indicators give you instant feedback on status of the converter: LINK/ACT ○ ○ LEDs Status Indication Lights on Power on Lights off Power off (Power) Lights on Linking LINK/ACT Lights Blinking Data transmitting and receiving Lights off Not Linking... -
Page 12: Link Pass Through Function
The diagram below shows a typical network configuration with a good link status using WGT-702 for remote connectivity. If the connection breaks, WGT-702 that link loss forward to the switch/hub which generates a trap to the management station. The administrator can then determine the source of the problem. - Page 13 Link Loss Return (LLR) The fiber ports of WGT-702 have been designed with an LLR function for troubleshooting a remote connection. LLR works in conjunction with LLCF. When LLR is enabled*, the port’s transmitter shuts down when its receiver fails to detect a valid receive link. LLR should only be enabled on one end of the link and is typically enabled on either the unmanaged or remote device.
-
Page 14: Product Specification
Chapter 10 PRODUCT SPECIFICATION IEEE802.3 10T Standards IEEE802.3u 100TX, 100FX Duplex Mode Full Duplex Mode PWR, LINK/ACT Indicators 1000 Base-T -- 4 pair Cat. 5, EIA/TIA-568 100-ohm screened twisted-pair (STP), up to 100m 1000 Base-SX -- 62.5/125μm multi-mode fiber optic cable, Cable up to 220m 50/125μm multi-mode fiber optic cable,... - Page 15 Part No.:EM-WGT7v1...
