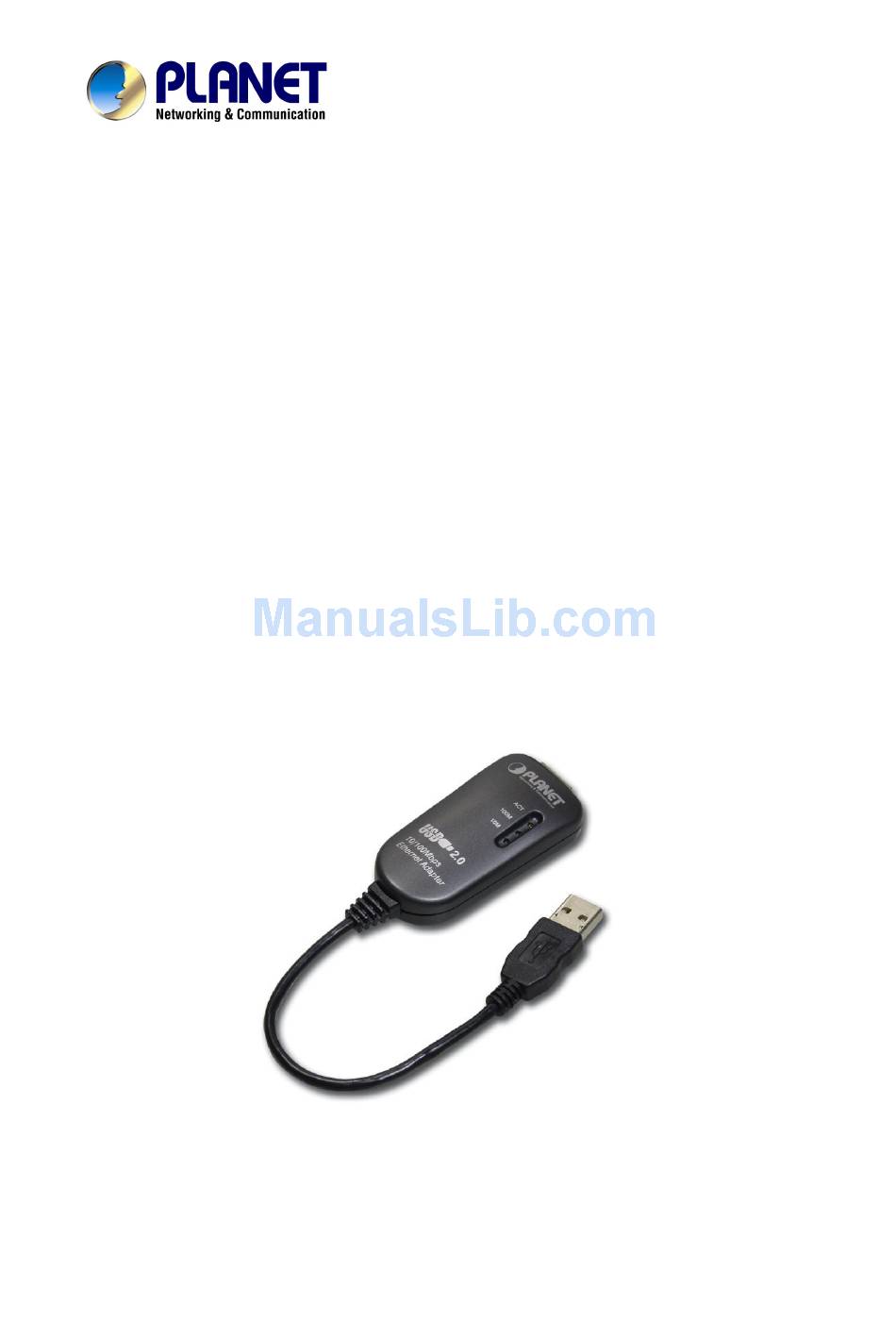

  • Page 1 USB2.0 to Fast Ethernet Adapter UE-9520 User Manual...
  • Page 2: Federal Communication Commission Interference Statement

    Copyright Copyright 2003 by PLANET Technology Corp. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of PLANET.
  • Page 3 The ETSI version of this device is also authorized for use in EFTA member states Iceland, Liechtenstein, Norway and Switzerland. Potential restrictive use France: Only channels 10,11,12 and 13 Revision User’s Manual for PLANET USB2.0 to Fast Ethernet Adapter Model: UE-9520 Rev: 1.0 (January, 2004) Part No. EM-UE9520V1...
  • Page 4: Table Of Contents

    Table of Contents CHAPTER 1 INTRODUCTION........1 1.1 F ............................. 1 EATURES 1.2 S ..........................2 PECIFICATION 1.3 P ........................2 ACKAGE ONTENTS 1.4 M ....................2 INIMUM YSTEM EQUIREMENTS CHAPTER 2 INSTALLATION PROCEDURE ....3 2.1 W 98/M /2000 D .................. 3 INDOWS RIVER NSTALLATION...
  • Page 5: Chapter 1 Introduction

    Chapter 1 Introduction Thanks you for purchasing our UE-9520. This guide is to provide the installation and usage of this adapter for network installers and users. The USB2.0 Fast Ethernet Adapter provides a convenient and cost-effective way of connect the notebook or desktop PCs to an IEEE 802.3/802.3u standard Fast Ethernet network through the Universal...
  • Page 6: Specification

    1.2 Specification Model UE-9520 Network Standard IEEE 802.3 10BaseT, IEEE 802.3u 100BaseTX USB Standard USB2.0 compliant Data Transfer Rate LAN: 10/20Mbps, 100/200Mbps USB2.0: 12/480Mbps Connectors One RJ-45 One USB Type A LED indicators 3: ACT, 100M, 10M Driver support Windows 98/Me/2000/XP/2003...
  • Page 7: Chapter 2 Installation Procedure

    Note: The following installation operates under Window 2000. Procedures will be similar to Window 98/Me. About Windows XP/2003 driver installation, please refer to next section. Plug UE-9520 into your PC’s USB port. Power on the PC and insert Driver and User’s manual CD into CD-ROM drive.
  • Page 8 You can click “Browse” to find the driver location. (Assume "E" is your CD-ROM drive, the driver can be found in E:\Driver\UE-9520\Win2000). Please click “OK” to continue. Windows will show this screen to prompt you that it found a driver for the device you are...
  • Page 9 Windows 2000 may tell you this driver doesn’t contain Microsoft digital signature. Please don’t worry about this, click “Yes” to continue the installation. Please click “Finish” to complete the driver installation. (For Win98/Me, Windows will ask you to restart your PC when driver installation finished.)
  • Page 10: Windows Xp/2003 Driver Installation

    Plug UE-9520 into your PC’s USB port. Power on the PC and insert Drivers and User’s manual CD into CD-ROM drive. Windows XP will detect UE-9520 and ask you to install driver. Please select the second option and click “Next”.
  • Page 11 WinXP will show you this dialog box to prompt you the driver has not passed Windows logo testing, please press “Continue Anyway” to continue. Please click “Finish” to complete the driver installation.
  • Page 12: Appendix A Advanced Properties

    Appendix A Advanced Properties The default settings of the adapter should work in most cases. However, if you experience any unusual circumstances during your installation, these settings may help you to trouble shoot the adapter. Do not change any of these settings without a thorough understanding of the specifics of your network. The following table briefly explains the function of each property.
  • Page 13: Appendix B Faq

    USB device plug into a low speed USB device”, what is it mean? Does it meter ? A: When Windows show this message, it is mean you connect UE-9520 into a USB 1.1 port. UE-9520 is a USB 2.0 device, when you connect USB2.0 device into a USB 1.1 port, Windows will show you the message to prompt you the USB 2.0 device will work as a USB...
