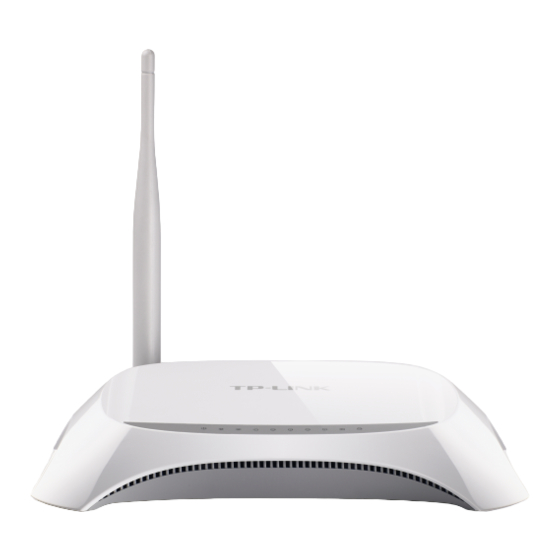

TP-Link TL-MR3220 User Manual

3g/4g wireless n router
Hide thumbs Also See for TL-MR3220:
Table of Contents

Advertisement

Quick Links

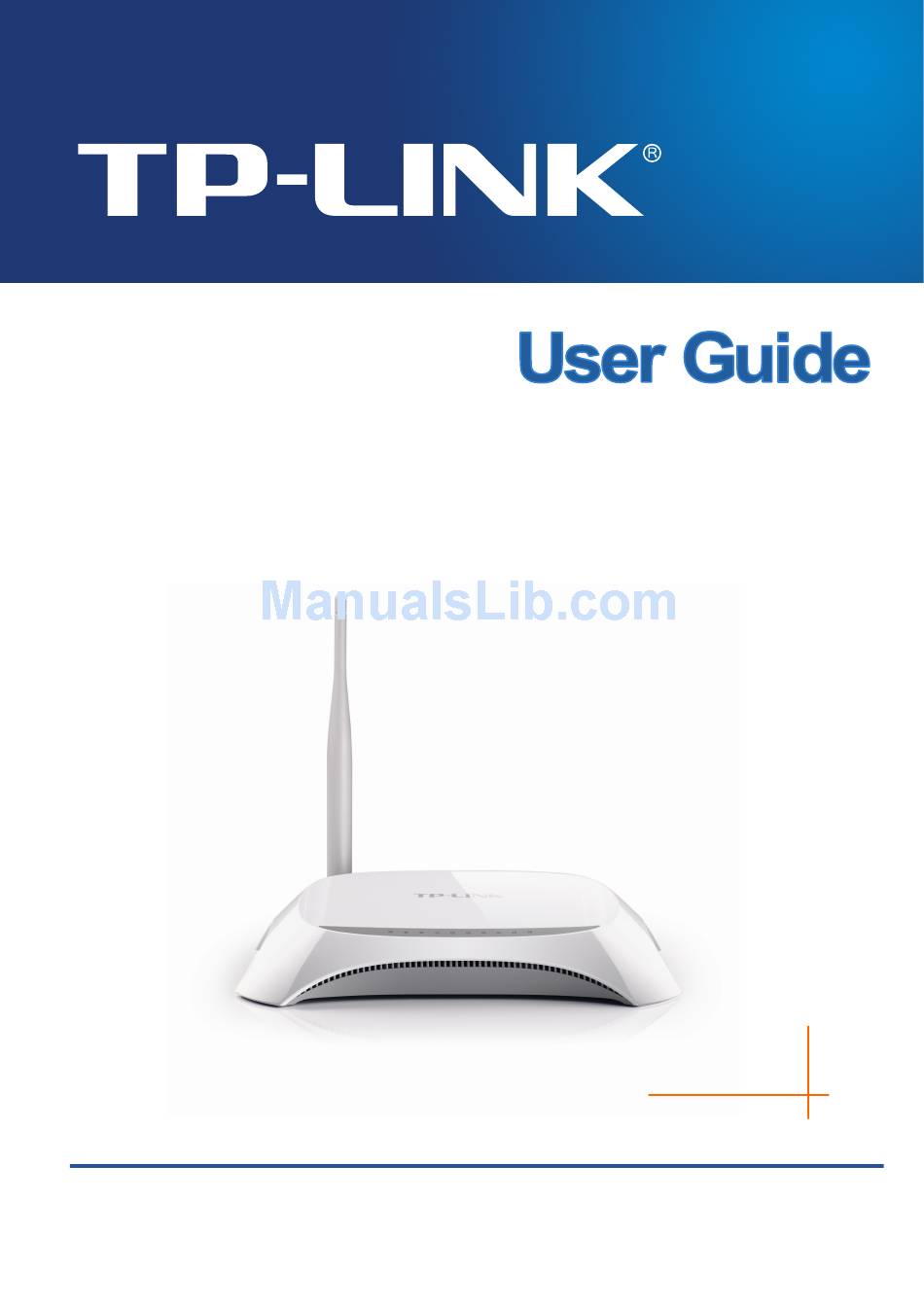

TL-MR3220
3G/4G Wireless N Router
Rev: 2.0.0
1910010587

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TL-MR3220 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TP-Link TL-MR3220

Summary of Contents for TP-Link TL-MR3220

  • Page 1 TL-MR3220 3G/4G Wireless N Router Rev: 2.0.0 1910010587...
  • Page 2 Specifications are subject to change without notice. is a registered trademark of TP-LINK TECHNOLOGIES CO., LTD. Other brands and product names are trademarks or registered trademarks of their respective holders. No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from TP-LINK TECHNOLOGIES CO., LTD.

  • Page 3: Fcc Statement

    FCC STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

  • Page 4: Ce Mark Warning

    CE Mark Warning This is a class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures. National Restrictions This device is intended for home and office use in all EU countries (and other countries following the EU directive 1999/5/EC) without any limitation except for the countries mentioned below: Country Restriction...
  • Page 5 IMPORTANT NOTE: Radiation Exposure Statement: This equipment complies with Canada radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. Ce dispositif est conforme à la norme CNR-210 d’Industrie Canada applicable aux appareils radio exempts de licence.

  • Page 6: Declaration Of Conformity

    TP-LINK TECHNOLOGIES CO., LTD DECLARATION OF CONFORMITY For the following equipment: Product Description: 3G/4G Wireless N Router Model No.: TL-MR3220 Trademark: TP-LINK We declare under our own responsibility that the above products satisfy all the technical regulations applicable to the product within the scope of Council Directives:...

  • Page 7: Table Of Contents

    CONTENTS Package Contents ....................... 1 Chapter 1. Introduction..................2 Overview of the Router....................2 Conventions ......................... 2 Main Features ......................2 Panel Layout ........................ 3 1.4.1 The Front Panel ....................3 1.4.2 The Rear Panel ....................4 1.4.3 The Side Plate ....................5 Chapter 2.
  • Page 8 4.7.1 DHCP Settings ....................46 4.7.2 DHCP Clients List ................... 47 4.7.3 Address Reservation ..................48 Forwarding ......................... 49 4.8.1 Virtual Servers ....................49 4.8.2 Port Triggering ....................51 4.8.3 DMZ........................ 53 4.8.4 UPnP ......................54 Security ........................55 4.9.1 Basic Security....................55 4.9.2 Advanced Security..................
  • Page 9 4.16.5 Backup & Restore................... 82 4.16.6 Reboot ......................83 4.16.7 Password......................83 4.16.8 System Log..................... 84 4.16.9 Statistics ......................86 Appendix A: FAQ....................... 88 Appendix B: Configuring the PCs ................93 Appendix C: Specifications..................97 Appendix D: Glossary ....................98 Appendix E: Compatible 3G/4G USB Modem ............

  • Page 10: Package Contents

    3G/4G Wireless N Router User Guide Package Contents The following items should be found in your package: TL-MR3220 3G/4G Wireless N Router DC Power Adapter for TL-MR3220 3G/4G Wireless N Router Quick Installation Guide Resource CD for TL-MR3220 3G/4G Wireless N Router, including: •...

  • Page 11: Chapter 1. Introduction

    3G/4G and WAN Broadband The TL-MR3220 3G/4G Wireless N Router provides 3G/4G and WAN (xDSL, static IP, or dynamic IP) two kinds of broadband connections to get on the Internet, you can via the Internet no matter at home or outside on business. Automatic 3G/4G and WAN failover feature just provide nonstop internet connection.

  • Page 12: Panel Layout

    TL-MR3220 3G/4G Wireless N Router User Guide Compatible with LTE/HSPA/UMTS/EVDO USB dongle Automatic 3G/4G / WAN failover Wireless N speed up to 150Mbps 1T2R MIMO, CCA technologies deliver greater coverage and higher speed Wireless security encryption easily at a push of “WPS” button WDS wireless bridge provides seamless bridging to expand your wireless network Backward compatible with 802.11b and 802.11g devices...

  • Page 13: The Rear Panel

    POWER: The Power socket is where you will connect the power adapter. Please use the power adapter provided with this TL-MR3220 3G/4G Wireless N Router. ON/OFF: The switch is for you to turn on/off the Router, but only with the Router powered...

  • Page 14: The Side Plate

    TL-MR3220 3G/4G Wireless N Router User Guide 1.4.3 The Side Panel Figure 1-3 Side Panel sketch The following parts are located on the side plate (View from left to right). WIFI: This switch is an easy and convenient operation for you to turn on or off the wireless network.

  • Page 15: Chapter 2. Connecting The Router

    DSL/Cable Modem to the WAN port of the Router (as shown in Figure 2-2). Please visit our website http://www.tp-link.com to get the latest USB modems compatibility, and we recommend you to check whether the modem in your hand has already been tested by us.
  • Page 16 TL-MR3220 3G/4G Wireless N Router User Guide Figure 2-1 Hardware Installation of the 3G/4G Wireless N Router – 3G/4G connection Figure 2-2 Hardware Installation of the 3G/4G Wireless N Router – WAN connection...

  • Page 17: Chapter 3. Quick Installation Guide

    TL-MR3220 3G/4G Wireless N Router User Guide Chapter 3. Quick Installation Guide This chapter will show you how to configure the basic functions of your 3G/4G Wireless N Router using Quick Setup Wizard within minutes. 3.1 TCP/IP Configuration The default IP address of the 3G/4G Wireless N Router is 192.168.0.1. And the default Subnet Mask is 255.255.255.0.
  • Page 18 TL-MR3220 3G/4G Wireless N Router User Guide Figure 3-4 Login Windows Note: If the above screen does not pop-up, it means that your Web-browser has been set to a proxy. Go to Tools menu>Internet Options>Connections>LAN Settings, in the screen that appears, cancel the Using Proxy checkbox, and click OK to finish it.
  • Page 19 TL-MR3220 3G/4G Wireless N Router User Guide Figure 3-4 Choose Internet Access Mode 3G/4G Preferred In this mode, the Router will try 3G/4G access first. If 3G/4G access fails and WAN access is valid, or if no 3G/4G USB modem is inserted, the Router would switch to WAN access.
  • Page 20 TL-MR3220 3G/4G Wireless N Router User Guide Location - Select the location where you're enjoying the 3G/4G card. Mobile ISP - Select the ISP (Internet Service Provider) you apply to for 3G/4G service. The Router will show the default Dial Number and APN of that ISP. If your ISP is not listed in the Mobile ISP, check the box before Set the Dial Number, APN, Username and Password manually and fill the Dial Number and APN blanks below.
  • Page 21 TL-MR3220 3G/4G Wireless N Router User Guide Channel - This field determines which operating frequency will be used. The default channel is set to Auto, so the AP will choose the best channel automatically. It is not necessary to change the wireless channel unless you notice interference problems with another nearby access point.
  • Page 22 TL-MR3220 3G/4G Wireless N Router User Guide Figure 3-8 Quick Setup – Finish After the rebooting, please check whether you can access the Internet or not in the 4.2 Status page. -13-...

  • Page 23: Chapter 4. Configuring The Router

    TL-MR3220 3G/4G Wireless N Router User Guide Chapter 4. Configuring the Router This chapter will show each Web page's key functions and the configuration way. 4.1 Login After your successful login, you will see the fifteen main menus on the left of the Web-based utility.

  • Page 24: Quick Setup

    TL-MR3220 3G/4G Wireless N Router User Guide Figure 4-1 Status 4.3 Quick Setup Please refer to Section 3.2: "Quick Installation Guide." 4.4 WPS This section will guide you to add a new wireless device to an existing network quickly by WPS (Wi-Fi Protected Setup) function.
  • Page 25 TL-MR3220 3G/4G Wireless N Router User Guide Figure 4-2 WPS WPS Status - Enable or disable the WPS function here. Current PIN - The current value of the Router's PIN displayed here. The default PIN of the Router can be found in the label or User Guide.
  • Page 26 TL-MR3220 3G/4G Wireless N Router User Guide Step 3: Wait for a while until the next screen appears. Click Finish to complete the WPS configuration. The WPS Configuration Screen of wireless adapter Method Two: Step 1: Press the WPS/RESET button on the rear panel of the Router.
  • Page 27 TL-MR3220 3G/4G Wireless N Router User Guide The WPS Configuration Screen of wireless adapter Step 3: Wait for a while until the next screen appears. Click Finish to complete the WPS configuration. The WPS Configuration Screen of wireless adapter Method Three:...
  • Page 28 TL-MR3220 3G/4G Wireless N Router User Guide Figure 4-3 Add A New Device Step 2: Choose Press the button of the new device in two minutes and click Connect. Step 3: For the configuration of the wireless adapter, please choose Push the button on my access point in the configuration utility of the WPS as below, and click Next.
  • Page 29 TL-MR3220 3G/4G Wireless N Router User Guide The WPS Configuration Screen of Wireless adapter II. By PIN If the wireless adapter supports Wi-Fi Protected Setup or Quick Secure Setup and the PIN method, you can add it to the network by PIN with the following two methods.
  • Page 30 TL-MR3220 3G/4G Wireless N Router User Guide The WPS Configuration Screen of wireless adapter Note: In this example, the default PIN code of this adapter is 16952898 as the above figure shown. Method Two: Enter the PIN from my Router Step 1: Get the Current PIN code of the Router in Figure 4-2 (each Router has its unique PIN code.

  • Page 31: Network

    TL-MR3220 3G/4G Wireless N Router User Guide You will see the following screen when the new device successfully connected to the network. Note: The status LED on the Router will light green all the time if the device has been successfully added to the network.

  • Page 32: G/4G

    TL-MR3220 3G/4G Wireless N Router User Guide Figure 4-5 Internet Access 3G/4G Preferred In this mode, the Router will try 3G/4G access first; When 3G/4G access fails and WAN access is valid, or when no 3G/4G USB modem is inserted, the Router would switch to WAN access;...
  • Page 33 TL-MR3220 3G/4G Wireless N Router User Guide Router. If your USB modem inserted is supported by the Router, then “Identify successfully” will display in the 3G/4G USB Modem field as shown in Figure 4-6. Note 3G/4G settings are unavailable when the Internet Access mode is set to WAN Only mode. Please...
  • Page 34 TL-MR3220 3G/4G Wireless N Router User Guide Connect Manually - You can configure the Router to make it connect or disconnect manually. After a specified period of inactivity (Max Idle Time), the Router will disconnect your Internet connection, and not be able to re-establish your connection automatically as soon as you attempt to access the Internet again.
  • Page 35 TL-MR3220 3G/4G Wireless N Router User Guide Location / Mobile ISP – These two fields will display the location and the ISP you have selected in the previous page (shown in Figure 4-6). While you tick the below option Set the Dial Number and APN manually, there will be no specific information in these two fields.

  • Page 36: Wan

    TL-MR3220 3G/4G Wireless N Router User Guide To add 3G/4G USB Modem entries, follow the steps below. 1. Download a most recent 3G/4G USB modem configuration file from our website (http://www.tp-link.com). 2. Click the Add New... button in Figure 4-8, and then you will see Figure 4-9.
  • Page 37 TL-MR3220 3G/4G Wireless N Router User Guide This page will display the WAN IP parameters assigned dynamically by your ISP, including IP address, Subnet Mask, Default Gateway, etc. Click the Renew button to renew the IP parameters from your ISP. Click the Release button to release the IP parameters.
  • Page 38 TL-MR3220 3G/4G Wireless N Router User Guide Default Gateway - (Optional) Enter the gateway IP address in dotted-decimal notation provided by your ISP. MTU Size - The normal MTU (Maximum Transmission Unit) value for most Ethernet networks is 1500 Bytes. It is not recommended that you change the default MTU Size unless required by your ISP.
  • Page 39 TL-MR3220 3G/4G Wireless N Router User Guide Connect on Demand - In this mode, the Internet connection can be terminated automatically after a specified inactivity period (Max Idle Time) and be re-established when you attempt to access the Internet again. If you want your Internet connection keeps active all the time, please enter “0”...
  • Page 40 TL-MR3220 3G/4G Wireless N Router User Guide Service Name/AC Name - The service name and AC (Access Concentrator) name, which should not be configured unless you are sure it is necessary for your ISP. In most cases, leaving these fields blank will work.
  • Page 41 TL-MR3220 3G/4G Wireless N Router User Guide Auth Domain - Type in the domain suffix server name based on your location. e.g. NSW / ACT - nsw.bigpond.net.au VIC / TAS / WA / SA / NT - vic.bigpond.net.au QLD - qld.bigpond.net.au MTU Size - The normal MTU (Maximum Transmission Unit) value for most Ethernet networks is 1500 Bytes.
  • Page 42 TL-MR3220 3G/4G Wireless N Router User Guide Figure 4-15 L2TP Settings User Name/Password - Enter the User Name and Password provided by your ISP. These fields are case-sensitive. Dynamic IP/ Static IP - Choose either as you are given by your ISP. Click the Connect button to connect immediately.
  • Page 43 TL-MR3220 3G/4G Wireless N Router User Guide manually. After a specified period of inactivity (Max Idle Time), the Router will disconnect from your Internet connection, and you will not be able to re-establish your connection automatically as soon as you attempt to access the Internet again. To use this option, click the radio button.

  • Page 44: Mac Clone

    TL-MR3220 3G/4G Wireless N Router User Guide If you choose static IP and enter the domain name, you should also enter the DNS assigned by your ISP. And click the Save button. Click the Connect button to connect immediately. Click the Disconnect button to disconnect immediately.

  • Page 45: Lan

    TL-MR3220 3G/4G Wireless N Router User Guide Figure 4-17 MAC Address Clone Some ISPs require that you register the MAC Address of your adapter. Changes are rarely needed here. WAN MAC Address - This field displays the current MAC address of the WAN port. If your ISP requires you to register the MAC address, please enter the correct MAC address into this field in XX-XX-XX-XX-XX-XX format(X is any hexadecimal digit).

  • Page 46: Wireless

    TL-MR3220 3G/4G Wireless N Router User Guide If the new LAN IP Address you set is not in the same subnet, the IP Address pool of the DHCP server will change accordingly at the same time，while the Virtual Server and DMZ Host will not take effect until they are re-configured.
  • Page 47 TL-MR3220 3G/4G Wireless N Router User Guide function of the Router in a region other than one of those specified in this field. If your country or region is not listed, please contact your local government agency for assistance. When you select your local region from the pull-down list, click the Save button, then the Note Dialog appears.

  • Page 48: Wireless Security

    TL-MR3220 3G/4G Wireless N Router User Guide Enable WDS Bridging - Check this box to enable WDS Bridging. With this function, the Router can bridge two or more WLANs. If this checkbox is selected, you will have to set the following parameters as shown below.
  • Page 49 TL-MR3220 3G/4G Wireless N Router User Guide Figure 4-21 Disable Security - If you do not want to use wireless security, select this check box, but it’s strongly recommended to choose one of the following modes to enable security. WEP - It is based on the IEEE 802.11 standard. If you select this check box, you will find a notice in red as show in Figure 4-22.
  • Page 50 TL-MR3220 3G/4G Wireless N Router User Guide • Type - you can choose the type for the WEP security on the pull-down list. The default setting is Automatic, which can select Open System or Shared Key authentication type automatically based on the wireless station's capability and request.

  • Page 51: Wireless Mac Filtering

    TL-MR3220 3G/4G Wireless N Router User Guide • Radius Server IP - Enter the IP address of the Radius Server. • Radius Port - Enter the port that radius service used. • Radius Password - Enter the password for the Radius Server.
  • Page 52 TL-MR3220 3G/4G Wireless N Router User Guide Figure 4-25 Wireless MAC address Filtering To filter wireless users by MAC Address, click Enable. The default setting is Disabled. MAC Address - The wireless station's MAC address that you want to filter.

  • Page 53: Wireless Advanced

    TL-MR3220 3G/4G Wireless N Router User Guide Status - Select Enabled or Disabled for this entry on the Status pull-down list. Click the Save button to save this entry. To modify or delete an existing entry: Click the Modify in the entry you want to modify. If you want to delete the entry, click the Delete.
  • Page 54 TL-MR3220 3G/4G Wireless N Router User Guide Figure 4-27 Wireless Advanced Beacon Interval - Enter a value between 20-1000 milliseconds for Beacon Interval here. The beacons are the packets sent by the Router to synchronize a wireless network. Beacon Interval value determines the time interval of the beacons. The default value is 100.

  • Page 55: Wireless Statistics

    TL-MR3220 3G/4G Wireless N Router User Guide 4.6.5 Wireless Statistics Choose menu “Wireless→Wireless Statistics”, you can see the MAC Address, Current Status, Received Packets and Sent Packets for each connected wireless station. Figure 4-28 The Router attached wireless stations MAC Address - The connected wireless station's MAC address...

  • Page 56: Dhcp Clients List

    TL-MR3220 3G/4G Wireless N Router User Guide Figure 4-30 DHCP Settings DHCP Server - Enable or Disable the DHCP server. If you disable the Server, you must have another DHCP server within your network or else you must configure the computer manually.

  • Page 57: Address Reservation

    TL-MR3220 3G/4G Wireless N Router User Guide Figure 4-31 DHCP Clients List ID - The index of the DHCP Client Client Name - The name of the DHCP client MAC Address - The MAC address of the DHCP client Assigned IP - The IP address that the Router has allocated to the DHCP client.

  • Page 58: Forwarding

    TL-MR3220 3G/4G Wireless N Router User Guide Click the Add New … button. (Pop-up Figure 4-33) Enter the MAC address (in XX-XX-XX-XX-XX-XX format.) and IP address in dotted-decimal notation of the computer you wish to add. Click the Save button when finished.
  • Page 59 TL-MR3220 3G/4G Wireless N Router User Guide Figure 4-35 Virtual Servers Service Port - The numbers of External Ports. You can type a service port or a range of service ports (in XXX – YYY format, XXX is the start port number, YYY is the end port number).

  • Page 60: Port Triggering

    TL-MR3220 3G/4G Wireless N Router User Guide Figure 4-36 Add or Modify a Virtual Server Entry Note If your computer or server has more than one type of available service, please select another service, and enter the same IP Address for that computer or server.
  • Page 61 TL-MR3220 3G/4G Wireless N Router User Guide Figure 4-37 Port Triggering Once the Router is configured, the operation is as follows: 1. A local host makes an outgoing connection using a destination port number defined in the Trigger Port field.

  • Page 62: Dmz

    TL-MR3220 3G/4G Wireless N Router User Guide Select the protocol used for Incoming Ports from the Incoming Protocol drop-down list, either TCP or UDP, or All. Select Enable in Status field. Click the Save button to save the new rule.

  • Page 63: Upnp

    TL-MR3220 3G/4G Wireless N Router User Guide Figure 4-39 DMZ To assign a computer or server to be a DMZ server: Click the Enable radio button. Enter the local host IP Address in the DMZ Host IP Address field. Click the Save button.

  • Page 64: Security

    TL-MR3220 3G/4G Wireless N Router User Guide Status - The port’s status displayed here. “Enabled” means that port is still active. Otherwise, the port is inactive. Click Refresh to update the Current UPnP Settings List. 4.9 Security Figure 4-41 The Security menu There are four submenus under the Security menu as shown in Figure 4-41: Basic Security, Advanced Security, Local Management and Remote Management.

  • Page 65: Advanced Security

    TL-MR3220 3G/4G Wireless N Router User Guide traffic passing through the session conforms to the protocol. SPI Firewall is enabled by factory default. If you want all the computers on the LAN exposed to the outside world, you can disable it.
  • Page 66 TL-MR3220 3G/4G Wireless N Router User Guide Figure 4-43 Advanced Security Packets Statistics Interval (5~60) - The default value is 10. Select a value between 5 and 60 seconds from the drop-down list. The Packets Statistics Interval value indicates the time section of the packets statistics. The result of the statistics is used for analysis by SYN Flood, UDP Flood and ICMP-Flood.

  • Page 67: Local Management

    TL-MR3220 3G/4G Wireless N Router User Guide TCP-SYN-FLOOD Packets Threshold (5~3600) - The default value is 50. Enter a value between 5 ~ 3600. When the current TCP-SYN-FLOOD Packets numbers is beyond the set value, the Router will startup the blocking function immediately.

  • Page 68: Remote Management

    TL-MR3220 3G/4G Wireless N Router User Guide Note: If your PC is blocked but you want to access the Router again, use a pin to press and hold the RESET Button on the rear panel for about 5 seconds to reset the Router’s factory defaults on the Router’s Web-Based Utility.
  • Page 69 TL-MR3220 3G/4G Wireless N Router User Guide Figure 4-46 Parental Control Settings Parental Control - Check Enable if you want this function to take effect, otherwise check Disable. MAC Address of Parental PC - In this field, enter the MAC address of the controlling PC, or you can make use of the Copy To Above button below.
  • Page 70 TL-MR3220 3G/4G Wireless N Router User Guide Enter the allowed domain name of the website, either the full name or the keywords (e.g. google) in the Allowed Domain Name field. Any domain name with keywords in it (www.google.com, www.google.com.cn) will be allowed.

  • Page 71: Access Control

    TL-MR3220 3G/4G Wireless N Router User Guide 3. Click “Parental Control” menu on the left to go back to the Add or Modify Parental Control Entry page: Click Add New... button. Enter 00-11-22-33-44-AA in the MAC Address of Child PC field.

  • Page 72: Rule

    TL-MR3220 3G/4G Wireless N Router User Guide 4.11.1 Rule Choose menu “Access Control → Rule”, you can view and set Access Control rules in the screen as shown in Figure 4-50. Figure 4-50 Access Control Rule Management Enable Internet Access Control - Select the check box to enable the Internet Access Control function, so the Default Filter Policy can take effect.
  • Page 73 TL-MR3220 3G/4G Wireless N Router User Guide 3. Select a host from the Host drop-down list or choose “Click Here To Add New Host List”. 4. Select a target from the Target drop-sown list or choose “Click Here To Add New Target List”.

  • Page 74: Host

    TL-MR3220 3G/4G Wireless N Router User Guide 4.11.2 Host Choose menu “Access Control → Host”, you can view and set a Host list in the screen as shown in Figure 4-52. The host list is necessary for the Access Control Rule.

  • Page 75: Target

    TL-MR3220 3G/4G Wireless N Router User Guide Figure 4-54 Add or Modify a Host Entry For example: If you desire to restrict the internet activities of host with MAC address 00-11-22-33-44-AA, you should first follow the settings below: 1. Click Add New... button in Figure 4-52 to enter the Add or Modify a Host Entry page.
  • Page 76 TL-MR3220 3G/4G Wireless N Router User Guide In Mode field, select IP Address or Domain Name. If you select IP Address, the screen shown is Figure 4-56. In Target Description field, create a unique description for the target (e.g. Target_1).

  • Page 77: Schedule

    TL-MR3220 3G/4G Wireless N Router User Guide For example: If you desire to restrict the internet activities of host with MAC address 00-11-22-33-44-AA in the LAN to access www.google.com only, you should first follow the settings below: 1. Click Add New… button in Figure 4-55 to enter the Add or Modify an Access Target Entry page.

  • Page 78: Advanced Routing

    TL-MR3220 3G/4G Wireless N Router User Guide 4. In Time field, you can select all day-24 hours or you may enter the Start Time and Stop Time in the corresponding field. 5. Click Save to complete the settings. Figure 4-59 Advanced Schedule Settings...

  • Page 79: Static Routing List

    TL-MR3220 3G/4G Wireless N Router User Guide 4.12.1 Static Routing List Choose menu “Advanced Routing → Static Routing List”, you can configure the static route in the next screen (shown in Figure 4-61). A static route is a pre-determined path that network information must travel to reach a specific host or network.

  • Page 80: System Routing Table

    TL-MR3220 3G/4G Wireless N Router User Guide 4.12.2 System Routing Table Choose menu “Advanced Routing → System Routing Table”, you can configure the system routing table in the next screen (shown in Figure 4-63). System routing table views all of the valid route entries in use.

  • Page 81: Rules List

    TL-MR3220 3G/4G Wireless N Router User Guide Figure 4-65 Bandwidth Control Settings Enable Bandwidth Control - Check this box so that the Bandwidth Control settings can take effect. Line Type - Select the right type for you network connection. If you don’t know how to choose, please ask your ISP for the information.

  • Page 82: Ip & Mac Binding

    TL-MR3220 3G/4G Wireless N Router User Guide Figure 4-67 Bandwidth Control Rule Settings Click the Save button. 4.14 IP & MAC Binding Figure 4-68 the IP & MAC Binding menu There are two submenus under the IP &MAC Binding menu (shown in Figure 4-68): Binding Settings and ARP List.
  • Page 83 TL-MR3220 3G/4G Wireless N Router User Guide When you want to add or modify an IP & MAC Binding entry, you can click the Add New… button or Modify button, and then you will go to the next page. This page is used for adding or modifying an IP &...

  • Page 84: Arp List

    TL-MR3220 3G/4G Wireless N Router User Guide 4.14.2 ARP List To manage the computer, you could observe the computers in the LAN by checking the relationship of MAC address and IP address on the ARP list, and you could configure the items on the ARP list also.

  • Page 85: Dyndns.org Ddns

    TL-MR3220 3G/4G Wireless N Router User Guide Figure 4-73 Comexe.cn DDNS Settings To set up for DDNS, follow these instructions: Type the Domain Name received from your dynamic DNS service provider. Type the User Name for your DDNS account. Type the Password for your DDNS account.

  • Page 86: No-Ip.com Ddns

    TL-MR3220 3G/4G Wireless N Router User Guide To set up for DDNS, follow these instructions: Type the User Name for your DDNS account. Type the Password for your DDNS account. Type the Domain Name you received from dynamic DNS service provider here.

  • Page 87: System Tools

    TL-MR3220 3G/4G Wireless N Router User Guide 4.16 System Tools Figure 4-76 The System Tools menu Choose menu “System Tools”, and you can see the submenus under the main menu: Time Settings, Diagnostic, Firmware Upgrade, Factory Defaults, Backup & Restore, Reboot, Password, System Log and Statistics.

  • Page 88: Diagnostic

    TL-MR3220 3G/4G Wireless N Router User Guide NTP Server I/II - Enter the address for the NTP Server, then the Router will get the time from the NTP Server preferentially. In addition, the Router built-in some common NTP Servers, so it can get time automatically once it connects the Internet.
  • Page 89 IP Address/Domain Name - Type the destination IP address (such as 202.108.22.5) or Domain name (such as http://www.tp-link.com) Pings Count - The number of Ping packets for a Ping connection. Ping Packet Size - The size of Ping packet.

  • Page 90: Firmware Upgrade

    TL-MR3220 3G/4G Wireless N Router User Guide Figure 4-79 Diagnostic Results Note: Only one user can use this tool at one time. Options “Number of Pings”, “Ping Size” and “Ping Timeout” are used for Ping function. Option “Tracert Hops” are used for Tracert function.

  • Page 91: Factory Defaults

    3G/4G Wireless N Router User Guide Note: 1) New firmware versions are posted at http://www.tp-link.com and can be downloaded for free. There is no need to upgrade the firmware unless the new firmware has a new feature you want to use. However, when experiencing problems caused by the Router rather than the configuration, you can try to upgrade the firmware.

  • Page 92: Reboot

    TL-MR3220 3G/4G Wireless N Router User Guide • Click the Browse… button to locate the update file for the Router, or enter the exact path to the Setting file in the text box. • Click the Restore button. Note: The current configuration will be covered by the uploading configuration file. The upgrade process lasts for 20 seconds and the Router will restart automatically.

  • Page 93: System Log

    TL-MR3220 3G/4G Wireless N Router User Guide It is strongly recommended that you should change the factory default user name and password of the Router, because all users who try to access the Router's Web-based utility or Quick Setup will be prompted for the Router's default user name and password.
  • Page 94 TL-MR3220 3G/4G Wireless N Router User Guide Figure 4-86 Mail Account Settings From - Your mail box address. The Router would connect it to send logs. To - Recipient’s address. The destination mailbox where the logs would be received. SMTP Server - Your smtp server. It corresponds with the mailbox filled in the From field.

  • Page 95: Statistics

    TL-MR3220 3G/4G Wireless N Router User Guide Log Level - By selecting the log level, only logs of this level will be shown. Refresh - Refresh the page to show the latest log list. Save Log - Click to save all the logs in a txt file.
  • Page 96 TL-MR3220 3G/4G Wireless N Router User Guide Statistics Table: The IP and MAC address are displayed with related statistics. IP/MAC Address The total number of packets received and transmitted by the Packets Router. Total The total number of bytes received and transmitted by the Bytes Router.

  • Page 97: Appendix A: Faq

    TL-MR3220 3G/4G Wireless N Router User Guide Appendix A: FAQ How do I configure the Router to access Internet by ADSL users? First, configure the ADSL Modem configured in RFC1483 bridge model. Connect the Ethernet cable from your ADSL Modem to the WAN port on the Router. The telephone cord plugs into the Line port of the ADSL Modem.
  • Page 98 TL-MR3220 3G/4G Wireless N Router User Guide Some ISPs require that you register the MAC Address of your adapter, which is connected to your cable/DSL Modem during installation. If your ISP requires MAC register, login to the Router and click the "Network" menu link on the left of your browser, and then click "MAC Clone"...
  • Page 99 TL-MR3220 3G/4G Wireless N Router User Guide Figure A-5 Add or Modify a Virtual server Entry Note: Your opposite side should call your WAN IP, which is displayed on the “Status” page. How to enable DMZ Host: Log in to the Router, click the “Forwarding” menu on the left of your browser, and click "DMZ"...
  • Page 100 TL-MR3220 3G/4G Wireless N Router User Guide Figure A-7 Basic Security I want to build a WEB Server on the LAN, what should I do? Because the WEB Server port 80 will interfere with the WEB management port 80 on the Router, you must change the WEB management port number to avoid interference.
  • Page 101 TL-MR3220 3G/4G Wireless N Router User Guide Figure A-9 Virtual Servers Figure A-10 Add or Modify a Virtual server Entry The wireless stations cannot connect to the Router. Make sure the "Wireless Router Radio" is enabled. Make sure that the wireless stations' SSID accord with the Router's SSID.

  • Page 102: Appendix B: Configuring The Pcs

    TL-MR3220 3G/4G Wireless N Router User Guide Appendix B: Configuring the PCs In this section, we’ll introduce how to install and configure the TCP/IP correctly in Windows XP. First make sure your Ethernet Adapter is working, refer to the adapter’s manual if needed.
  • Page 103 TL-MR3220 3G/4G Wireless N Router User Guide Figure B-2 The following TCP/IP Properties window will display and the IP Address tab is open on this window by default. You have two ways to configure the TCP/IP protocol below: Setting IP address automatically...
  • Page 104 TL-MR3220 3G/4G Wireless N Router User Guide Figure B-3 Setting IP address manually a. Select Use the following IP address radio button. And the following items available b. If the Router's LAN IP address is 192.168.0.1, type IP address is 192.168.0.x (x is from 2 to 254), and Subnet mask is 255.255.255.0.
  • Page 105 TL-MR3220 3G/4G Wireless N Router User Guide Figure B-4 Now click OK to keep your settings. -96-...

  • Page 106: Appendix C: Specifications

    TL-MR3220 3G/4G Wireless N Router User Guide Appendix C: Specifications General IEEE 802.11n, IEEE 802.11b, IEEE 802.11g, IEEE 802.3, IEEE Standards 802.3u, IEEE 802.1x, IEEE 802.11e, IEEE 802.11i, IEEE 802.3x Protocols TCP/IP, PPPoE, DHCP, ICMP, NAT, SNTP One RJ45 WAN port,...

  • Page 107: Appendix D: Glossary

    TL-MR3220 3G/4G Wireless N Router User Guide Appendix D: Glossary 802.11n - 802.11n builds upon previous 802.11 standards by adding MIMO (multiple-input multiple-output). MIMO uses multiple transmitter and receiver antennas to allow for increased data throughput via spatial multiplexing and increased range by exploiting the spatial diversity, perhaps through coding schemes like Alamouti coding.
  • Page 108 TL-MR3220 3G/4G Wireless N Router User Guide 152-bit shared key algorithm, as described in the IEEE 802.11 standard. Wi-Fi - A trade name for the 802.11b wireless networking standard, given by the Wireless Ethernet Compatibility Alliance (WECA, see http://www.wi-fi.net), an industry standards group promoting interoperability among 802.11b devices.

  • Page 109: Appendix E: Compatible 3G/4G Usb Modem

    Appendix E: Compatible 3G/4G USB Modem The UMTS/HSPA/EVDO USB modems we’ve tested in the field are listed below. You can find the latest compatibility list in our website: http://www.tp-link.com. Compatible 3G/4G USB Modem (Tested in the field) E398(4G), E392(4G), E122, E1262, E1550, E1552, E156, E156B, E156C,...
