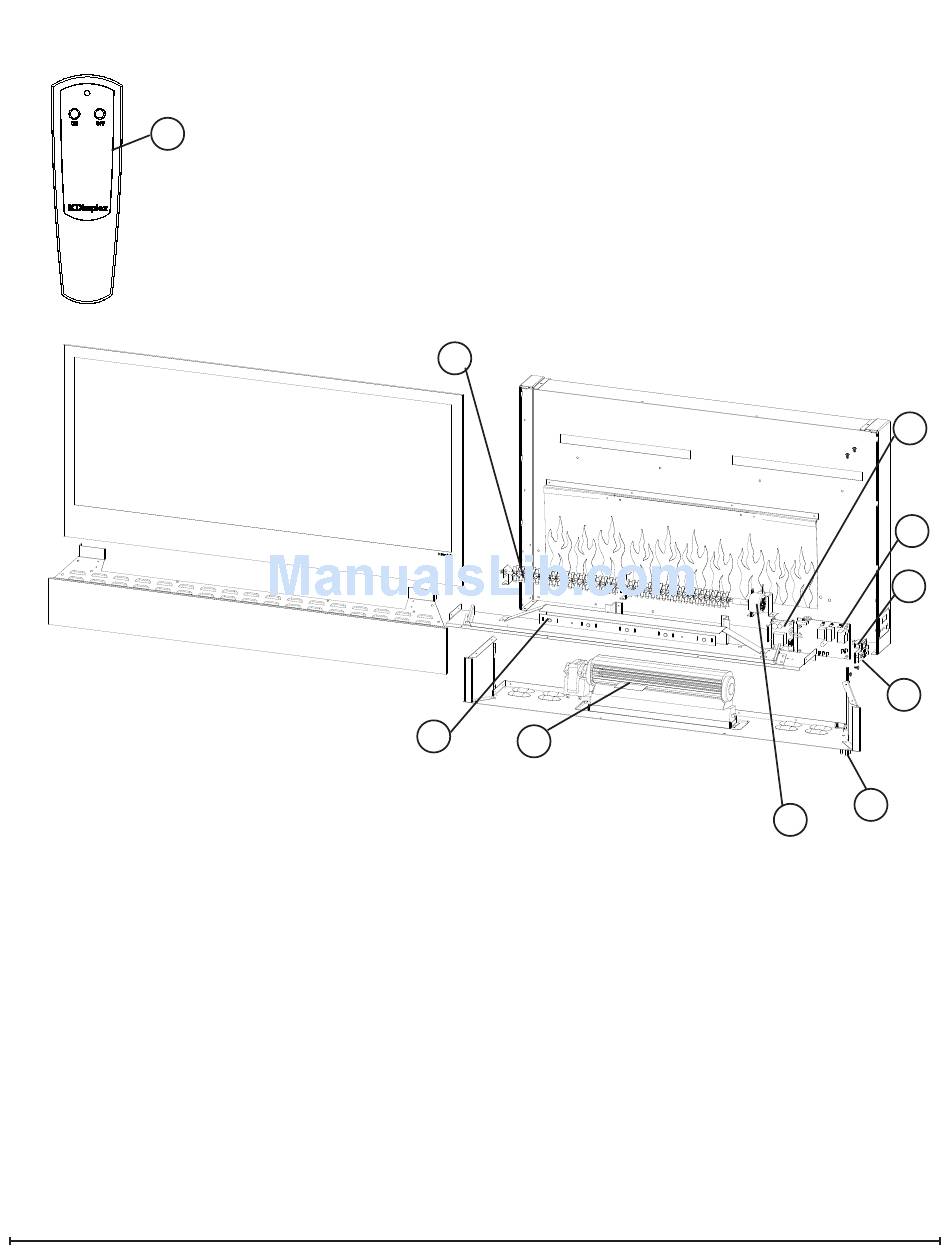

ExPLODED PARTS DIAGRAM

8

REPLACEMENT PARTS LIST

1. Heater Assembly . . . . . . . . . . . . . . . . . . 2203540100RP
2. Flicker Motor . . . . . . . . . . . . . . . . . . . . . 2000210300RP
(Order Stand-offs with Flicker Motor . . 8500410259RP)
3. Flicker Assembly . . . . . . . . . . . . . . . . . 5902180100RP
4. On/Off Switch . . . . . . . . . . . . . . . . . . . . 2800070700RP
5. Power Cord . . . . . . . . . . . . . . . . . . . . . 4100190100RP
6. Remote Control Receiver . . . . . . . . . . . 3000820100RP
3
9
1
7. Remote Switchboard
8. Remote Control
9. LED Light Strip
10. LED Driver Board
11. Capacitor . . . . . . . . . . . . . . . . . . . . . . . . 2300030100RP
12. Wall Bracket Mounting Kit
2
. . . . . . . . . . . . . . . 3000820300RP
. . . . . . . . . . . . . . . . . . . 3000370900RP
. . . . . . . . . . . . . . . . . . . 3000830100RP
. . . . . . . . . . . . . . . . . 3000810100RP
. . . . . . . . . . . 1024380100RP
10
6
4
7
5
5
