Wiring Diagram - Dimplex DF3033ST Service Manual
33” wide screen fireplace with full feature remote control
Hide thumbs
Also See for DF3033ST:
- Owner's manual (23 pages) ,
- User manual (14 pages) ,
- Troubleshooting manual (2 pages)
Table of Contents
Advertisement

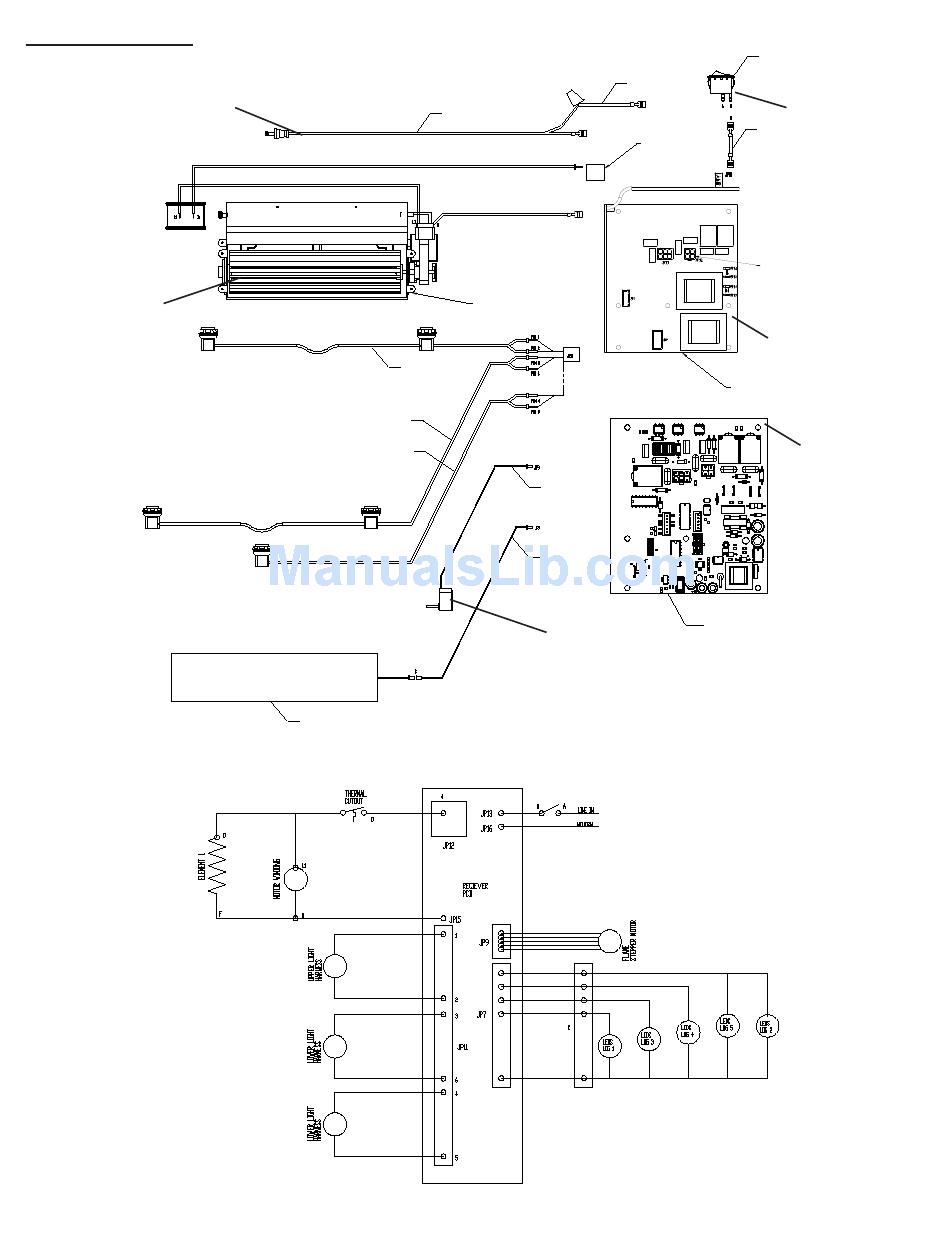

Wiring Diagram
Power Cord
Heater
Assembly
2500400100
2500150200
LOGSET AND LED HARNESS
Log Set
0439070100
4100040200
PIN 4
200330200
2500400200
3000240400
2500380200
Flicker
Motor
7
2800070700
84141036CF
A LIVE
84141030FF
JP16 NEUTRAL
4 pin Molex
JP12
JP15
PIN 4
Remote
Control Receiver
(433MHz)
3000300200
JP4
JP5
JP10
JP7
JP9
JP6
JP2
JP3
3000880100
On/Off
Switch
Remote
Control Receiver
(2.4GHz)
