Relays - soldered

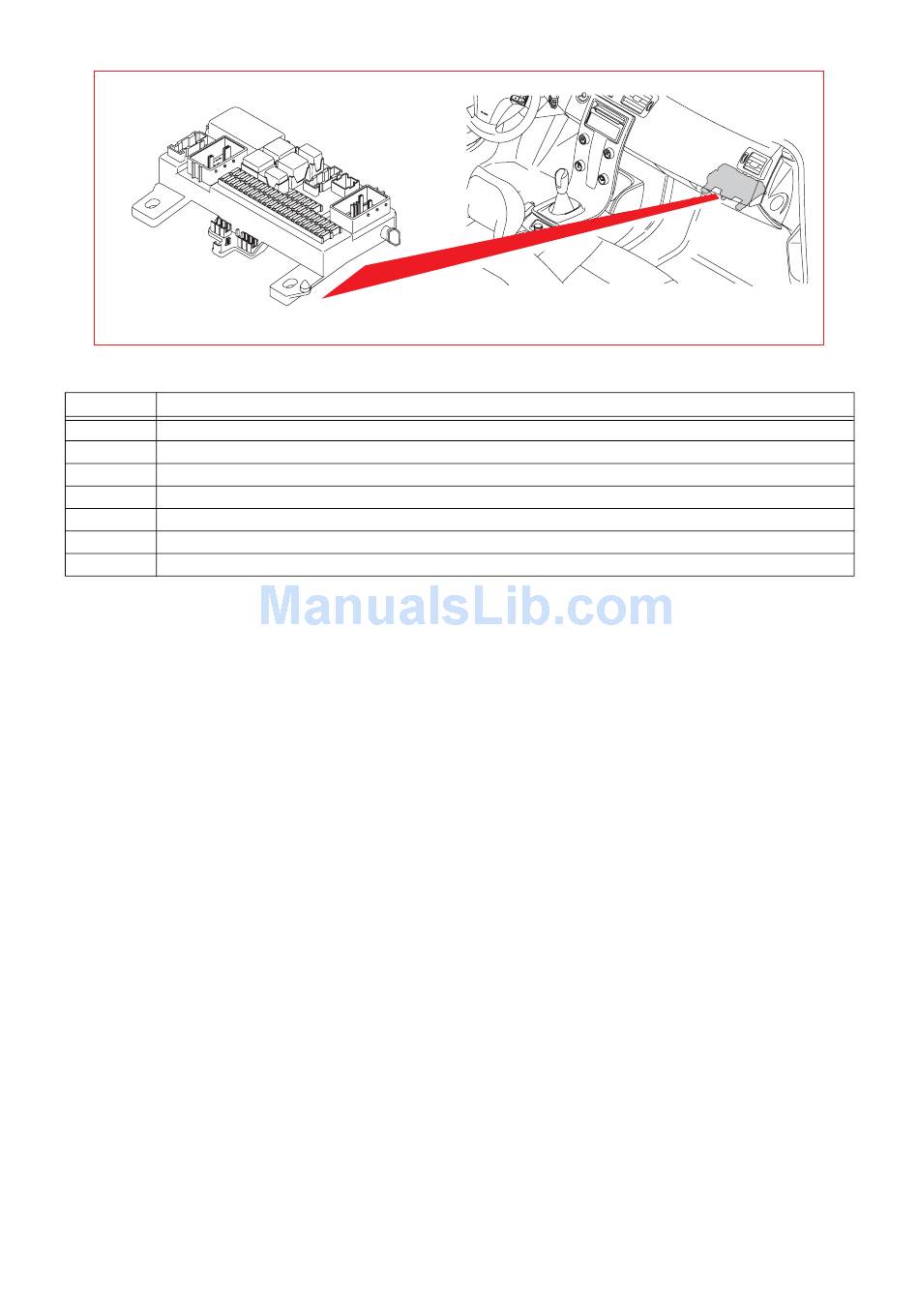

Central Electronic Module (CEM) R1 - R11B
4/56 Central Electronic Module (CEM)
Pos
Relay function
R1
2/89
Relay, interior lighting
R2
2/80
Relay, reversing light
R7A
2/92
Relay, windshield washer motor
R7B
2/93
Relay, rear window washer motor
R8
2/63
Relay, high beam
R11A
2/16
Relay, rear window wiper
R11B
2/159
Relay, infotainment
TP3990202 S40 (04-)/V50 2006
