WS-8158U-IT
RADIO-CONTROLLED CLOCK WITH OUTDOOR WIRELESS
TEMPERATURE AND WEATHER FORECAST
INSTRUCTION MANUAL
Contents
__________________________________________________________________
English
French
Spanish
FEATURES:
RADIO-CONTROLLED CLOCK:
LCD1
display
LCD2
display
WWVB Radio controlled time with manual time setting
Time display: hour, minute, second
Alarm setting with snooze function
Calendar display
Weekday display (3 languages to choose from: English, Spanish, French,)
Time zone setting
Daylight savings time ON/OFF option (DST)
Indoor and outdoor temperature display
Temperature display in ºF/ ºC selectable
Weather forecast with weather tendency indicator based on air pressure
Wireless transmission at 915MHz
Signal reception intervals at 4 seconds
Low battery indicator
Wall mount or freestanding

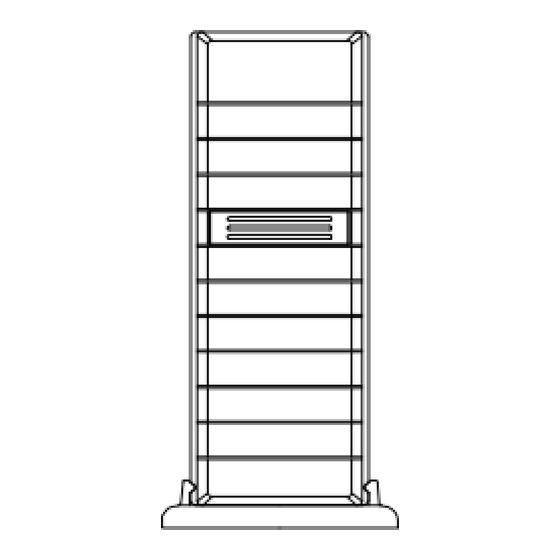

OUTDOOR TEMPERATURE TRANSMITTER:
Holder
Page
1
1
Hanging holes
Battery cover
Foldable stands
Remote transmission of outdoor temperature to the
radio-controlled clock by 915 MHz signals
Wall mounting case
3
TABLE OF CONTENTS
Topic
Features
Battery Installation
Function keys
LCD Screen
Alarm
INSTANT TRANSMISSION is the state-of-the-
This product offers:
art new wireless transmission technology,
exclusively designed and developed by LA
CROSSE TECHNOLOGY. INSTANT
TRANSMISSION offers you an immediate
update (every 4 seconds!) of all your outdoor
data measured from the transmitters: follow
your climatic variations in real-time!
ALKALINE BATTERIES ARE RECOMMENDED FOR USE IN BOTH UNITS. AVOID USING
RECHARGEABLE BATTERIES.
TO INSTALL / REPLACE BATTERIES IN THE TEMPERATURE TRANSMITTER
(INSTALL BATTERIES IN TRANSMITTER BEFORE INSTALLING BATTERIES IN RADIO-
CONTROLLED CLOCK)
The transmitter uses 2 x AA,1.5V batteries. To install and replace the batteries, please follow
the steps below:
1.
Remove the battery cover by pushing down towards bottom of transmitter and sliding
cover out.
2.
Insert the batteries, observing the correct polarity (see marking inside battery
compartment).
3.
Replace the battery cover on the unit.
TO INSTALL / REPLACE BATTERIES IN THE RADIO-CONTROLLED CLOCK
The radio-controlled clock uses 2 x AA,1.5V batteries. To install and replace the batteries,
please follow the steps below:
1.
Insert finger or other solid object in the space at the bottom center of the battery
compartment and lift up to remove the cover.
2.
Insert batteries observing the correct polarity (see marking inside battery compartment).
3.
Replace compartment cover.
DO NOT SET THE CLOCK.
REPLACING BATTERY(S):
For best performance, batteries should be replaced at least once a year to maintain the best
running accuracy. Ensure that the batteries used are new and the correct size.
Please help in the preservation of the environment and return used batteries
to an authorized depot.
Page
3
4
5
5
6
6
7
10
10
11
14
14
14
15
16
17
2
4
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for La Crosse Technology WS-8158U-IT
Summary of Contents for La Crosse Technology WS-8158U-IT
- Page 1 TABLE OF CONTENTS WS-8158U-IT RADIO-CONTROLLED CLOCK WITH OUTDOOR WIRELESS Topic Page TEMPERATURE AND WEATHER FORECAST Features Battery Installation INSTRUCTION MANUAL Setting Up Atomic time - WWVB Radio Controlled Time Function keys LCD Screen Contents Manual Settings Changing the display mode...
-
Page 2: Setup
the time code is received, the WWVB tower becomes permanently lit and the time will be SETUP: displayed. Alkaline batteries are recommended for use in both units. NOTE: Do not set the clock until the outdoor temperature is displayed. If the tower icon flashes, but does not set the time or the WWVB tower does not appear at all, Place batteries in the outdoor transmitter first, then into the radio-controlled clock. - Page 3 Now the minute digits will start flashing. Press and release the SET key to enter the mode “ºC or ºF Temperature Setting”. Set the desired minutes by pressing and releasing the + key. If the + key is held, the units °C OR °F TEMPERATURE will increase by 5.
- Page 4 Note: When the 915 MHz signal is received correctly, do not re-open the battery cover of either FOLDOUT TABLE STAND the outdoor temperature transmitter or radio-controlled clock, as the batteries may spring free The foldout table stands legs are located on the backside. Unfold the stands out, from the contacts and force a false reset.
- Page 5 La Crosse Technology, Ltd for problem determination and service procedures. Warranty service Fax: 608.796.1020 can only be performed by a La Crosse Technology, Ltd authorized service center. The original dated bill of sale e-mail: support@lacrossetechnology.com (warranty work) must be presented upon request as proof of purchase to La Crosse Technology, Ltd or La Crosse Technology, Ltd’s authorized service center.
