La Crosse Technology WS-8035U-IT Instruction Manual

Wireless 915 mhz wireless weather station
Hide thumbs Also See for WS-8035U-IT:
Table of Contents

Advertisement

Quick Links

WS-8035U-IT
Wireless 915 MHz
Wireless Weather Station
Instruction Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WS-8035U-IT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for La Crosse Technology WS-8035U-IT

Summary of Contents for La Crosse Technology WS-8035U-IT

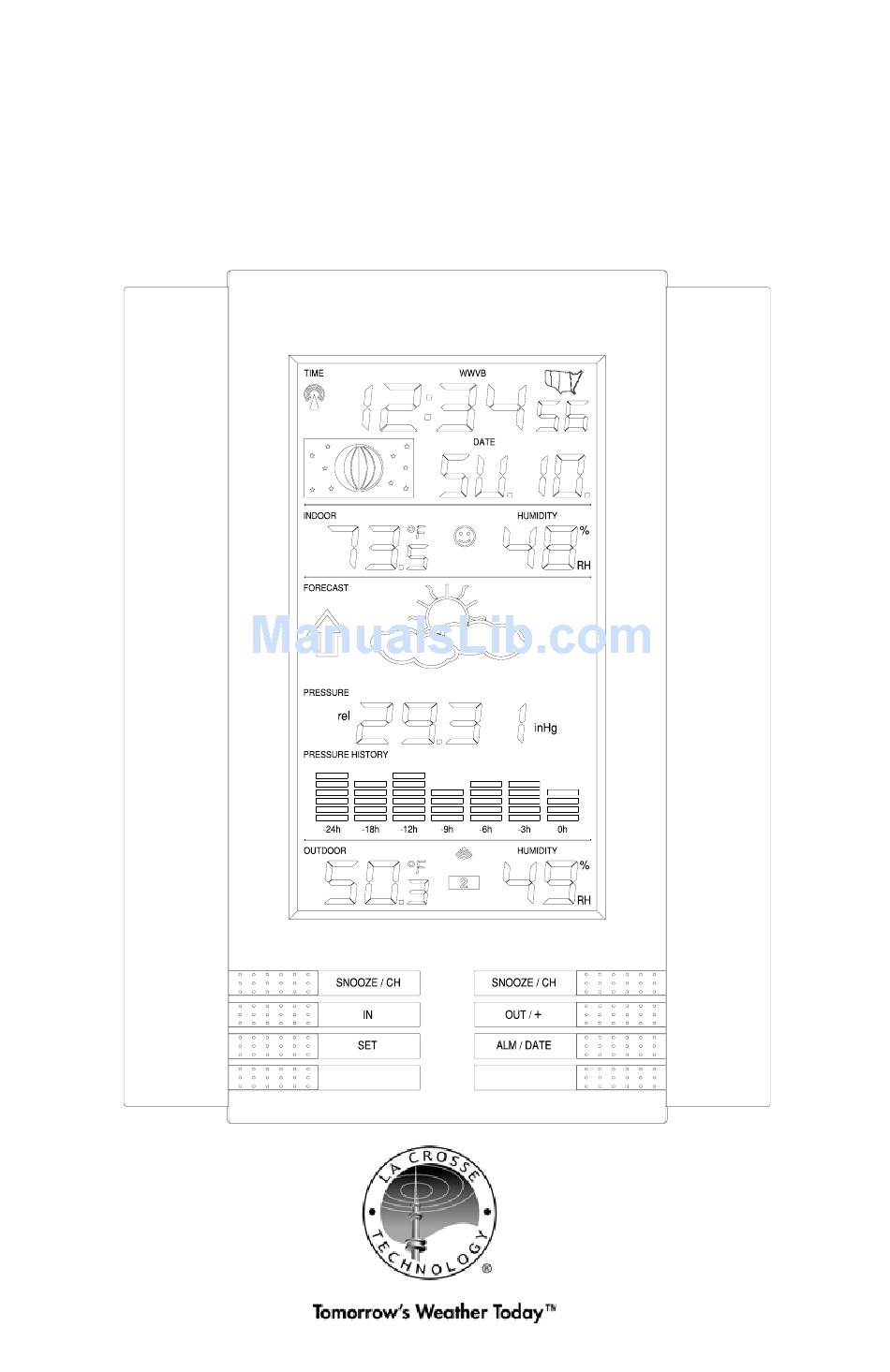

  • Page 1 WS-8035U-IT Wireless 915 MHz Wireless Weather Station Instruction Manual...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Topic Page Inventory of Contents/ Additional Equipment About WWVB Quick Set Up Guide Detailed Set Up Guide Battery Installation Start Up Sequence Explanation of LCD Information Function Key Layout Program Mode Overview of Programming Sequence LCD Contrast Setting Time Zone Setting DST ON/OFF Setting Radio-controlled Time ON/OFF Setting...

  • Page 3: Inventory Of Contents/ Additional Equipment

    INVENTORY OF CONTENTS 1. WS-8035U-IT—Wireless Weather Station 2. TX29UD-TH-IT—remote thermo/hygro (temperature/humidity) sensor 3. Instruction manual and warranty card ADDITIONAL EQUIPMENT (not included) 1. Five fresh AA 1.5V alkaline batteries. 2. One wall-mounting screw (optional) ABOUT WWVB (radio-controlled time) The NIST (National Institute of Standards and Technology—Time and...

  • Page 4: Quick Set Up Guide

    Boulder, Colorado. A team of atomic physicists continually measure every second of every day to an accuracy of ten billionths of a second a day. These physicists have created an international standard, measuring a second as 9,192,631,770 vibrations of a Cesium 133 atom in a vacuum. For more information about WWVB please see the NIST website at http://www.boulder.nist.gov/timefreq/stations/wwvb.htm QUICK SET-UP GUIDE...
  • Page 5 place, all segments of the LCD will light up briefly. Following the indoor temperature and humidity, and the time as 12:00 will be displayed. If they are not shown in LCD after 60 seconds, remove the batteries and wait for at least 60 seconds before reinserting them.

  • Page 6: Start Up Sequence

    • If the signal reception is not successful on the first frequency (915MHz) for 45 seconds, the frequency is changed to 920MHz and the learning is tried another 45 seconds. If still not successful the reception is tried for 45 seconds on 910MHz.

  • Page 7: Explanation Of Lcd Information

    correct to the accurate time and date (Daylight Saving Time is automatic). If the signal has been received in the past 24 hours, the reception indicator will be displayed. After a successful reception, no more reception attempt would be made until the following day. III.

  • Page 8: Function Key Layout

    B. There are many different modes the Wireless Weather Station can be set to. The LCD shown is the normal operating mode, and your actual data shown will be different based on your local settings and conditions. IV. Function Key Layout A.

  • Page 9: Time Zone Setting

    C. Time Zone Setting 1. Press and hold the “SET” button for five seconds. 2. “lcd” will appear at the top of the display and a number will flash next to it. 3. Press and release the “SET” button once more to advance to the Time Zone setting.

  • Page 10: 12/24-Hour Time Mode Setting

    3. Press and release the “SET” button four more times to advance to the 12/24-hour time mode setting. 4. “12h” or “24h” will flash to the right of the Moon Phase display. 5. Press and release the “OUT/+” button to select 12 or 24-hour time mode.

  • Page 11: Setting The Time/Date Manually

    4. The year will begin to flash to the right of the Moon Phase display. 5. Press and release the “OUT/+” button to select the desired year. 6. Press and release the “SET” button to confirm the year and continue to the Month setting. J.

  • Page 12: Relative Pressure Setting

    3. Press and release the “SET” button eleven more times to advance to the Air Pressure Measuring Units setting. 4. inHg or hPa will flash at the top of the display. 5. Press and release the “OUT/+” button to select the desired air pressure measuring unit.

  • Page 13: Features And Operation

    FEATURES AND OPERATIONS A. Time Alarm Setting and Operation 1. To set the time alarm: Press and hold the ALM/DATE button for 5 seconds. b. The alarm time will begin to flash to the right of the moon phase. Press and release the IN button to adjust the hour. Note: When in the 12-hour mode and setting an alarm for a time between noon and midnight, “PM”...
  • Page 14 New Moon Full Moon Small Waxing Crescent Large Waning Gibbous Large Waxing Crescent Small Waning Gibbous First Quarter Last Quarter Small Waxing Gibbous Large Waning Crescent Large Waxing Gibbous Small Waning Crescent C. Minimum and Maximum Temperature and Humidity 1. Indoor Minimum and Maximum Temperature and Humidity The Wireless Weather Station automatically stores the minimum and maximum indoor temperature and humidity.

  • Page 15: Multiple Remote Temperature/Humidity Sensors

    D. Multiple Remote Temperature Sensors The WS-8035U-IT is able to receive signals from 2 additional thermo/hygro sensors. The following are instructions for the set-up of remote thermo/hygro sensor units with the WS-8035U-IT. These extra sensors can be purchased through the same dealer as this unit.

  • Page 16: Weather Forecast And Pressure Trend Indicators

    NOTE: You must insert the batteries into the third sensor within 45 seconds of reception of the second sensor. IMPORTANT: Transmission problems will arise if the setting for multiple sensors is not followed as described above. Should transmission problems occur, it is necessary to remove the batteries from all units and start again the set-up from step 1.

  • Page 17: Weather Icons

    1. Weather Icons There are 3 possible weather icons that will be displayed at various times in the center of the Wireless Weather Station Sunny—indicates that the weather is expected to improve (not that the weather will be sunny). Sun with Clouds—indicates that the weather is expected to be fair (not that the weather will be sunny with clouds).

  • Page 18: Barometric Air Pressure Reading

    H. Barometric Air Pressure Reading 1. The actual barometric air pressure is displayed directly under the weather forecast icon 2. The relative air pressure is calibrated by the user through the programming mode. 3. Please Follow the programming instructions in section F of the Detailed Set Up Guide to set this feature.
  • Page 19 Note: Mounting with adhesive tape is not recommended as a permanent mounting solution. Only use the adhesive tape during set-up process. B. Mounting the WS-8035U-IT Wireless Weather Station The Wireless Weather Station can be mounted in two ways; free standing or hanging on a wall.

  • Page 20: Maintenance And Care

    D. Immediately remove all low powered batteries to avoid leakage and damage. E. Opening the casings invalidates the warranty. Do not try to repair the unit. Contact La Crosse Technology for repairs. TROUBLESHOOTING Problem: The LCD is faint. Solution: 1) Set the LCD contrast to a higher level.

  • Page 21: Specifications

    4) Adjust relative air pressure to a value from a reliable source (TV radio, etc.). 5) The Wireless Weather Station and remote sensors are calibrated at the factory. If there is a consistent problem, please call La Crosse Technology. Problem: “- -” in humidity display.

  • Page 22: Warranty Information

    La Crosse Technology, Ltd or La Crosse Technology, Ltd’s authorized service center. La Crosse Technology, Ltd will repair or replace this product, at our option and at no charge as stipulated herein, with new or reconditioned parts or products if found to be defective during the limited warranty period specified above.
  • Page 23 Some States do no allow the exclusion of consequential or incidental damages therefore the above exclusion of limitation may not apply to you. For warranty work, technical support, or information contact: La Crosse Technology 2809 Losey Blvd. S. La Crosse, WI 54601 Phone: 608.782.1610 Fax: 608.796.1020 e-mail: support@lacrossetechnology.com (warranty work) sales@lacrossetechnology.com...
  • Page 24 FCC ID: OMOTX29UD-IT (sensor) RF Exposure mobile: The internal / external antennas used for this mobile sensor must provide a separation distance of at least 20 cm (8 inches) from all persons and must not be co-located or operating in conjunction with any other antenna or sensor." Statement according to FCC part 15.19: This device complies with Part 15 of the FCC Rules.
