  • Page 1 TC STEREO CHORUS/FLANGER & Pitch Modulator USER’S GUIDE...

  • Page 2: Table Of Contents

    CONTENTS Contents ........Introduction ....... . SCF Sound Quality .

  • Page 3: Introduction

    INTRODUCTION Thank you for purchasing the TC Chorus/Flanger/Pitch Features: Modulation pedal. TC Electronic has developed this - 3 types of stereo effects product to the highest standards ensuring top sound quality with no noise or distortion added to your audio The 3 kinds of effects are all stereo effects, but can be used signal.

  • Page 4: Scf Sound Quality

    Linear frequency response appear simultaneously in both sides. The effect signals are The linear frequence response of the TC Stereo Chorus/Flanger alternating phase reversed in left and right sides, creating a ensures that the sound stays transparent and clear, and that unique spatial dimension.
  • Page 5 SCF SOUND QUALITY PROFESSIONAL SIGNAL LEVELS One of the key elements to obtaining professional sound quality is proper impedance at the in and output(s). If an effect pedal should be able to pick up the full bandwidth from your instrument, it is very important that it does not "load" your instrument, i.e.

  • Page 6: Front Description

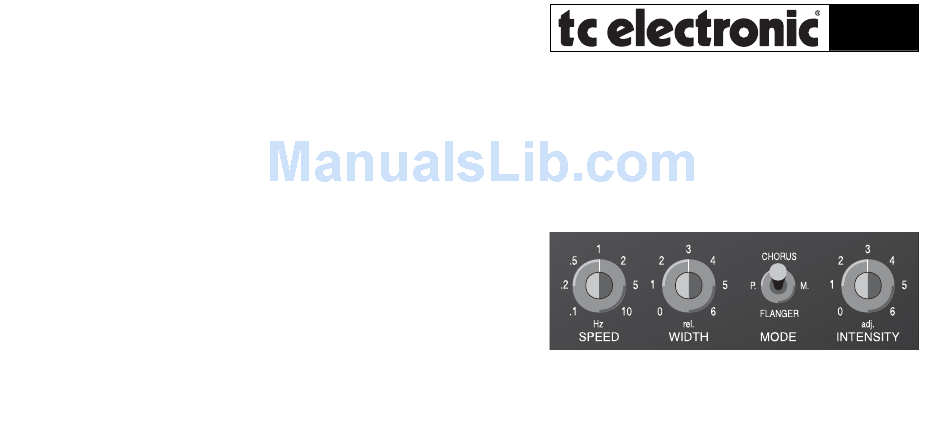

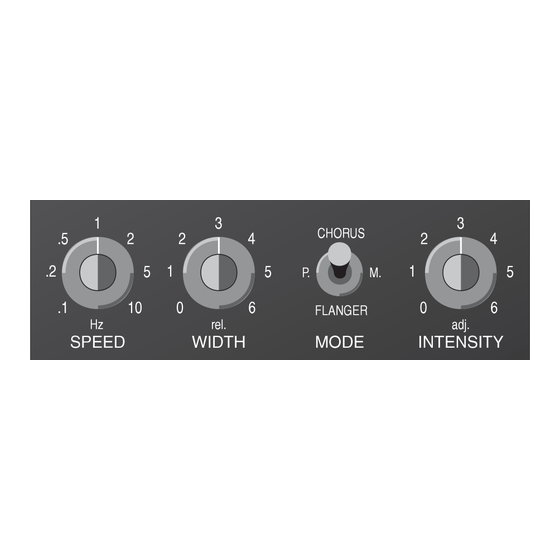

    FRONT DESCRIPTION FRONT DESCRIPTION 1 SPEED Controls the Rate of sweep in a range 4 WIDTH Determines how wide a modulation from 1 sweep every 10 seconds to 10 (sweep) is produced. Ranges are sweeps each second (0,1-10 Hz). from "0" (no modulation) to "6"(max) on a relative scale.

  • Page 7: Getting Started

    FRONT DESCRIPTION GETTING STARTED 9 OUTPUT Outputs the right channel Connect the input source (instrument, pick-up or high output (STEREO) of the stereo effects signal. microphone) by a mono jack cord to the Input jack. 10 BYPASS Switches the audio signal into or The amplification used (amp(s), mixer) should be around the effects circuitry.

  • Page 8: The Controls

    THE CONTROLS THE CONTROLS There are four sound controls on the SCF: Note: If both outputs are used for stereo, you must use a stereo INPUT GAIN, SPEED, WIDTH and INTENSITY return on the mixing console. Do not mix the stereo outputs of the TC SCF together! If you do, you will get no effect, as the Setting Input Gain: effects part of the signal is out of phase on the LEFT/RIGHT...
  • Page 9 THE CONTROLS THE CONTROLS If you want "out of pitch" sounds for special effects, both In PITCH MODILATION mode, the INTENSITY control mixes SPEED and WIDTH can be turned into the last third of their an increasing amount of pitchshift (vibration, following the range.

  • Page 10: Examples Of Settings

    EXAMPLES OF SETTINGS TECHNICAL SPECIFICATIONS NAME SPEED INTENSITY MODE WIDTH Dynamic Range ....... .100dB Frequency response .

  • Page 11: Troubleshooting

    TROUBLESHOOTING TROUBLESHOOTING In case you encounter any difficulties, please go thru this ERROR CHECK troubleshooting before calling the service center Distortion INPUT GAIN adjusted too ERROR CHECK high - 0dB max should be put in - install an input No "on" LED - click the bypass footswitch.

  • Page 12: Notes

    TROUBLESHOOTING NOTES INTENSITY at or near maximum. Please read and follow these instructions before This set-up will produce a chorus connecting this unit. effect, which is almost as "broad" and is mono-compatible however The lightning flash with an arrowhead symbol within the chorus effect will be at one side a equilateral triangle, is intended to alert the user to only.
  • Page 13 NOTES NOTES This equipment has been tested and found to comply with the The user may find the following booklet, prepared by the limits for a Class B Digital device, pursuant to part 15 of the Federal Communications Commission, helpful: FCC rules.
  • Page 14 NOTES Do not attempt servicing of this unit yourself. Always refer to Certificate Of Conformity TC Electronic A/S, Sindalsvej 34, 8240 Risskov, Denmark, hereby declares on qualified personal. own responsibility that the TC SCF Pedal Do not use this unit near water; for example, near a bath tub,...
