APPENDIX

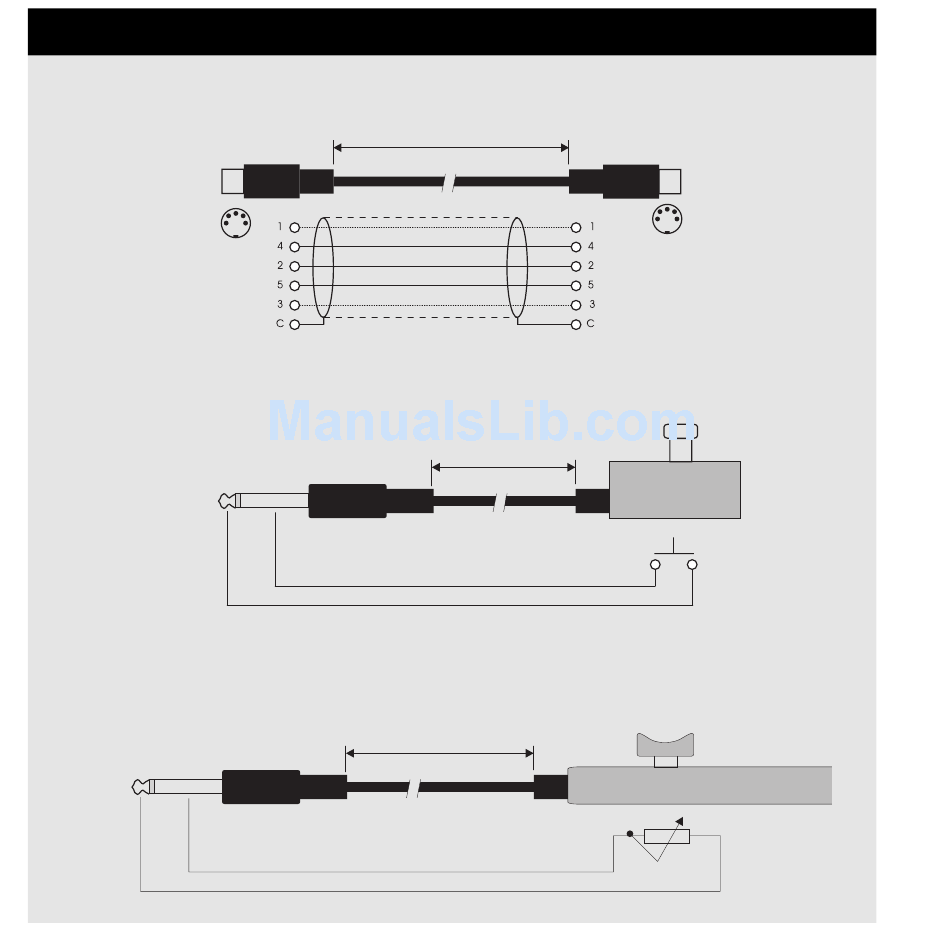

Soldering instructions

MIDI Cable
Pedal Cable
Fader Cable
JACK PLUG
Mono - male
Ø 6.35mm, 1/4"
28
DIN CONNECTOR
5POLE - MALE
45 degrees
SHIELDED CABLE (3 or 5 wires + screen)
JACK PLUG
Mono - male
Ø 6.35mm, 1/4"
max. 10m
max. 100m
2 wires
Switch must be
Shield/ground
momentary type
Tip
max. 100m
2 wires
DIN CONNECTOR
5POLE - MALE
45 degrees
PEDAL SWITCH or similar
MASTER FADER or similar
