Summary of Contents for Tascam DV-D01U

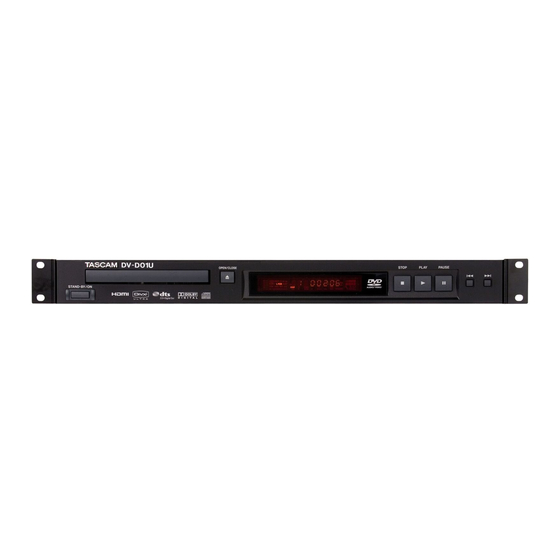

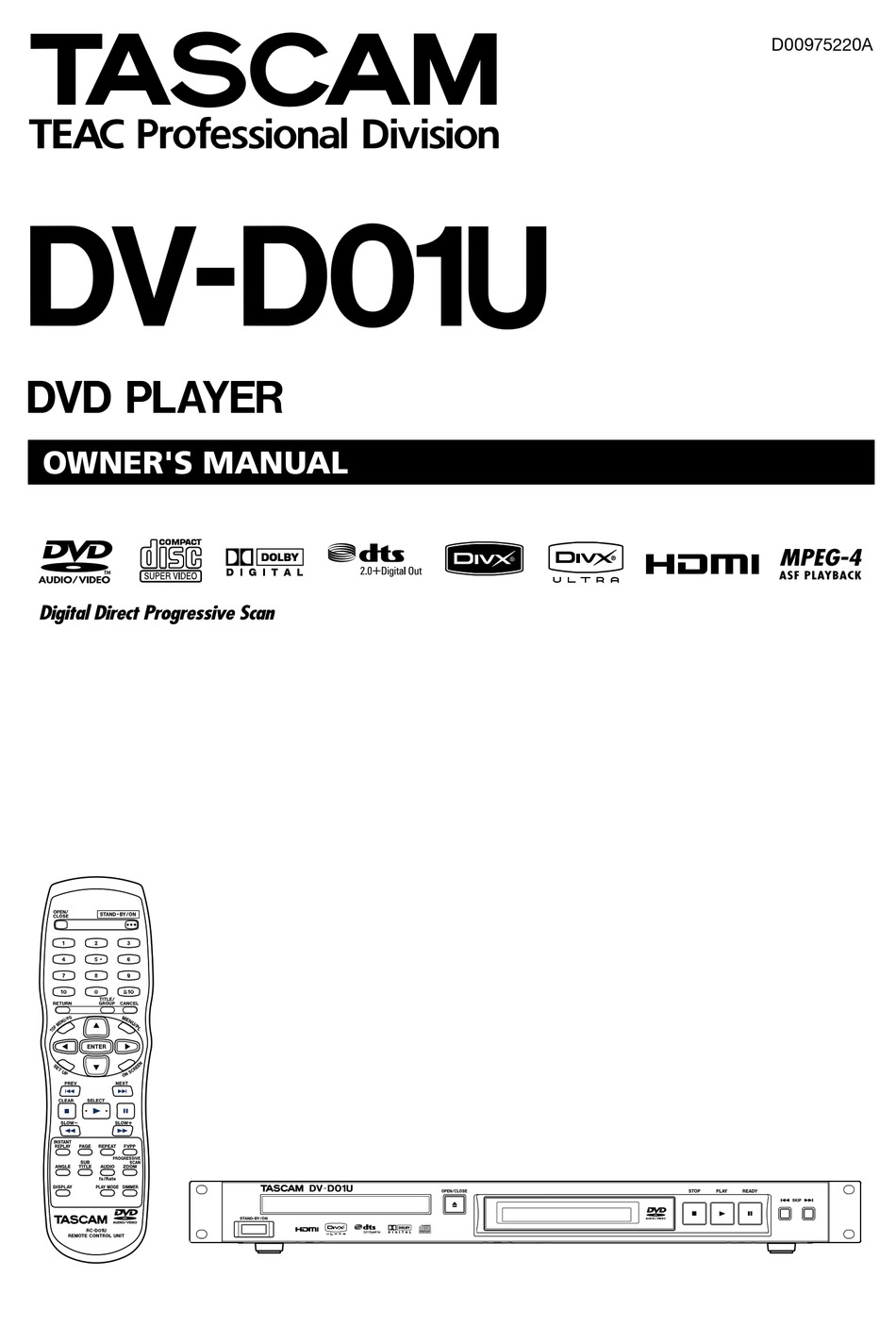

- Page 1 » D00975220A DV-D01U DVD PLAYER OWNER'S MANUAL...
-
Page 2: Important Safety Precautions
Wohnbereich Funkstörungen versursachen; in this equipment. diesem Fall kann vom Betrieber verlang werden, angemessene Maßnahmen durchzuführen und dafür aufzukommen. CE Marking Information a) Applicable electromagnetic environment: E4 b) Peak inrush current: 2.6 A TASCAM DV-D01UT/C... -
Page 3: Important Safety Instructions
TASCAM DV-D01UT/C... -
Page 4: Safety Information
PERSONNEL, AND DO NOT USE THE PRODUCT IN ITS DAMAGED STATE. Optical pickup: Type : OPA-652PH Manufacturer : Arima Devices Co, Ltd. Laser output : Less than 0.5 mW on the objective lens Wavelength : DVD/650 to 660 nm CD/770 to 810 nm TASCAM DV-D01UT/C... -
Page 5: Table Of Contents
Skip to the beginning of a desired selection ..14 Maintenance ............37 Skipping at about 5-minute intervals ....14 Troubleshooting ............37 Locating a desired title/group using number Specifications ............38 buttons ..............14 Selecting the desired title/ playlist from the control display ..............15 TASCAM DV-D01UT/C... -
Page 6: Introducton
• Do not use a disc with tape, stickers, or paste on it, because it may damage the unit. Supplied accessories Label sticker In addition to this manual, the DV-D01U has been packed with the following: Sticker Paste • Remote control (1) •... -
Page 7: About Discs
On some DVD VIDEOs, VCDs or SVCDs, their actual operation may be different from what is explained in this manual. This is due to the disc programming and disc structure, not a malfunction of this unit. DVD Logo is a trademark of DVD Format/Logo Licensing Corporation. TASCAM DV-D01UT/C... -
Page 8: Playable File Types
Plays all versions of DivX video (including DivX 6) with ® ® Laboratories. enhanced playback of DivX media files and the DivX Media ® ® • “DTS” and “DTS Digital Out” are registered trademarks of Format Digital Theater Systems, Inc. TASCAM DV-D01UT/C... -
Page 9: Description Of Parts And Controls
Description of parts and controls Front panel The numbers in the figures indicate the pages where the details of the parts are described. Display window 22, 23 Remote Sensor: Rear panel 7, 8 TASCAM DV-D01UT/C... - Page 10 The batteries are not supplied for Taiwan. 13, 21 13, 21 10, 21 Operating the unit from the remote control Aim the remote control directly to the front panel of the unit. • Do not block the remote sensor. TASCAM DV-D01UT/C...
-
Page 11: Connections
You can enjoy digital video and sound without AD/DA conversion with easy connection. In addition, this unit is compatible with HDCP (High- Bandwidth Digital Content Protection), and HDCP contents can be viewed if you connect a HDCP compatible TV to this unit. TASCAM DV-D01UT/C... -
Page 12: Connecting To A Stereo Amplifier/Receiver
RS-232C connector Connect a suitable external device to control the unit using RS-232C protocol. (See page 28.) The unit To audio input Audio cable (not supplied) Digital device To digital optical input Optical digital cable (not supplied) TASCAM DV-D01UT/C... -
Page 13: Basic Operations
If the above phenomena happen, turn off the unit and turn it back on, then set the scan mode again. Adjusting the brightness of the indications [DIMMER] STAND-BY/ON Press DIMMER. OPEN/CLOSE STOP PLAY Each time you press the button, you can change the brightness level in 3 steps. TASCAM DV-D01UT/C... -
Page 14: Changing The Scan Mode
Component video jacks: NTSC 480p, PAL576p S-video/composite video jacks: NTSC 480i, PAL 576i 480i, 480p, 576i, 576p, 1080i, and 720p indicate the number of scanning lines and scanning format of a video signal. – 480i/576i/1080i indicates 480/1080 scanning lines with interlaced format. TASCAM DV-D01UT/C... -
Page 15: Playback
(Slow-motion forward/ reverse): appears when you perform each operation. • : the disc cannot accept an operation you have tried to do. NOTE • If you do not want the on-screen guide icons to appear, see page 27. TASCAM DV-D01UT/C... - Page 16 There is no WAV indicator for WAV file. JPEG file Example: When slide-show is played back. File number You can press TOP MENU/PG or MENU/PL to change the play mode. (See page 15). Pressing DISPLAY File number Group number TASCAM DV-D01UT/C...
-
Page 17: One Touch Replay
• While in power on play mode, operations other than STAND- BY/ON and OPEN/CLOSE are ignored. • After pressing the Eject button to cycle the power and put the machine back into power on play mode. TASCAM DV-D01UT/C... -
Page 18: Skip To The Beginning Of A Desired Selection
Each interval is about 5 minutes. NOTE • Intervals are automatically assigned from the beginning of a file. • This feature is available only within the same file. • This feature may not work for some discs/files. TASCAM DV-D01UT/C... -
Page 19: Selecting The Desired Title/ Playlist From The Control Display
: Creating date of playlists : Number of chapters : Total playing time : Current playlist Press Cursor to select the desired § ¶ title/playlist. The unit starts playback of the selected title/playlist. To clear the control display Press ENTER. TASCAM DV-D01UT/C... -
Page 20: Advanced Operation
You can check disc information and you can use some functions using the on-screen bar. Showing the on-screen bar ASF/MPEG-2/MPEG-1/DivX Whenever a disc is loaded · Press ON SCREEN. Each time you press the button, the on-screen bar changes as follows on the TV screen. TASCAM DV-D01UT/C... -
Page 21: Playing From A Specified Position On A Disc
Press ≤ repeatedly until the desired track number is • When playing back DVD VR, “TIME” and “REM” cannot be displayed, then start playback by pressing ¥ (play button). The shown. track number appears on the display window instead of “PBC”. TASCAM DV-D01UT/C... - Page 22 Press Cursor ˙ repeatedly. • You can select up to the 99th chapter. Press ENTER. • This function cannot be used with a DVD AUDIO that does not contain any picture. Press ON SCREEN. The on-screen bar disappears. TASCAM DV-D01UT/C...
-
Page 23: Using The File Control Display
The order of groups, tracks, and files may be displayed The on-screen bar disappears. differently from the order displayed on your personal computer. • The extension of the file may not be displayed if the file name is too long. TASCAM DV-D01UT/C... -
Page 24: Selecting The Subtitle
Some subtitle or audio languages are abbreviated in the pop-up window. See “The language codes list”. (See page 25.) • Each time you press SUBTITLE, the subtitle appears and disappears alternately. • For DivX, you cannot operate this procedure using the on-screen bar. TASCAM DV-D01UT/C... -
Page 25: Special Picture Playback
• The VFP function is not available when connecting the TV through HDMI terminal. • “TINT” setting is not effective when connecting the TV through COMPONENT VIDEO OUT jacks. TASCAM DV-D01UT/C... -
Page 26: Program Playback
When programming a track in the bonus group of a DVD AUDIO, the unit will prompt you to enter the password for the bonus group. (See page 24.) • The Resume function cannot be used with Program Playback. • Program Playback may not work for some discs. TASCAM DV-D01UT/C... - Page 27 Repeat Playback is possible only within the same track. • “A-B” cannot be selected during Program and Random Press ENTER. Playback. • “A-B” cannot be selected during playback with PBC function. Press ON SCREEN. The on-screen bar disappears. To cancel Repeat Playback Select “OFF” in step TASCAM DV-D01UT/C...
-
Page 28: Tray Lock
When using the on-screen bar: Press ON SCREEN twice. The on-screen bar appears on the TV screen. Press Cursor to highlight ¥ ˙ Press ENTER. PPCM GROUP2 PAGE Press Cursor to select the desired § ¶ page. Press ENTER. TASCAM DV-D01UT/C... -
Page 29: Setting Dvd Preferences
ON SCREEN LANGUAGE · • Select the language shown on the TV screen when operating this unit. When the language you have selected is not recorded to a disc, the original language is automatically used as the initial language. TASCAM DV-D01UT/C... - Page 30 AUDIO Audio CD with 44.1 kHz, 16 bit, stereo linear Select this to play MP3/WMA/WAV files. bitstream • STILL PICTURE CD-R/RW with Linear PCM Select this to play JPEG files. • VIDEO Select this to play ASF/MPEG-2/MPEG-1/DivX files. TASCAM DV-D01UT/C...
-
Page 31: Down Mix
Dolby Digital 1- or 2-channel format. • Audio is played back with the dynamic range compressed. HDMI AUDIO OUT · You can select whether the unit outputs the audio signal with the video signal from HDMI terminal or not. TASCAM DV-D01UT/C... -
Page 32: Rs-232C Interface
Data rate : 9600 bps Command spacing : >25 ms Note: For correct operation, wait at least 25ms after receiving the reply to a command from the DV-D01U before sending the next command. Character length : 8 bits Parity bit... - Page 33 For acquiring playback speed (video discs) For acquiring counter information (elapsed time, etc.) Advanced functions (See page 36.) Operation Code (first 3 bytes) Description Front panel control enable/disable Infrared control enable/disable Establish default settings Initialize the DVD player TASCAM DV-D01UT/C...
- Page 34 (E.g.: Go To Title 3) To go to a desired title on the DVD, set the 7th and 8th byte to the specific title number with the 6th byte set to “0”. Then calculate and set the check sum. TASCAM DV-D01UT/C...
- Page 35 Menu navigation keys · These are the standard navigation keys, and they function just like those on the remote control. > Cursor Left > Cursor Right > Cursor Up > Cursor Down > Enter/Select > Return > Previous > Next TASCAM DV-D01UT/C...
- Page 36 For the Number Keys command, the number that can be send ranges from “0” to “010”. Simply set the 9th and 10th byte to the desired number you want to send with the 8th byte set to “0”. Then calculate and set the check sum. TASCAM DV-D01UT/C...
- Page 37 Tray open DVD Audio Tray opening DVD Video Tray closing Super Video CD Reading disc Video CD DVD menus Audio CD Stop MP3/JPEG disc Search DVD VR disc Play Pause < Still playback Scan > Slow motion playback TASCAM DV-D01UT/C...
- Page 38 The SPD status request will return the playback speed of the unit. The SPD will also provide information on the unit status (pause, play or stop). > SPD Status Request Response to “SPD” request · > Stop Status (Reply to “spd”) > Pause Status > Play (Normal 1x) Status > Forward Status > Backward Status TASCAM DV-D01UT/C...
- Page 39 # of Titles > Elapsed Time, Current Title Request Elapsed Time, Current Title Response > (Shows 1hr, 15min, 23sec) > Current Title & Chapter Request Current Title & Chapter Response > (Shows Title 1, Chapter 23) Title Chapter TASCAM DV-D01UT/C...
- Page 40 The INI command will initialize the unit, and return the unit to the settings last built by the SET command. No other commands should be sent for at least 500 ms while the RS-232 routine is initializing. As for the SET and INI commands, DV-D01U does not send back response. >...
-
Page 41: References
HDMI terminal. scan mode to “480p” (see page 10). If there are any other cases than the noted above or if this unit does not seem to work properly, turn off the unit and turn it back on. TASCAM DV-D01UT/C... -
Page 42: Specifications
Surround (with sampling frequency — 32 kHz, 44.1 kHz, 48 kHz) Video section Video System: NTSC Horizontal Resolution: 500 lines Signal-to-Noise Ratio: 64 dB Video output level Composite: 1.0 V(p-p)/75 Ø S-video-Y: 1.0 V(p-p)/75 Ø S-video-C: 0.286 V(p-p)/75 Ø Dimensions (unit: mm) 23.5 23.5 OPEN/CLOSE STOP PLAY (269) TASCAM DV-D01UT/C... - Page 43 Notes TASCAM DV-D01UT/C...
- Page 44 » DV-D01U TEAC CORPORATION Phone: +81-422-52-5082 www.tascam.com 3-7-3, Nakacho, Musashino-shi, Tokyo 180-8550, Japan TEAC AMERICA, INC. Phone: +1-323-726-0303 www.tascam.com 7733 Telegraph Road, Montebello, California 90640 TEAC CANADA LTD. Phone: +1905-890-8008 Facsimile: +1905-890-9888 www.tascam.com 5939 Wallace Street, Mississauga, Ontario L4Z 1Z8, Canada TEAC MEXICO, S.A.
