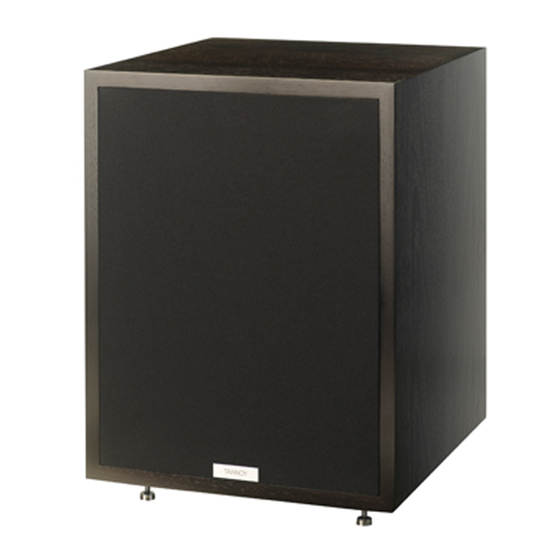

- Page 1 Revolution sub1001 manual v10.qxd:Layout 1 6/3/08 14:04 Page 1 O W N E R ʼ S M A N U A L...
- Page 2 If you suspect a problem with a Tannoy product then, in the first instance, discuss it with your Tannoy dealer. If you require further assistance then we ask that you deal directly with your local Tannoy distributor. If you cannot locate your distributor please contact Customer Services, Tannoy Ltd at the address given below.
- Page 3 Check that the voltage adjustment switch on the rear panel is correct for your area before connecting. If it is incorrect, please set accordingly, ensuring you have the correct power cable. If in any doubt, consult your authorised Tannoy dealer.
- Page 4 Revolution sub1001 manual v10.qxd:Layout 1 6/3/08 14:04 Page 4 The lightning flash with arrowhead symbol within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage " within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
- Page 5 Revolution sub1001 manual v10.qxd:Layout 1 6/3/08 14:04 Page 5 Having checked all connections, plug your subwoofer into a mains outlet, with the power switch on the back of the unit set to OFF. You can operate the subwoofer in two modes, AUTO and ON continuously. In AUTO, the unit remains OFF until an input signal is detected, and will revert to stand-by mode after approximately 10 minutes in the absence of an input signal.
- Page 6 Revolution sub1001 manual v10.qxd:Layout 1 6/3/08 14:04 Page 6 As the subwoofer produces low frequencies only, it is difficult to detect its location by ear. It can therefore be placed anywhere in the room, but optimum performance will be gained by locating the subwoofer between the main stereo pair of speakers.
- Page 7 Revolution sub1001 manual v10.qxd:Layout 1 6/3/08 14:04 Page 7 (Watts RMS) (-6dB) 35Hz, in room typical response Stereo line and high level. Mono LFE (-6dB) 2nd order low pass, variable between 50Hz – 200Hz After approximately 10 mins., in absence of input signal 250mm (10”) long throw...
- Page 8 T: 00 1 (519) 745 1158 E: inquiries@tannoyna.com Tannoy Deutschland T: 00 49 (180) 1111 881 E: anfragen@tannoy.com Tannoy France T: 00 33 (0)1 7036 7473 E: ventes@tannoy.com Tannoy adopts a policy of continuous improvement and product specification is subject to change.
