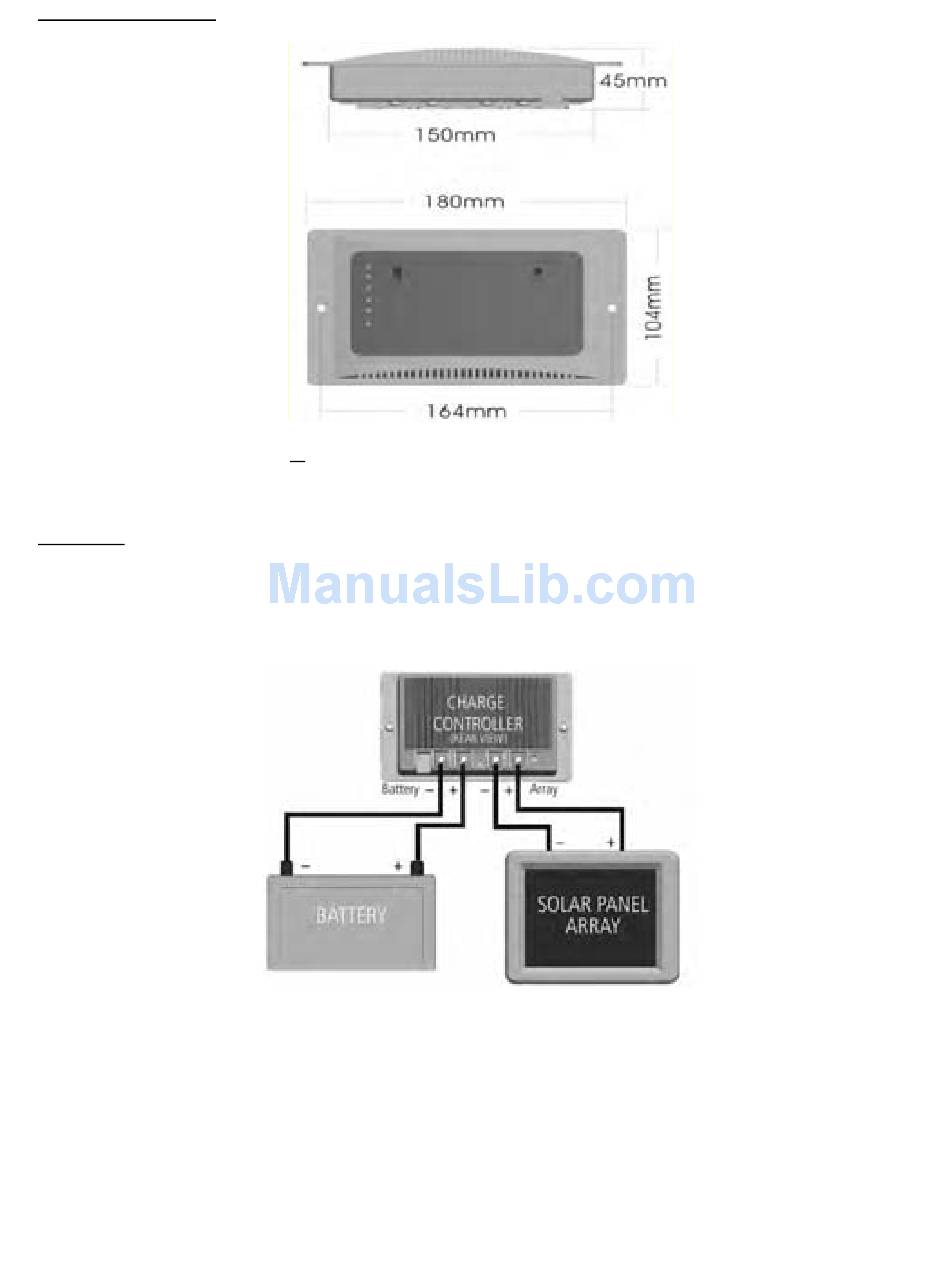

Controller Dimensions

Depth 45mm (1.77in) width 180mm (7 in) length 104mm (4.1 in)
Distance between holes for mounting 164mm (6.5 in)
Net weight is approximately 350g

Installation

The charge controller is designed to be mounted flush with the wall. Flush mounting requires a rectangular
cutout in the mounting surface with sufficient space, 2to 3 inch depth behind, to accommodate the controller
and wiring. The charge controller may also be mounted to the wall without making a cutout. This is the
quickest and easiest mounting procedure, however, the controller will be raised from the wall.

CONNECTION DIAGRAM

Connection Procedures (please refer to the connection diagram above)
1. Once the controller has been properly mounted select either Lead – Acid or Gel – Cell Battery
modes (refer to label below).
2. Connect the solar panel positive side to the charge controller "ARRAY" positive (+) with a suitable
wire. Be careful not to short circuit the solar array.
3. Connect the solar panel negative side to the charge controller "ARRAY" negative (-) with a
suitable wire.
4. Connect the battery positive side to the charge controller "BATTERY" positive (+) with a suitable
wire.
5. Connect the battery negative side to the charge controller "BATTERY" negative (-) with a suitable
wire.
