TEMPO
™
Macintosh
®
PCI Host Adapter Card
Quick Start Guide for Tempo ATA133

You Should Have

The following items should be included in your product package:

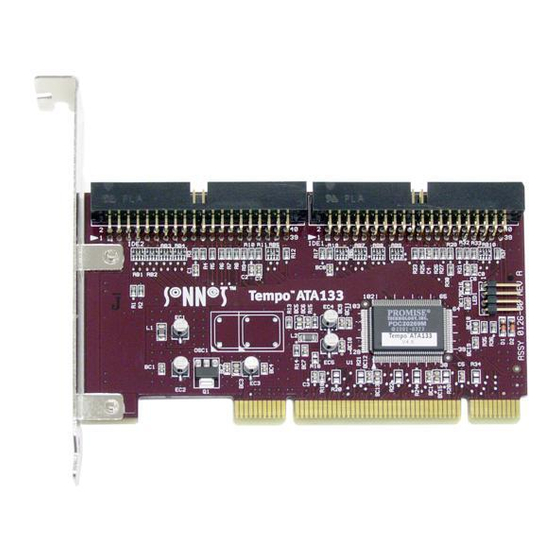

• One Tempo ATA133 Macintosh PCI Host Adapter
• One Ultra ATA cable (supporting two internal hard drives)
• Eight screws (for mounting hard drives)
The following items may be required for installation:
• Medium Phillips screwdriver
• Small fl at blade screwdriver
• Needle nose pliers
• Drive mounting brackets/carriers or drive mounting sleds (sold
separately)
• One additional Ultra ATA cable (sold separately)
• One or more power cable Y-adapters (sold separately)

System Requirements

The Tempo ATA133 requires the following in order to operate in your system:
• One available PCI slot
• One or more hard drives (depending on confi guration)
• One or more available hard drive bays (depending on confi guration)
®
• Mac
OS 8.0 through OS X Version 10.2.x
Support Notes:
We recommend that you make a backup of important
information on your system's current hard drive prior to installing new
hardware or software.
When handling computer products, you must take care to prevent components
from being damaged by static electricity. Before opening your computer or
removing parts from their packages, always ground yourself first by touching
a metal part of the computer, such as a port access cover, and work in an area
free of static electricity; avoid carpeted areas. Handle all electronic components
only by their edges, and avoid touching connector traces and component pins.
WARNING:
If you are installing the enclosed Tempo ATA133 card into a
system running Mac OS X Version 10.0–10.1.5, you MUST update the
card's firmware in order for OS X to recognize any attached drive. For complete
instructions, visit our web site at www.sonnettech.com/support/tempoata.
Remember to register your product online at http://registration.sonnettech.com to be informed of future upgrades and product releases.
Software updates and links are available from the Sonnet web site at www.sonnettech.com. • Online support form available at http://supportform.sonnettech.com.
Sonnet Technologies Customer Service hours are Mon.-Fri., 7 a.m.–5 p.m. Pacific Time • Customer Service Phone: 1-949-472-2772 • E-mail: support@sonnettech.com
Sonnet Technologies, Inc., Irvine, California USA • Tel: 1-949-587-3500 Fax: 1-949-457-6350
©2002 Sonnet Technologies, Inc. Revised 2003. All rights reserved. Sonnet, the Sonnet logotype, Simply Fast, the Simply Fast logotype, and Tempo are trademarks of Sonnet Technologies, Inc. Tempo ATA133 includes technol-
ogy by FirmTek, LLC. Macintosh and Mac are trademarks of Apple Computer, Inc., registered in the United States and other countries. Other product names are trademarks of their respective owners. Product specifications
subject to change without notice. Printed in the USA. QS-TAT-133-E-B-091503
133
ATA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TEMPO ATA133 and is the answer not in the manual?

Questions and answers

Related Manuals for Sonnet TEMPO ATA133

Summary of Contents for Sonnet TEMPO ATA133

  • Page 1: System Requirements

    Sonnet Technologies, Inc., Irvine, California USA • Tel: 1-949-587-3500 Fax: 1-949-457-6350 ©2002 Sonnet Technologies, Inc. Revised 2003. All rights reserved. Sonnet, the Sonnet logotype, Simply Fast, the Simply Fast logotype, and Tempo are trademarks of Sonnet Technologies, Inc. Tempo ATA133 includes technol- ogy by FirmTek, LLC.
  • Page 2 Tempo ATA133 Installation Preparation Prior to installing the Tempo ATA133 and hard drives into your system, you should familiarize yourself with the parts to be installed. We also strongly recommend that you read the sections in your computer’s user manual that address hard drive and PCI card installation.
  • Page 3 (Figure 6). Save the panel in case you ever need to use it again. support stand 11. Route the Ultra ATA cable(s) to the Tempo ATA133 card; avoid the proces- sor’s heat sink and make sure the cables will not get crushed or pinched by Figure 6 any part of the case when the computer is reassembled.
  • Page 4 Quick Start Guide for Tempo ATA133 12. Attach the Ultra ATA cables’ host (blue) connectors to the Tempo ATA133 card. 13. Check the cable connections; make sure all cables are connected securely to the Tempo ATA133 and the hard drives.
  • Page 5 7. When the Warning window appears, click the Partition button (Figure 12). If necessary, repeat steps 4–6 to partition other drives connect- ed to the Tempo ATA133. When partitioning and formatting are complete, close the Disk Utility application; you can now use your drive(s).
  • Page 6 What is the Tempo AV Tool? The Tempo AV Tool is a control panel which optimizes the playback of audio and video fi les from drives attached to the Tempo ATA133, and eliminates the video artifacts and audio stuttering common to other PCI host adapters installed in pre-G3 Power Macintosh and Macintosh clone computers.
