Fisher-Price Power Wheels T6991 Owner's Manual With Assembly Instructions

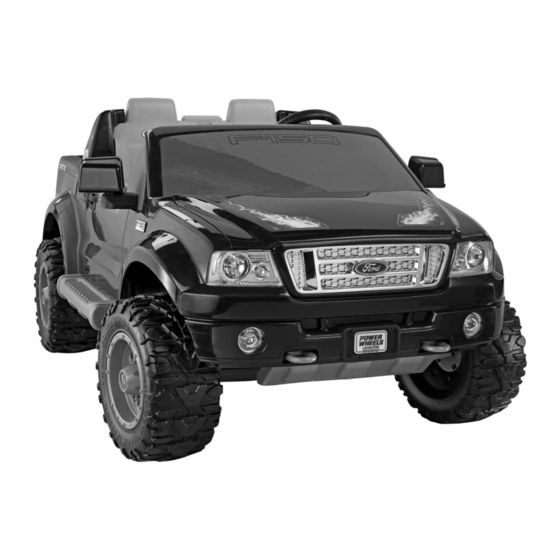

Ford f-150
Hide thumbs Also See for Power Wheels T6991:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Owner's Manual
• Please read this manual and save it with your
• Please read this manual and save it with your
original sales receipt.
original sales receipt.
• • Tool needed for assembly: Phillips Screwdriver
Tool needed for assembly: Phillips Screwdriver
(not included).
(not included).
• Use only with the included Power Wheels
• Use only with the included Power Wheels
12 Volt Lead-Acid Rechargeable Battery with
12 Volt Lead-Acid Rechargeable Battery with
Built-in Thermal Fuse and a Power Wheels
Built-in Thermal Fuse and a Power Wheels
12 Volt Charger with type 12V connector
12 Volt Charger with type 12V connector
(both included).
(both included).
• Requires four "C" (LR14) alkaline batteries
• Requires four "C" (LR14) alkaline batteries
(not included) for FM radio operation.
(not included) for FM radio operation.
with Assembly Instructions for
with Assembly Instructions for
Models T6991, W0030, W0029
Models T6991, W0030, W0029
Owner's Manual
Owner's Manual
® ®
® ®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Power Wheels T6991 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Fisher-Price Power Wheels T6991

Summary of Contents for Fisher-Price Power Wheels T6991

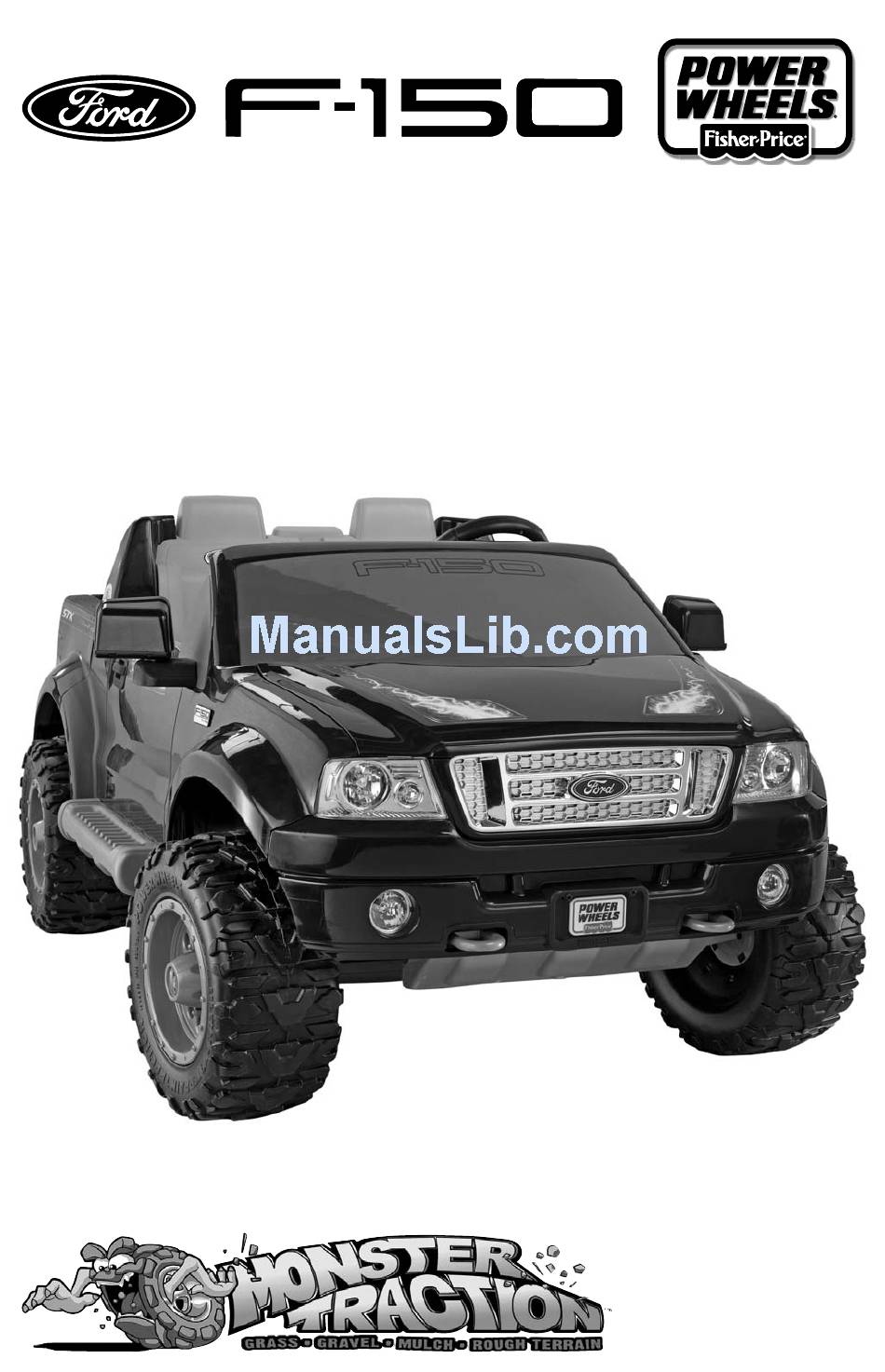

  • Page 1 • Requires four "C" (LR14) alkaline batteries (not included) for FM radio operation. (not included) for FM radio operation. Owner's Manual Owner's Manual with Assembly Instructions for with Assembly Instructions for Models T6991, W0030, W0029 Models T6991, W0030, W0029 ® ® ® ®...

  • Page 2: Electrical Hazard

    IMPORTANT INFORMATION ELECTRICAL HAZARD • To prevent electric shock, do not immerse in water; wipe clean with a damp cloth. • Battery can fall out and injure a child if vehicle tips over. Always use battery retainer. • PREVENT FIRE - Never modify the electrical system.
  • Page 3 IMPORTANT INFORMATION • Read this manual carefully for important safety information and operating instructions before using your vehicle. Keep this manual for future reference, as it contains important information. • This vehicle is appropriate for use on generally level, rough terrain (including hard surfaces, wet and dry grass, ruts, gravel, mulch and mud) and by children 3 years of age and older.
  • Page 4 • If you experience a problem with this product, or are missing a part, please call us at 1-800-348-0751, rather than return this product to the store. • Please identify all parts before assembly and save all packaging material until assembly is complete to ensure that no parts are discarded.
  • Page 5 PARTS Steering Wheel Steering Wheel Cover 12 Volt Charger 12 Volt Battery 2 Rear Wheels Steering Column 2 Hubcaps Steering Column Cap Part Not Shown: Label Sheet 0,25" x 2,85" Pin - 1 #8 x " Screw - 19 Wire Clip - 2 Fasteners Shown Actual Size For your convenience, we included extra fasteners! Note: Tighten and loosen all screws with a Phillips screwdriver.

  • Page 6: Parts Picture

    PARTS PICTURE Note: Some parts shown are assembled to both sides of the vehicle. Fasteners not shown. T6991a-0920...

  • Page 7: Battery Charging

    ELECTRICAL HAZARD WARNING • Battery can fall out and injure a child if vehicle tips over. Always use battery retainer. • PREVENT FIRE - Never modify the electrical system. Alterations could cause a fi re resulting in serious injury and could also ruin the electrical system.
  • Page 8 WARNING Children can be harmed by small parts, sharp edges and sharp points in the vehicle's unassembled state, or by electrical items. Care should be taken in unpacking and assembly of the vehicle. Children should not handle parts, including the battery, or help in assembly of the vehicle.
  • Page 9 DASH VIEW • Place the labels exactly as shown in the illustration and avoid repositioning a label once it has been applied. Lower Bend Down • Wipe the steering column with a paper towel to remove any excess lubricant. • Position the steering wheel so that the large opening is upright.
  • Page 10 DASH VIEW • Insert the end of the steering column down through the opening in the dash and down through the hole in the vehicle floor. Hint: You may need to turn the steering column to fit it through both openings. PRESS •...
  • Page 11 Screws BOTTOM VIEW • Carefully turn the vehicle over. • Insert four screws into the underside of the vehicle and into the cargo bed. Tighten the screws. Steering Column Cap • Fit the steering column cap onto the end of the steering column.
  • Page 12 Screws • Fit the pegs on the underside of the grille support into the receptacles on the vehicle. • Insert two screws into the grille support and tighten. Rear Axle Rear Wheel • Slide a rear wheel onto the rear axle. Hint: Note the number on the inside of the wheel and on the bottom of the vehicle near the rear axle.
  • Page 13 CORRECT INCORRECT INCORRECT • If the clip is upside down or not through both holes in the axle, you have not assembled it properly. Please remove the clip and go back to step 18. ASSEMBLY • Align the tabs on a hubcap with the slots in a rear wheel.
  • Page 14 Seat Slots BACK VIEW • Turn the vehicle upright. • Insert both tabs on the back edge of the seat into the slots inside the bed. Screws • Insert two screws through the back of the seat and into the vehicle. Tighten the screws. T6991a-0920 ASSEMBLY •...

  • Page 15: Battery Safety Information

    ASSEMBLY 1,5V x 4 "C" (LR14) DASH VIEW • Locate the radio on the dash. • Loosen the screws in the radio cover and remove it. • Insert four “C” (LR14) alkaline batteries into the battery compartment. Hint: We recommend using alkaline batteries for longer battery life.

  • Page 16: Left Side View

    • Wipe the vehicle with a clean, dry cloth to remove any oils before applying labels. • Apply labels exactly as shown in the illustrations. For best results, avoid repositioning the label after it has been applied. • Starting at the center of a label rub firmly with a dry cloth, and smooth towards the outer edges to remove air bubbles.
  • Page 17 DECORATION FRONT VIEW TOP VIEW T6991b-0920...

  • Page 18: Battery Installation

    BATTERY INSTALLATION IMPORTANT! Use only a Power Wheels acid rechargeable battery. Use of any other battery will damage your vehicle. ® Power Wheels 12 Volt Battery Motor Harness Connector • Lift the hood. • Plug the motor harness connector into the battery. Battery Retainer •...

  • Page 19: Safe Driving Rules

    RIDING HAZARD WARNING • Prevent Injuries and Deaths • Direct Adult Supervision Required. • Never Ride at Night. • Keep Children Within Safe Riding Areas. These areas must be: - away from swimming pools and other bodies of water to prevent drownings - generally level to prevent tipovers - away from steps, steep inclines,...

  • Page 20: Vehicle Operation

    Help your child practice steering to learn how far and how quickly to turn the steering wheel when driving, and automatically knows how to stop. Beginner Use - Low Speed • As assembled, your vehicle is ready to roll in low speed (2½...

  • Page 21: Vehicle Care

    VEHICLE CARE • Check all screws and their protective coverings regularly and tighten as required. Check plastic parts on a regular basis for cracks or broken pieces. • During snowy or rainy weather, the vehicle should be stored inside or under a protective cover. •...

  • Page 22: Problems And Solutions

    PROBLEMS AND SOLUTIONS IMPORTANT! If you experience a problem with your vehicle, first check the Problems and Solutions Guide below. If you still experience a problem, please contact Power Wheels contact your local Power Wheels www.powerwheels.com, or call 1-800-348-0751. PROBLEM Vehicle does not run T6991a-0920 Consumer Relations, toll-free at 1-800-348-0751.
  • Page 23 PROBLEMS AND SOLUTIONS PROBLEM Vehicle was running but Loose wire or loose connectors suddenly stopped Tripped thermal fuse Short run time (Less than Undercharged battery 1 - 3 hours per charge) Overcharged battery Battery is old and will not accept full charge Tripped thermal fuse POSSIBLE CAUSE...
  • Page 24 PROBLEMS AND SOLUTIONS PROBLEM Vehicle runs sluggishly T6991a-0920 POSSIBLE CAUSE Undercharged battery Battery needs charging Battery is old and will not accept full charge Vehicle is overloaded Driving conditions are too stressful SOLUTION Charge the battery. A new battery should have been charged for at least 18 hours before using the vehicle for the fi rst time.
  • Page 25 PROBLEMS AND SOLUTIONS PROBLEM Vehicle runs in low speed, but High speed lock-out not does not run in high speed. disconnected Please note: The vehicle is designed to operate in low speed only in reverse When the foot pedal is pressed Operation of vehicle in low speed one rear wheel spins Sometimes the vehicle doesn’t...
  • Page 26 PROBLEMS AND SOLUTIONS PROBLEM Loud clacking or grinding noise from a motor-gearbox Charger gets warm during use Battery makes a sizzling or gurgling noise when charging FM Radio does not function FM Radio station changes automatically FM Radio functions erratically T6991b-0920 POSSIBLE CAUSE Broken gears...

  • Page 27: Fcc Statement

    FCC STATEMENT United States Only This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 28 Authorized Service Center. For the location nearest you, visit us on-line at www.powerwheels.com. Ford Oval and F-150 are registered trademarks owned and licensed by Ford Motor Company. Manufactured by Fisher-Price, Inc., a subsidiary of Mattel, Inc. www.ford.com Fisher-Price, Inc., a subsidiary of Mattel, Inc., East Aurora, New York 14052 U.S.A.
