Please read this manual and save it with
your original sales receipt.
Tools needed for assembly:
Phillips Screwdriver and
Slotted Screwdriver (both not included).
Use only with a Power Wheels
®
6 Volt Rechargeable Battery with A-style
Connector and Built-in Thermal Fuse
and a Power Wheels
®
Super 6 Volt Charger (both included).

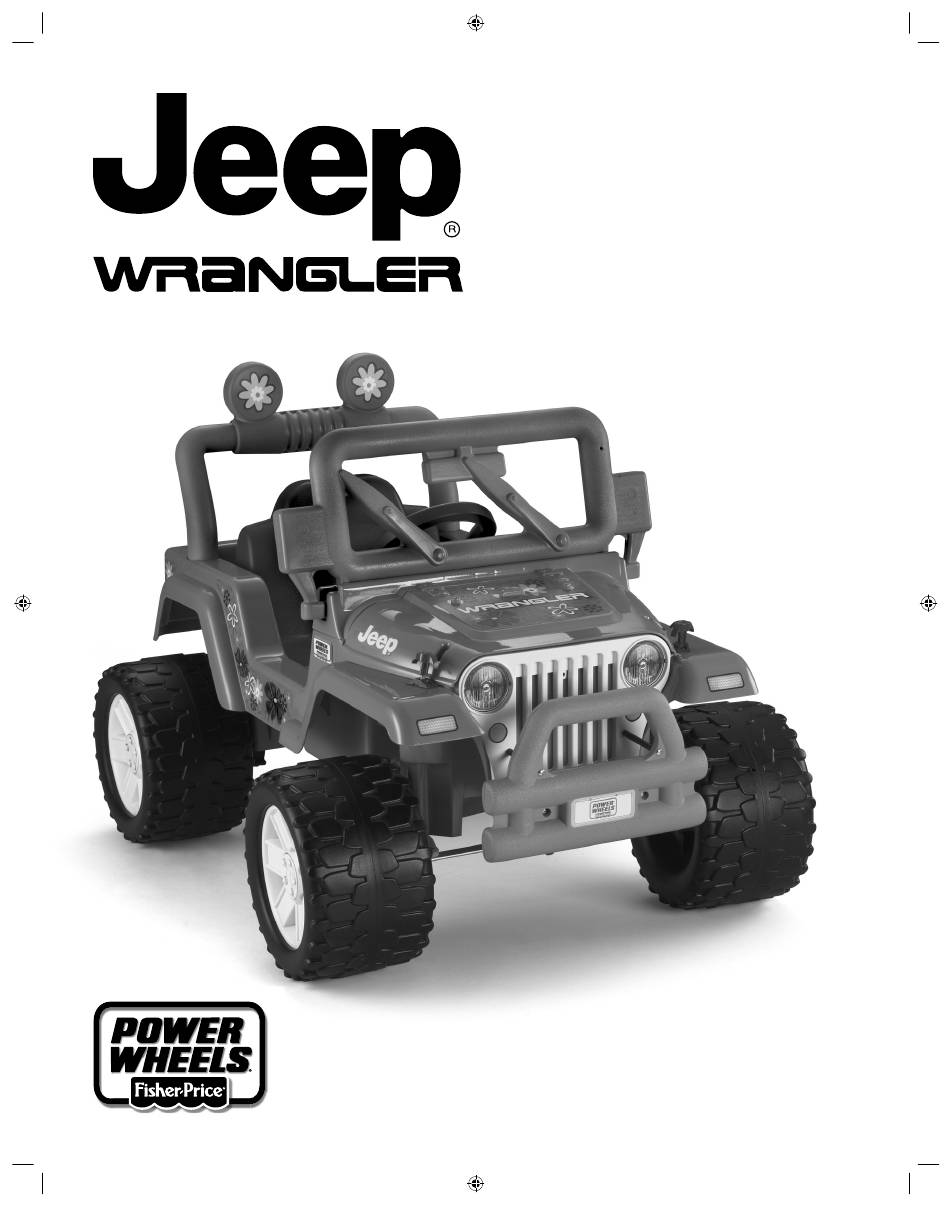

Product features may vary from the picture above.
Owner's Manual
with Assembly Instructions
For Model T1964
Advertisement
Table of Contents
Related Manuals for Fisher-Price Power Wheels Jeep WRANGLER T1964
Summary of Contents for Fisher-Price Power Wheels Jeep WRANGLER T1964
- Page 1 Please read this manual and save it with your original sales receipt. Tools needed for assembly: Phillips Screwdriver and Slotted Screwdriver (both not included). Use only with a Power Wheels ® 6 Volt Rechargeable Battery with A-style Connector and Built-in Thermal Fuse and a Power Wheels ®...
-
Page 2: Table Of Contents
1-800-348-0751. • Use this vehicle ONLY outdoors. Most interior flooring can be • To register your vehicle, please visit us on-line at damaged by riding this vehicle indoors. Fisher-Price will not ® www.powerwheels.com. - Page 3 IMPORTANT INFORMATION ELECTRICAL HAZARD DANGER • To reduce the risk of fi re or electric shock, carefully follow these instructions. To prevent electric shock, do not immerse in water; wipe clean with a damp cloth. WARNING • Battery can fall out and injure a child if vehicle tips over. Always use battery retainer. •...
-
Page 4: Parts
PARTS • If you experience a problem with this product, or are missing a part, please call us at 1-800-348-0751, rather than return this product to the store. • Please identify all parts before assembly and save all packaging material until assembly is complete to ensure that no parts are discarded. - Page 5 PARTS Steering Wheel Cap Hood Latch - 2 Spacer - 2 #8 x 4" Screw - 2 Super 6 Volt Charger #8 x ¾" Screw – 3 #10 x 1" Screw – 8 " x 1½" Pin 6 Volt Battery Fasteners Shown Actual Size For your convenience, we included extra fasteners! Note: Tighten and loosen all screws with a Phillips...
-
Page 6: Parts Picture
PARTS PICTURE Vehicle Steering Column Super 6 Volt Charger Parts Not Shown Dashboard Steering Wheel 6 Volt Battery #10 x 1" Screw - 8 Windshield Steering Wheel Cap Spacer - 2 #8 x ¾" Screw - 3 Hood Roll Bar "... -
Page 7: Battery Charging
BATTERY CHARGING ELECTRICAL HAZARD ELECTRICAL HAZARD WARNING CAUTION • Battery can fall out and injure a child Use the charger in dry locations only. if vehicle tips over. Always use battery retainer. About Thermal Fuses • PREVENT FIRE ® Your Power Wheels 6 volt battery with A-style connector - Never modify the electrical system. - Page 8 BATTERY CHARGING A-Style Charger Connector A-Style Battery Connector NO GAP Incorrect Correct • Plug the battery connector and charger connector together. • Plug the charger into a standard wall outlet. Push firmly to make sure the two connectors are Notes: completely joined.
-
Page 9: Assembly
ASSEMBLY WARNING Children can be harmed by small parts, Seat Tabs sharp edges and sharp points in the vehicle's unassembled state, or by electrical items. Care should be taken in unpacking and assembly of the vehicle. Children should not handle parts, including the battery, or help in assembly of the vehicle. - Page 10 ASSEMBLY #10 x 1" Screw Dashboard • Place the dashboard on top of the vehicle, as shown. • Insert a #10 x 1" screw into the back edge of the seat. Tighten • Insert five #10 x 1" screws into the dashboard and tighten. the screw.
- Page 11 ASSEMBLY End of Steering Column Large Hole in Dashboard Steering Column " x 1½" Pin Bend Up PUSH • While holding the steering wheel, grasp the steering column and push it up as far as it will go. • Insert the "...
- Page 12 ASSEMBLY Hood Latches Slots • Insert a #8 x ¾" screw through the large opening in the steering column cap and the hole in the steering column. • Insert a hood latch into each slot in the front end of the vehicle. Tighten the screw.
- Page 13 ASSEMBLY Spacers Lock Fastener Lock Fastener Unlocked Locked • Using a slotted screwdriver, turn each lock fastener in the hood turn to the locked position. #8 x 4" Screws IMPORTANT! Remember to keep the lock fasteners locked at all times to prevent children from accessing the vehicle battery compartment.
-
Page 14: Decoration
DECORATION Proper label application will help to keep the labels looking their best! When applying labels, keep the following guidelines in mind: • Wash your hands before applying the labels. • Before applying the labels, wipe the surface of the vehicle with a clean, dry cloth to remove any dust or oils. •... - Page 15 DECORATION FRONT LEFT SIDE FRONT RIGHT SIDE T1964pr-0923 T1964pr-0920...
-
Page 16: Battery Installation
BATTERY INSTALLATION IMPORTANT! Use only a Power Wheels 6 volt battery with ® Battery A-style connector and built-in thermal fuse. Use of any other battery will damage your vehicle. Make sure that you charge the Connector battery for at least 18 hours using the enclosed Power Wheels ®... -
Page 17: Battery Care And Disposal
BATTERY CARE AND DISPOSAL Care Disposal If a battery leak develops, avoid contact with the leaking acid • Your Power Wheels battery is a non-spillable sealed lead- ® and place the damaged battery in a plastic bag. See information acid battery. They must be recycled or disposed of in an below for proper disposal. -
Page 18: Safe Driving Rules
SAFE DRIVING RULES Teach Safety Rules to Children RIDING HAZARD While children can quickly develop the skill necessary to drive this vehicle, it is important to remember that their judgment skills are WARNING still very immature. Unsupervised driving by children can lead to serious injury. -
Page 19: Vehicle Operation
Check plastic parts on a flooring can be damaged by riding this vehicle indoors. regular basis for cracks or broken pieces. Fisher-Price will not be responsible for damage to the floor ® • During snowy or rainy weather, the vehicle should be stored if the vehicle is used indoors. -
Page 20: Limited Warranty
BUMPER-TO-BUMPER* LIMITED WARRANTY *One year limited warranty from the date of purchase on the Power Wheels ® vehicle. Six month limited warranty on the 6 volt battery. For the original purchaser, this one year limited warranty covers the Power Wheels ride-on vehicle (purchased from Power Wheels ®... -
Page 21: Problems And Solutions Guide
PROBLEMS AND SOLUTIONS GUIDE IMPORTANT! If you experience a problem with your vehicle, first check the Problems and Solutions Guide below. If you still experience a problem, please contact Power Wheels Consumer Relations, toll-free at 1-800-348-0751. Or, contact your local ®... - Page 22 PROBLEMS AND SOLUTIONS GUIDE PROBLEM POSSIBLE CAUSE SOLUTION Vehicle was running but Loose wires or loose connectors Check all wires and connectors. Make sure the battery suddenly stopped connector is tightly plugged into the motor harness con- nector, and that there are no loose wires around the motors. Tripped thermal fuse The built-in thermal fuse may "trip"...
- Page 23 PROBLEMS AND SOLUTIONS GUIDE PROBLEM POSSIBLE CAUSE SOLUTION Vehicle runs sluggishly Undercharged battery Charge the battery. A new battery should have been charged for at least 18 hours before using the vehicle for the fi rst time. After fi rst-time use, recharge the battery for at least 14 hours after each use.
- Page 24 Chrysler LLC. ® Chrysler LLC 2009. Fisher-Price, Inc., a subsidiary of Mattel, Inc., East Aurora, New York 14052 U.S.A. ©2009 Mattel, Inc. All Rights Reserved. ® and ™ designate U.S. trademarks of Mattel, Inc., unless otherwise indicated.
