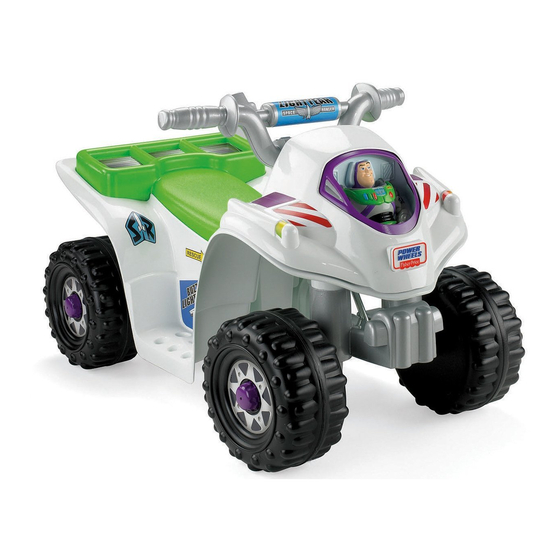

Product features may vary from the picture above.
Please read this manual and save it with your original sales receipt.
Tools needed for assembly: Assembly tool (included)
and Phillips Screwdriver (not included). Tool needed to access battery compartment:
Slotted screwdriver (not included)
Use only with a Power Wheels
®
6 Volt (4.0 Amp/Hr.) Rechargeable
Battery with Built-in Thermal Fuse and a Power Wheels
®
6 Volt
(4.0 Amp/Hr.) Charger (both included).
Owner's Manual
with Assembly Instructions
For Model T5003

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Power Wheels T5003 and is the answer not in the manual?

Questions and answers

Related Manuals for Fisher-Price Power Wheels T5003

Summary of Contents for Fisher-Price Power Wheels T5003

  • Page 1 Slotted screwdriver (not included) Use only with a Power Wheels ® 6 Volt (4.0 Amp/Hr.) Rechargeable Battery with Built-in Thermal Fuse and a Power Wheels ® 6 Volt (4.0 Amp/Hr.) Charger (both included). Owner's Manual with Assembly Instructions For Model T5003...

  • Page 2: Electrical Hazard

    IMPORTANT INFORMATION ELECTRICAL HAZARD • To prevent electric shock, do not immerse in water; wipe clean with a damp cloth. • Battery can fall out and injure a child if vehicle tips over. Always use battery retainer. • PREVENT FIRE - Never modify the electrical system.
  • Page 3 20 minutes for assembly. • Use this vehicle ONLY outdoors. Most interior flooring can be damaged by riding this vehicle indoors. Fisher-Price ® will not be responsible for damage to the floor if the vehicle is used indoors.
  • Page 4 • If you experience a problem with this product, or are missing a part, please call us at 1-800-348-0751, rather than return this product to the store. • Please identify all parts before assembly and save all packaging material until assembly is complete to ensure that no parts are discarded.

  • Page 5: Parts Picture

    PARTS PICTURE Note: Fasteners not shown. T5003pr-0920...

  • Page 6: Battery Charging

    ELECTRICAL HAZARD ELECTRICAL HAZARD WARNING • Battery can fall out and injure a child if vehicle tips over. Always use battery retainer. • PREVENT FIRE - Never modify the electrical system. Alterations could cause a fi re resulting in serious injury and could also ruin the electrical system.
  • Page 7 IMPORTANT! The battery must be removed from your vehicle for the initial charge in order to complete assembly. After assembly is complete, you do not need to remove the battery from your vehicle to recharge it. Seat Unlocked Lock Fastener •...
  • Page 8 WARNING Children can be harmed by small parts, sharp edges and sharp points in the vehicle's unassembled state, or by electrical items. Care should be taken in unpacking and assembly of the vehicle. Children should not handle parts, including the battery, or help in assembly of the vehicle.
  • Page 9 Assembly Tool Lock Nut Steering Column • Fit the lock nut (rounded side up) on to the end of the steering column. • Tighten the lock nut firmly using the closed end of the assembly tool. Steering Column • “Snap” the steering column cap to the front wheel assembly.
  • Page 10 • Wipe the vehicle with a clean, dry cloth to remove any oils before applying labels. • Apply labels exactly as shown in the illustrations. For best results, avoid repositioning the label after it has been applied. • Starting at the center of a label rub firmly with a dry cloth, and smooth towards the outer edges to remove air bubbles. FRONT VIEW T5003pr-0920 DECORATION...
  • Page 11 DECORATION LEFT VIEW RIGHT VIEW T5003pr-0920...

  • Page 12: Battery Installation

    BATTERY INSTALLATION IMPORTANT! Use only a Power Wheels (4.0 Amp/Hr) rechargeable battery. Use of any other battery will damage your vehicle. Unlocked Seat Lock Fastener • Locate the lock fastener in the back end of the seat. • Using a slotted screwdriver, turn the lock fastener turn to the unlocked position •...
  • Page 13 BATTERY INSTALLATION Battery Connector • Plug the battery connector into the motor connector. Hint: If the battery connector will not plug into the motor connector, turn it over and try again! Do not force the battery connector into the motor connector. Seat Tab Seat •...

  • Page 14: Battery Care

    BATTERY CARE If a battery leak develops, avoid contact with the leaking acid and place the damaged battery in a plastic bag. See next section for proper disposal. If acid comes in contact with skin or eyes, flush with cool water for at least 15 minutes and call a physician. If acid is internally ingested, give water, milk of magnesia or egg whites immediately.

  • Page 15: Safe Driving Rules

    RIDING HAZARD WARNING • Prevent Injuries and Deaths • Direct Adult Supervision Required • Never Ride at Night. • Keep Children Within Safe Riding Areas. These areas must be: - away from swimming pools and other bodies of water to prevent drownings - generally level to prevent tipovers - away from steps, cars, steep...

  • Page 16: Vehicle Operation

    VEHICLE OPERATION Help your child practice steering to learn how far and how quickly to turn the steering wheel when driving, and automatically knows how to stop. Press • Press and hold the button on the handlebar. The vehicle drives forward at a maximum of 2 mph. •...

  • Page 17: Problems And Solutions Guide

    PROBLEMS AND SOLUTIONS GUIDE IMPORTANT! If you experience a problem with your vehicle, first check the Problems and Solutions Guide below. If you still experience a problem, please contact Power Wheels Or, contact your local Power Wheels on-line at www.powerwheels.com, or call 1-800-348-0751. PROBLEM POSSIBLE CAUSE Vehicle does not run...
  • Page 18 PROBLEMS AND SOLUTIONS GUIDE PROBLEM POSSIBLE CAUSE Vehicle was running but Loose wires or loose connectors suddenly stopped Tripped thermal fuse Short run time (Less than Undercharged battery 1 - 3 hours per charge) Overcharged battery Battery is old and will not accept full charge Tripped thermal fuse T5003pr-0920...
  • Page 19 PROBLEMS AND SOLUTIONS GUIDE PROBLEM POSSIBLE CAUSE Vehicle runs sluggishly Undercharged battery longer than 30 hours. Battery needs charging Battery is old and will not accept full charge Vehicle is overloaded Driving conditions are too stressful Sometimes the vehicle Loose wire or connector doesn’t run, but other times it does Motor or electrical switch damage...
  • Page 20 For the location nearest you, visit us on-line at www.powerwheels.com. ©Disney/Pixar www.disney.com/toystory Fisher-Price, Inc., a subsidiary of Mattel, Inc., East Aurora, New York 14052 U.S.A. ©2010 Mattel, Inc. All Rights Reserved. ® and ™ designate U.S. trademarks of Mattel, Inc. unless otherwise indicated. PRINTED IN MEXICO...

This manual is also suitable for:

Toy story 3 t5003
