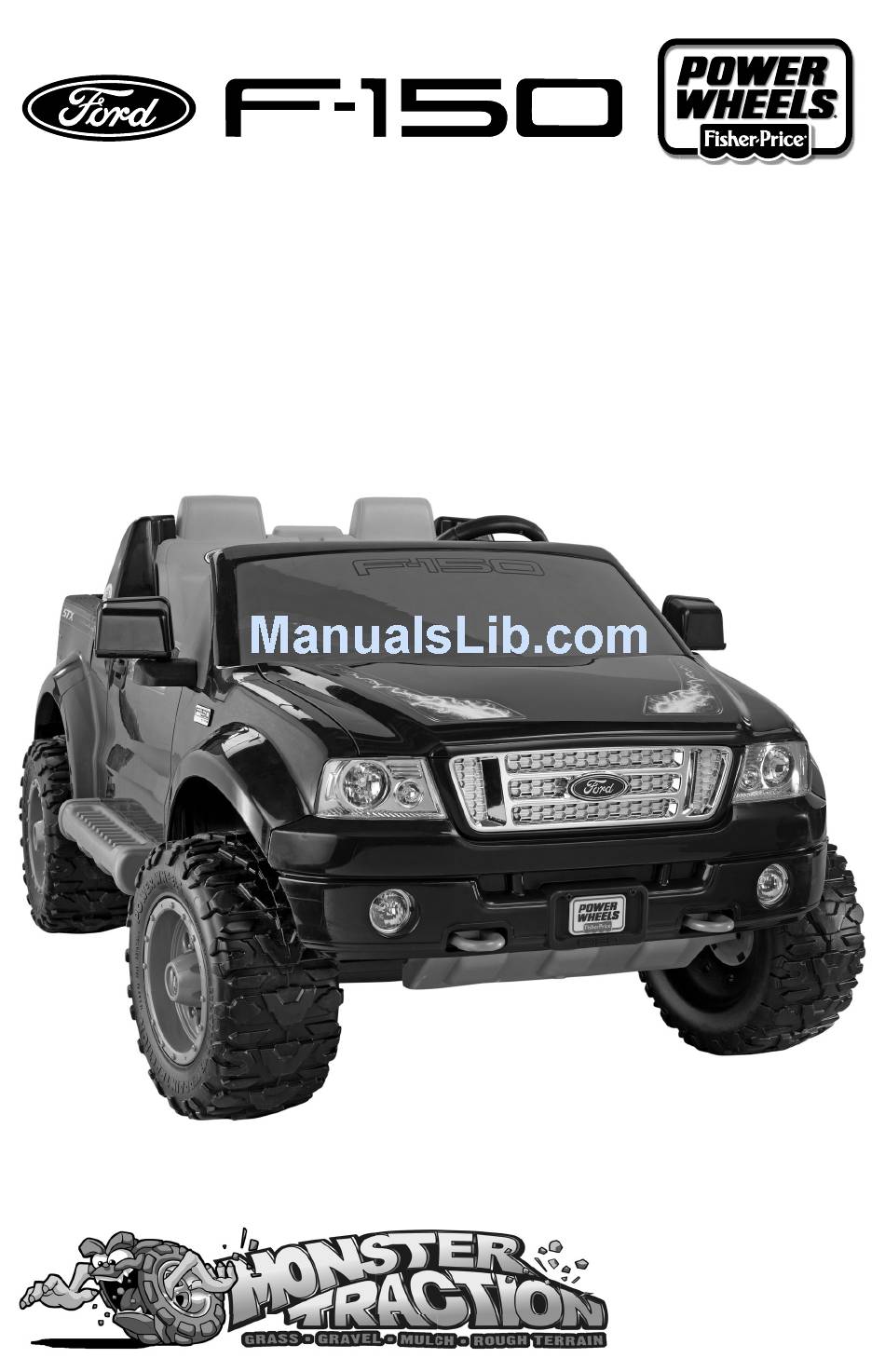

Fisher-Price Power Wheels T6991 Owner's Manual

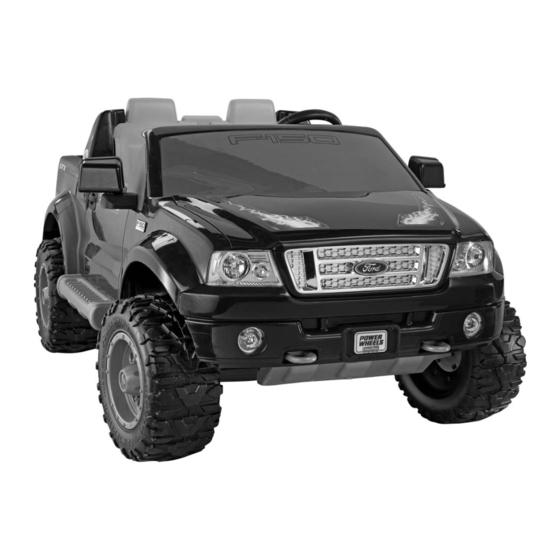

Power wheels ford f-150
Hide thumbs Also See for Power Wheels T6991:
Table of Contents

Advertisement

Quick Links

Download this manual
• Please read this manual and save it with your
• Please read this manual and save it with your
original sales receipt.
original sales receipt.
• • Tool needed for assembly: Phillips Screwdriver
Tool needed for assembly: Phillips Screwdriver
(not included).
(not included).
• Use only with the included Power Wheels
• Use only with the included Power Wheels
12 Volt Lead-Acid Rechargeable, Battery with
12 Volt Lead-Acid Rechargeable, Battery with
Built-in Thermal Fuse and a Power Wheels
Built-in Thermal Fuse and a Power Wheels
12 Volt Charger with type 12V connector
12 Volt Charger with type 12V connector
(both included).
(both included).
• Requires four "C" (LR14) alkaline batteries
• Requires four "C" (LR14) alkaline batteries
(not included) for FM radio operation.
(not included) for FM radio operation.
Owner's Manual
Owner's Manual
with Assembly Instructions
with Assembly Instructions
For Model T6991
For Model T6991
® ®
® ®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Power Wheels T6991 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Fisher-Price Power Wheels T6991

Summary of Contents for Fisher-Price Power Wheels T6991

  • Page 1 • Please read this manual and save it with your • Please read this manual and save it with your original sales receipt. original sales receipt. • • Tool needed for assembly: Phillips Screwdriver Tool needed for assembly: Phillips Screwdriver (not included).

  • Page 2: Electrical Hazard

    IMPORTANT INFORMATION ELECTRICAL HAZARD DANGER • To prevent electric shock, do not immerse in water; wipe clean with a damp cloth. WARNING • Battery can fall out and injure a child if vehicle tips over. Always use battery retainer. • PREVENT FIRE - Never modify the electrical system.
  • Page 3 fl ooring can be damaged by riding this vehicle representatives are available to take your call in English indoors. Fisher-Price® will not be responsible for or French. Habla Español? Si usted tiene alguna pregunta damage to the fl oor if the vehicle is used indoors.
  • Page 4 PARTS • If you experience a problem with this product, or are missing a part, please call us at 1-800-348-0751, rather than return this product to the store. • Please identify all parts before assembly and save all packaging material until assembly is complete to ensure that no parts are discarded.
  • Page 5 PARTS Steering Wheel Steering Wheel Cover 12 Volt Charger 12 Volt Battery 2 Rear Wheels Steering Column 2 Hubcaps Steering Column Cap Part Not Shown: Label Sheet ,25" x 2,85" Pin - 1 #8 x " Screw - 19 Wire Clip - 2 Fasteners Shown Actual Size For your convenience, we included extra fasteners! Note: Tighten and loosen all screws with a Phillips screwdriver.

  • Page 6: Parts Picture

    PARTS PICTURE Note: Some parts shown are assembled to both sides of the vehicle. Fasteners not shown. T6991pr-0920...

  • Page 7: Battery Charging

    BATTERY CHARGING • Make sure you charge the battery for at least 18 hours ELECTRICAL HAZARD using the enclosed Power Wheels® 12 volt charger before operating your vehicle for the fi rst time. Charge WARNING the battery for at least 14 hours after each use of the vehicle.
  • Page 8 ASSEMBLY Screws WARNING Children can be harmed by small parts, sharp edges and sharp points in the vehicle's unassembled state, or by electrical items. Care should be taken in unpacking and assembly of the vehicle. Children should not handle parts, including the battery, or help in assembly of the vehicle.
  • Page 9 ASSEMBLY ,25" x 2,85" Pin DASH VIEW • Align the hole in the steering wheel with the hole in the steering column. • Place the labels exactly as shown in the illustration and • Insert the ,25" x 2,85" pin all the way through the hole avoid repositioning a label once it has been applied.
  • Page 10 ASSEMBLY Cargo Bed Steering Column SIDE VIEW • Fit the tabs on the cargo bed into the slots in the back of the vehicle, as shown. • Insert the end of the steering column down through the opening in the dash and down through the hole in the vehicle floor.
  • Page 11 ASSEMBLY Screws Screw • Insert a screw through the large opening in the steering column cap and the hole in the steering BOTTOM VIEW column. Tighten the screw. • Carefully turn the vehicle over. • Insert four screws into the underside of the vehicle and into the cargo bed.
  • Page 12 ASSEMBLY Screws • Position the wire clip so that the wavy side is out. • Insert the straight side of the clip through the hole in the axle. • Fit the pegs on the underside of the grille support into the receptacles on the vehicle.
  • Page 13 ASSEMBLY CORRECT Hubcap • Align the tabs on a hubcap with the slots in a rear wheel. “Snap” a hubcap into the center of the rear wheel. Hint: If the hubcap does not "snap" into place, you may not have assembled the wire clip properly. Remove the wire clip and refer back to step 18.
  • Page 14 ASSEMBLY Seat Screws Screws TOP VIEW • Insert two screws into the tabs on the front edge of the seat and tighten. Slots Hood Hood BACK VIEW • Turn the vehicle upright. • Insert both tabs on the back edge of the seat into the slots inside the bed.

  • Page 15: Battery Safety Information

    ASSEMBLY BATTERY SAFETY INFORMATION In exceptional circumstances batteries may leak fluids that can cause a chemical burn injury or ruin your toy. 1,5V x 4 To avoid battery leakage: "C" (LR14) • Do not mix old and new batteries or batteries of different types: alkaline, standard (carbon-zinc) or rechargeable (nickel-cadmium).

  • Page 16: Left Side View

    DECORATION • Wipe the vehicle with a clean, dry cloth to remove any oils before applying labels. • Apply labels exactly as shown in the illustrations. For best results, avoid repositioning the label after it has been applied. • Starting at the center of a label rub firmly with a dry cloth, and smooth towards the outer edges to remove air bubbles.
  • Page 17 DECORATION FRONT VIEW TOP VIEW T6991pr-0920...

  • Page 18: Battery Installation

    BATTERY INSTALLATION BATTERY CARE If a battery leak develops, avoid contact with the IMPORTANT! Use only a Power Wheels ® 12 volt lead-acid leaking acid and place the damaged battery in a plastic rechargeable orange battery. Use of any other battery bag.

  • Page 19: Safe Driving Rules

    SAFE DRIVING RULES Before children use this vehicle, an adult should carefully RIDING HAZARD evaluate the driving area as well as the child’s skill level and ability to drive the vehicle safely. Teach appropriate WARNING safety rules to your child before allowing operation of this vehicle.

  • Page 20: Vehicle Operation

    VEHICLE OPERATION Help your child practice steering to learn how far and Advanced Use - High Speed how quickly to turn the steering wheel when driving, and automatically knows how to stop. Beginner Use - Low Speed Store lock-out screw here Remove lock-out screw for high speed.

  • Page 21: Vehicle Care

    VEHICLE CARE FM RADIO Volume • Check all screws and their protective coverings Power regularly and tighten as required. Check plastic parts on a regular basis for cracks or broken pieces. • During snowy or rainy weather, the vehicle should be stored inside or under a protective cover.

  • Page 22: Problems And Solutions

    PROBLEMS AND SOLUTIONS IMPORTANT! If you experience a problem with your vehicle, first check the Problems and Solutions Guide below. If you still experience a problem, please contact Power Wheels Consumer Relations, toll-free at 1-800-348-0751. Or, ® contact your local Power Wheels ®...
  • Page 23 PROBLEMS AND SOLUTIONS PROBLEM POSSIBLE CAUSE SOLUTION Vehicle was running but Loose wire or loose connectors Check all wires and connectors. Make sure the motor suddenly stopped harness connector is plugged into the battery, and that there are no loose wires around the motors. Tripped thermal fuse The built-in thermal fuse may "trip"...
  • Page 24 PROBLEMS AND SOLUTIONS PROBLEM POSSIBLE CAUSE SOLUTION Vehicle runs sluggishly Undercharged battery Charge the battery. A new battery should have been charged for at least 18 hours before using the vehicle for the fi rst time. After fi rst-time use, recharge the battery for at least 14 hours after each use.
  • Page 25 PROBLEMS AND SOLUTIONS PROBLEM POSSIBLE CAUSE SOLUTION Vehicle runs in low speed, but High speed lock-out not The vehicle was pre-set to run only in low speed. To does not run in high speed. disconnected allow the vehicle to run in low and high speed, you must disconnect the High Speed Lock-Out.
  • Page 26 PROBLEMS AND SOLUTIONS PROBLEM POSSIBLE CAUSE SOLUTION ® Loud clacking or grinding noise Broken gears Contact your local Power Wheels authorized service from a motor-gearbox center for diagnosis and repair. Charger gets warm during use It is normal for some chargers to No action required.

  • Page 27: Fcc Statement

    FCC STATEMENT LIMITED WARRANTY United States Only Bumper-to-Bumper* This equipment has been tested and found to comply with Limited Warranty the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide One year limited warranty from the date of reasonable protection against harmful interference in a purchase on the Power Wheels...
  • Page 28 Manufactured by Fisher-Price, Inc., a subsidiary of Mattel, Inc. www.ford.com Fisher-Price, Inc., a subsidiary of Mattel, Inc., East Aurora, New York 14052 U.S.A. ©2010 Mattel, Inc. All Rights Reserved. ® and ™ designate U.S. trademarks of Mattel, Inc., unless otherwise indicated.
