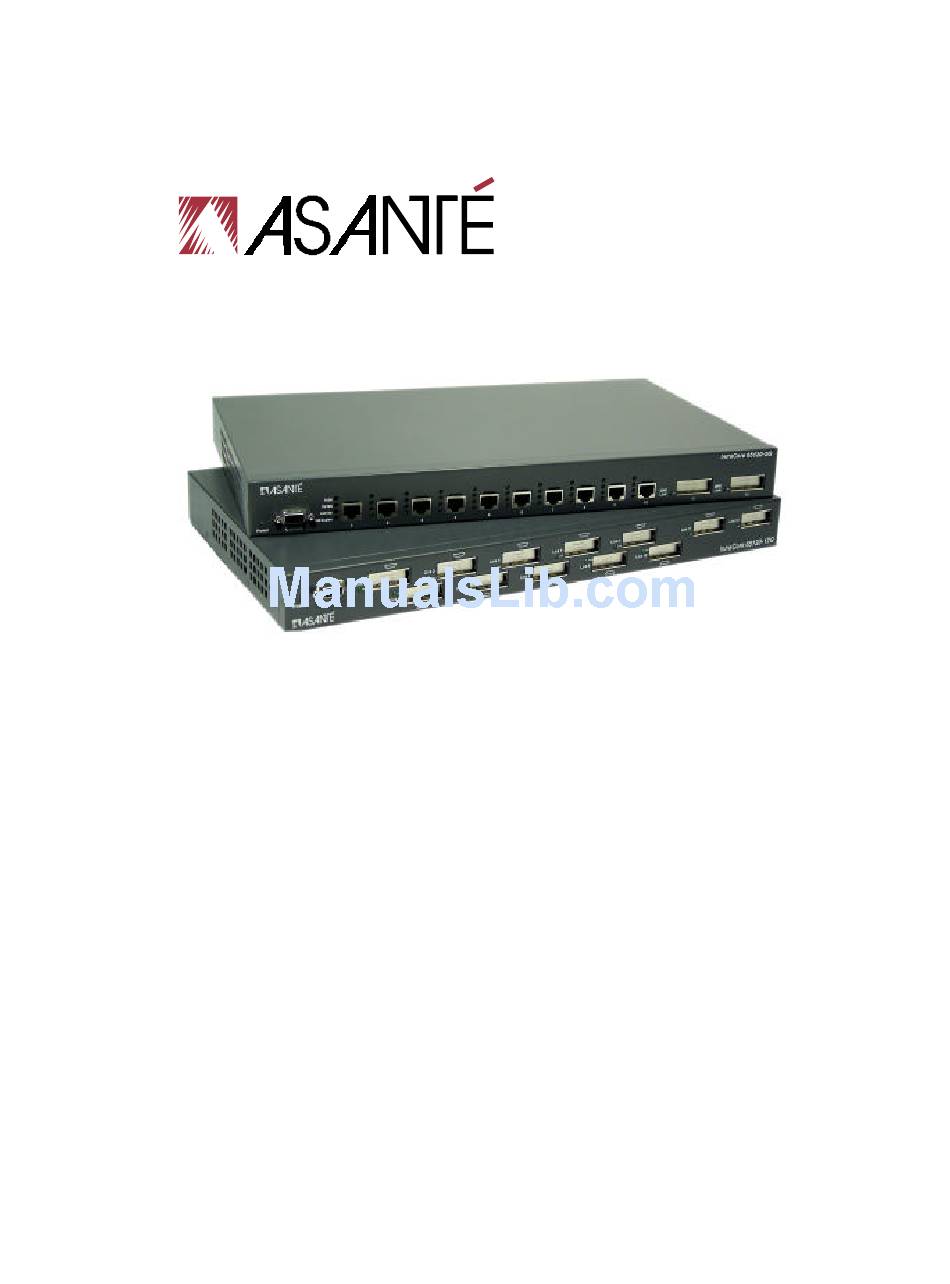

- Page 1 IntraCore 65120 Series ™ Gigabit Ethernet Switches Getting Started Guide...
-
Page 2: Quick Start Guide
Quick Start Guide Follow these steps to install the IntraCore 65120 switch: Open the box and check the contents. See Chapter 1.1 Package Contents for a complete list of the items included with your IntraCore switch. Install the IntraCore 65120 switch in an equipment or wall rack, or prepare it for desktop placement. -
Page 3: Table Of Contents
Table of Contents Quick Start Guide 1. Introduction 1.1 Package Contents 1.2 LEDs 1.3 Front Panel Description 2. Installation and Setup 2.1 Safety Overview 2.2 Recommended Installation Tools 2.3 Power Requirements 2.4 Environmental Requirements 2.5 Cooling and Airflow 2.6 Installation Overview 2.7 Chassis Installation and Placement 2.8 Installing GBIC Interfaces 2.9 Connecting Power... - Page 4 Getting Started Guide...
-
Page 5: Introduction
IntraCore series switches in the backbone. 1.1 Package Contents The following items are included in your package: IntraCore 65120 Series Gigabit Ethernet switch Self-adhesive rubber pads for desktop installation Rack mount kit for rack installation Getting Started Guide (this document) -
Page 6: Leds
1.2 LEDs After the power is turned on, the power LED will cycle through from amber, to off (for system initialization), to amber again (for system boot up), to finally green (power is up and system is ready). After the system boots up, use the following LEDs to monitor the status of your switch: Port Color... -
Page 7: Front Panel Description

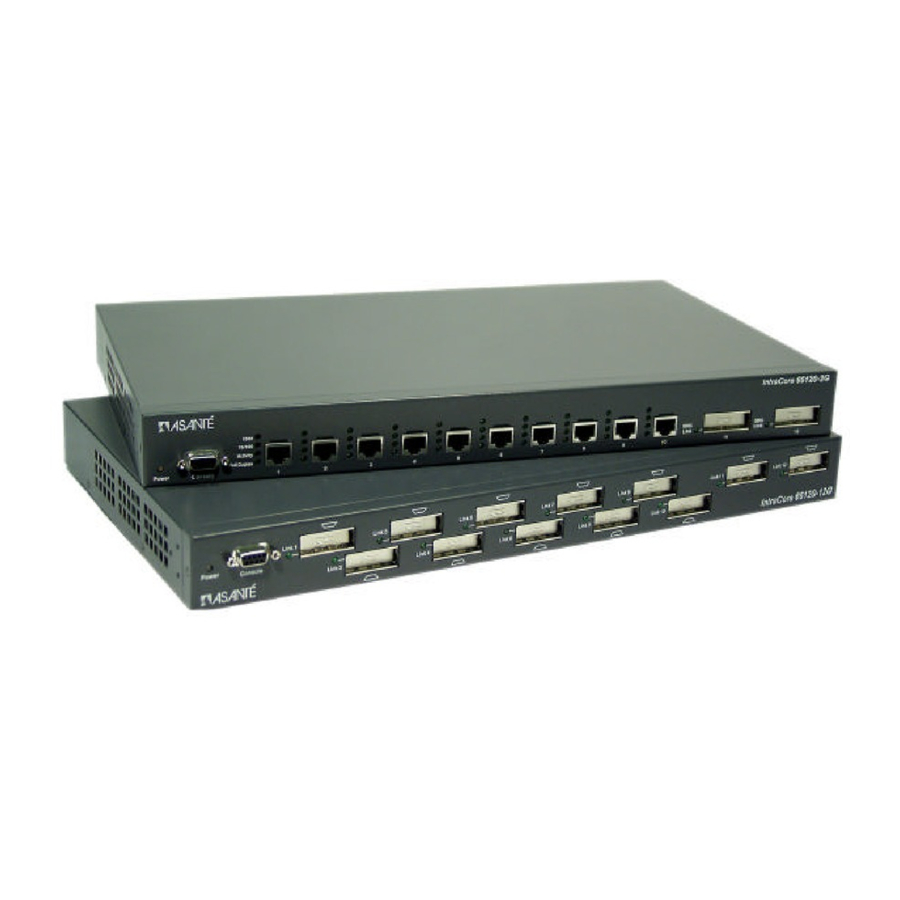

1.3 Front Panel Description The 65120-2G (Figure 1-1) has ten 10/100/1000 copper ports, 2 GBIC ports and a console port. Figure 1-1 65120-2G The 65120-12G (Figure 1-2) has 12 GBIC ports and one console port. Figure 1-2 65120-12G Note: The GBICs are installed normally in the top row; they are in- stalled upside-down in the bottom row. - Page 8 Getting Started Guide...
-
Page 9: Installation And Setup
2 Installation and Setup This chapter explains how to install and connect the IntraCore 65120 to your network. To configure the switch for manage- ment, refer to the user’s manual on the IC 65120 CD-ROM. The following guidelines will help you prepare to install the switch in such a way that it has the proper power supply and environment. -
Page 10: Recommended Installation Tools
Do not tamper with the equipment Examine your work area for potential hazards (I.e. wet floors, ungrounded cables, etc.) For more safety information, please refer to the User’s Manual. 2.2 Recommended Installation Tools You will need the following tools and equipment (not included) to install the IntraCore 65120 switch: Number 1, number 2 and 3/16-inch flat- blade screwdrivers... -
Page 11: Cooling And Airflow
Avoid direct sunlight, heat sources, or areas with high levels of electromagnetic interference. 2.5 Cooling and Airflow The IntraCore 65120 uses internal fans for air cooling. Do not restrict air flow by cover- ing or obstructing air vents on the sides of the switch. - Page 12 To mount the IntraCore 65120 in an equipment rack: Place the IntraCore 65120 on a flat, stable surface. Locate a rack-mounting bracket (supplied) and place it over the mounting holes on one side of the unit. Use the screws (supplied) to secure the bracket (with a Phil- lips screwdriver).
-
Page 13: Installing Gbic Interfaces
Place the unit on a flat surface with a minimum area of 434.3 mm x 342.9 mm (17.1” x 13.5”) and support capacity of 10 kg (22 lbs ). Make sure there is enough ventilation space between the Intra- Core 65120 and surrounding walls or objects. 2.8 Installing GBIC Interfaces Instructions for installing, removing, and maintaining GBIC inter- faces are provided in this section. -
Page 14: Connecting Power
Slide the GBIC out of the slot. Install the plugs in the GBIC optical bores, and place the GBIC in protective packaging. 2.8.3 GBIC Care and Handling Follow these GBIC maintenance guidelines: Unnecessary removal and insertion of a GBIC can lead to its premature failure. -
Page 15: Connecting To The Network
2.10 Connecting to the Network The IntraCore 65120 unit may be connected to an Ethernet network with the unit powered on or off. Use the following procedure to make your network connections: Connect network devices to the IntraCore 65120, following the cable guidelines outlined below. - Page 16 Although 10BaseT requires only pins 1, 2, 3 and 6, Asanté strongly recommends cables with all 8 wires connected as follows: 1000BaseTX requires that all four pairs (8 wires) be connected cor- rectly. Table 2-1 shows the correct pairing of all eight wires. Pin Number Pair Number &...
- Page 17 The console port is used to connect with a terminal using a DB-9 female connector. The setting is 9600-N81. See Table 2-2 for a list of pinouts. Pin Number Signal Name Carrier Detect Receive Data Transmit Data Data Terminal Ready Signal Ground Data Set Ready Request to Send...
- Page 18 Getting Started Guide...
-
Page 19: Appendix A Troubleshooting And Online Registration
If your switch is still not operating properly, contact Asanté Tech- nologies, Inc. Technical Support (801-566-8991). Before you con- tact Technical Support, however, please register your switch online at www.asante.com/support/registration.html. Asanté IntraCore 65120... - Page 20 Getting Started Guide...
-
Page 21: Appendix B Safety And Regulatory Compliance
Appendix B Safety and Regulatory Compliance FCC Compliance Statement NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. - Page 22 Getting Started Guide...
-
Page 23: Appendix C: Specifications And Defaults
VLAN: 64 port-based VLANs, with IEEE 802.1Q tagging Spanning Tree Protocol: 802.1D, enabled Priority: 802.1p, 8 levels mapped to 2 queues RMON: 4 Groups SNMP: MIB-II, Bridge MIB, RMON MIB Console Baud Rate: 9600 Password: Asante (default) IP Address: 192.168.0.1 Asanté IntraCore 65120... - Page 24 UPPORT 801-566-8991 Worldwide 801-566-3787 FAX www.asante.com support@asante.com Copyright © 2001 Asanté Technologies, Inc. Asanté is a registered trademark of Asanté Technologies, Inc. The Asanté logo and IntraCore are trademarks of Asanté Technologies, Inc. All other names or marks are trade- marks or registered trademarks of their respective owners.
