2006, Shure Incorporated
©
27G3121 (Rev. 9)

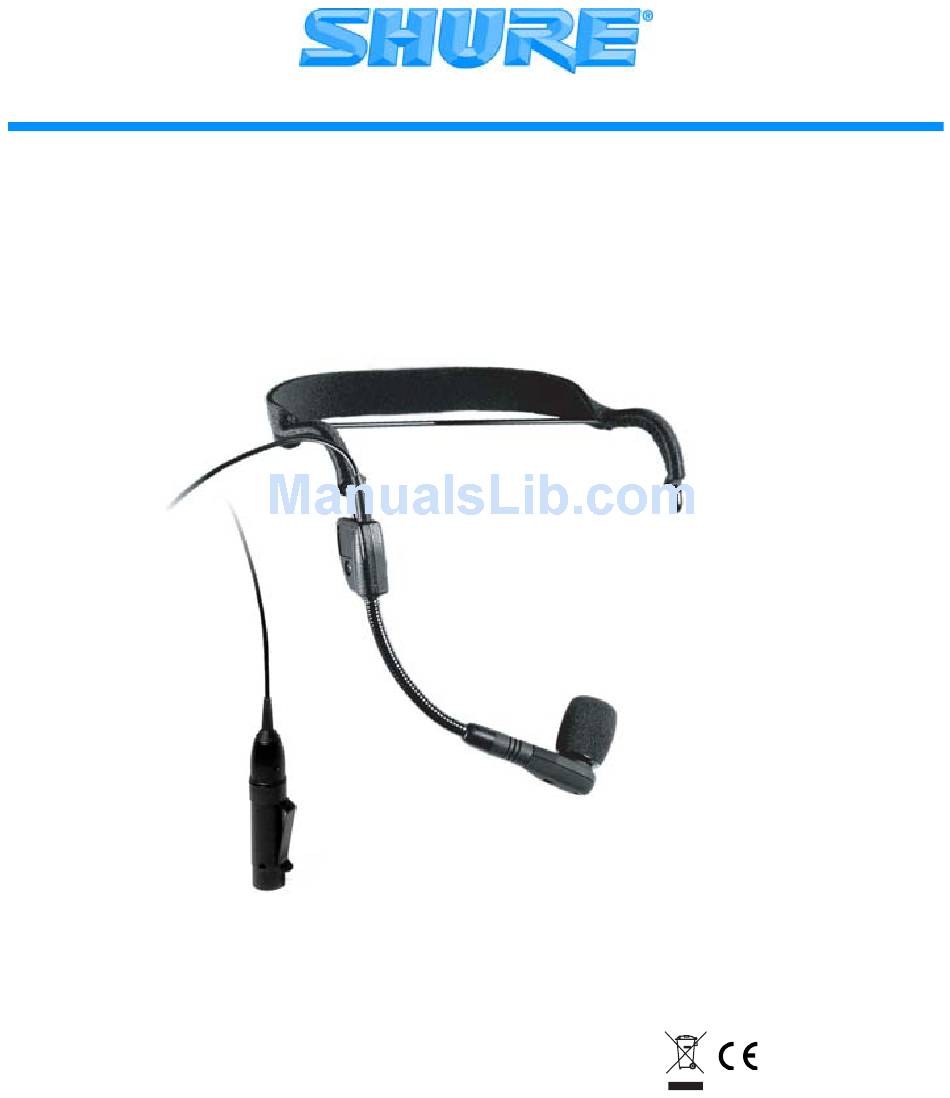

Models WH30TQG and WH30XLR User Guide
MODEL WH30 CONDENSER HEADSET MICROPHONE
WH30XLR
ONLY
MICROPHONE DE CASQUE
ÉLECTROSTATIQUE
SHURE MODÈLE
KONDENSATOR
KOPFMIKROFON-
MODELL SHURE WH30
MICROFONO DE
CONDENSADOR DE
CABEZA MODELO
WH30 SHURE
MICROFONO A
CONDENSATORE
CON SUPPORTO A
CUFFIA SHURE
MODELLO WH30
Printed in U.S.A.
WH30
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Shure WH30TQG
Summary of Contents for Shure WH30TQG
- Page 1 Models WH30TQG and WH30XLR User Guide MODEL WH30 CONDENSER HEADSET MICROPHONE MICROPHONE DE CASQUE ÉLECTROSTATIQUE SHURE MODÈLE WH30 KONDENSATOR KOPFMIKROFON- MODELL SHURE WH30 MICROFONO DE CONDENSADOR DE CABEZA MODELO WH30 SHURE MICROFONO A CONDENSATORE CON SUPPORTO A CUFFIA SHURE WH30XLR...
-
Page 2: Model Variations
MODEL VARIATIONS • WH30TQG: For wireless use, the WH30TQG has a 1.2m (4 ft.) high-flex cable and a mini TA4F connector for direct connection to Shure body pack transmitters. Note: For information about use with Shure W10BT or other transmitters without a mini TA4F connector, contact Shure Customer Service). - Page 3 MICROPHONE PARTS The WH30 consists of the following parts (see Figure 1). WH30 HEADSET MICROPHONE PARTS FIGURE 1 COLLAPSIBLE MICROPHONE BOOM The WH30 headset features a collapsible boom for shipment and storage. Before wearing the headset, unfold the boom by rotating it away from the wireframe until it snaps into place.
-
Page 4: Wearing The Headset
You may position the elastic headband either above or below the wireframe for the great- est comfort and stability. The blue “SHURE” logo should face outward (see Figure 2). WEARING THE HEADSET... -
Page 5: Adjusting The Headset
ADJUSTING THE HEADSET • If the headset feels loose or uncomfortable, carefully bend the sides of the wire- frame to make it tighter or looser (see Figure 4A). The angle of the wireframe ear- pieces may also need adjustment (see Figure 4B). ADJUSTING THE WIREFRAME FIGURE 4 •... - Page 6 Connect the output of the RPM420 preamplifier to an input channel of a mixing or record- ing console. Most consoles will provide phantom power to the RMP420 preamplifier. If phantom power is unavailable, use a separate phantom power supply such as the Shure PS1A.
-
Page 7: Replacement Parts
EN 55103 (1996) parts 1 and 2, for residential (E1) and light industrial (E2) environments. WH30TQG: Conforms to European EMC Directive 89/33/EEC, and is eligible to bear the CE marking. Meets EMC require-ments as an ancillary device per EN 300 445... - Page 8 SPECIFICATIONS WH30TQG WH30XLR Type Condenser, electret bias Condenser, electret bias with integrated preamplifier Frequency Response 40 to 20,000 Hz (See Figure 6) Polar Pattern Unidirectional (cardioid) (see Figure 7) 2400 Ω Rated 150 Ω (actual) (Tolerates Output Impedance (at 1kHz) loads as low as 150 Ω...
- Page 9 1 cm. (0.4 in.) 61 cm. (24 in.) TYPICAL WH30 FREQUENCY RESPONSE FIGURE 6 TYPICAL WH30 POLAR PATTERNS FIGURE 7...
-
Page 10: Wiring Diagrams
WIRING DIAGRAMS WH30 WIRING DIAGRAMS FIGURE 8... - Page 12 TRADE MARK NOTICES: The stylized Shure logo and the Word “Shure” are registered trademark of Shure Incorporated in the United States. “Teflon” is a registered trademark of E.I. duPont de Nemours and Company in the United States. SHURE Incorporated http://www.shure.com United States, Canada, Latin America, Caribbean: 5800 W.
