Summary of Contents for Shure FP Wireless

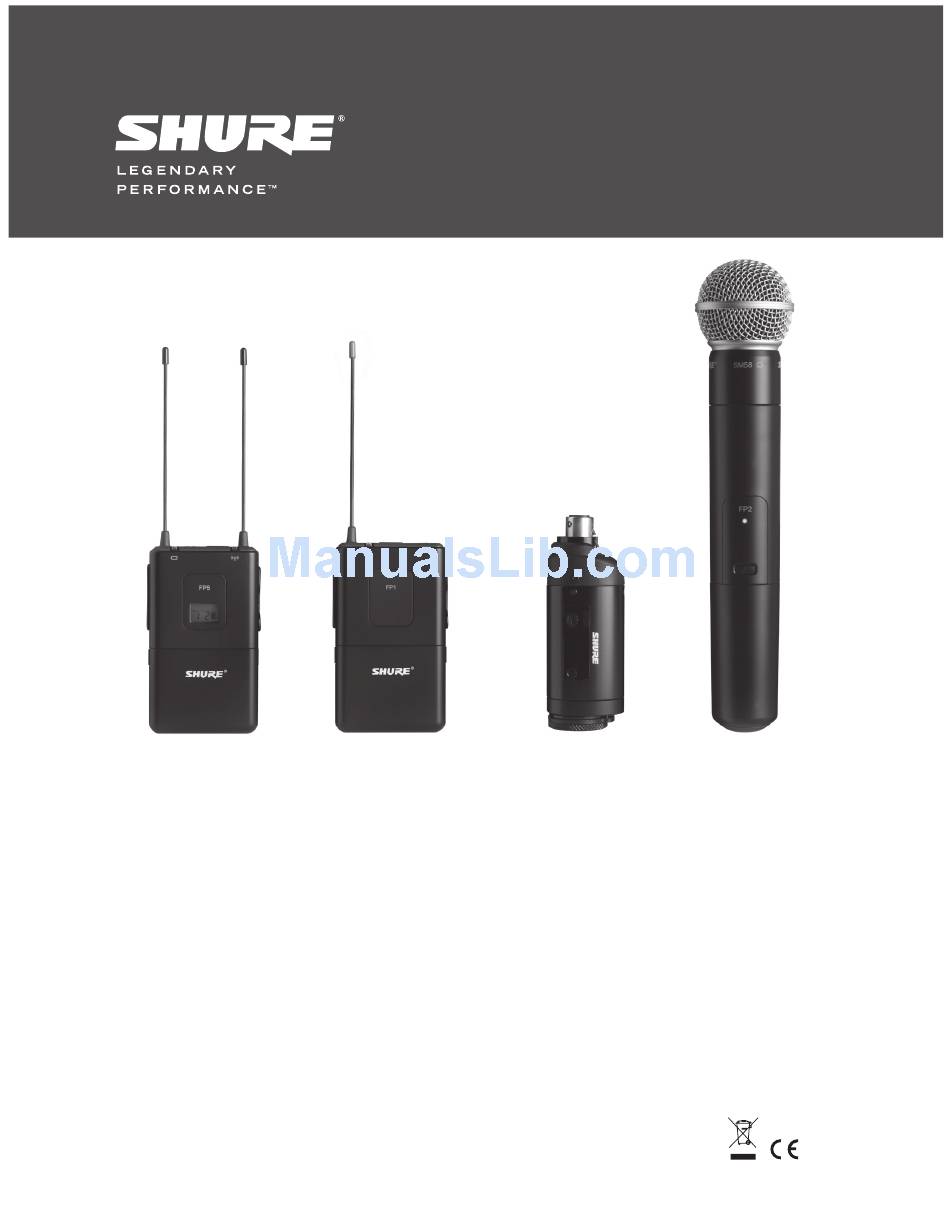

- Page 1 FP Wireless System Shure FP Wireless Système sans fil FP FP-Drahtlossystem Radiosistema FP Draadloos systeem FP Sistema inalámbrico FP Sistema Sem Fio FP Система FP Wireless ©2012 Shure Incorporated 27B16755 (Rev. 1) Printed In U.S.A...
-
Page 3: Furnished Accessories
FP Wireless System Featuring a comprehensive selection of system configurations with key wireless audio technologies and components, FP Wireless provides the ability to cap- ture crystal-clear audio with confidence. With simple and flexible components, including a portable receiver and XLR plug-on transmitter, it has never been easier for audio to be captured in the demanding and dynamic videography and electronic field production (EFP) environments. - Page 4 Quickstart Install Batteries FP1 - FP5 Power up the FP5 Receiver Group scan for open frequencies Power up the transmitter Sync transmitter and receiver...
-
Page 5: Lcd Screen
④ Infrared (IR) port startup on until batteries are changed) Sends infrared beam to synchronize frequencies. Transmitter and receive incompatible; contact Rapid flashing your Shure reseller red after ⑤ TA3M Jack synchronization Use with TA3F cable for audio out. ② Power Button ⑥... -
Page 6: Adjusting Gain
Adjusting Gain The handheld transmitter normally FP1 and FP3 does not require adjustment and Perform a sound check. Use the should be left at 0dB for most ap- audio gain control located on the plications. Only use the –10dB set- side (FP1) or front (FP3) of the ting for loud singing or other high unit to adjust the gain up (+) or... -
Page 7: Troubleshooting
If indicator continues flashing red after batteries are replaced, the transmitter and receiver may belong to incompatible frequency bands. Contact your Shure reseller for assistance. Transmitter power LED off Turn on transmitter Make sure the +/- indicators on batteries match the transmitter terminals... -
Page 8: Specifications
Specifications Dimensions 108 mm X 64 mm X 19 mm (H x W x D) Working Range 100 m (300 ft) Line of Sight Weight 81 g (3 oz.) Note: Actual range depends on RF signal ab- sorption, reflection and interference. Housing Molded polycarbonate case Tonekey... - Page 9 Consult your national authority for possible requirements. europe/compliance Changes or modifications not expressly approved by Shure Incorporated could void your authority to operate the equipment. Licensing of Shure Authorized European representative: wireless microphone equipment is the user’s responsibility, and licens- Shure Europe GmbH ability depends on the user’s classification and application, and on the...
- Page 11 Frequency Ranges H5: 518.000–542.000 MHz GROUP 1 GROUP 2 GROUP 3 GROUP 4 GROUP 5 GROUP 6 518.400 519.250 518.200 519.775 519.100 518.425 521.500 520.500 519.675 522.500 521.225 520.400 523.575 522.225 520.800 524.200 522.550 523.425 525.050 524.725 522.450 525.600 524.575 525.475 527.425 526.350...
- Page 12 P4: 702.000–726.000 MHz Group 1 Group 2 Group 3 Group 4 Group 5 Group 6 Group 7 Group 8 702.200 703.750 703.650 702.750 703.750 702.100 704.775 702.300 704.200 705.975 705.650 704.500 705.750 704.025 706.225 704.975 707.200 707.200 708.650 705.750 708.250 705.500 710.500 706.775...
- Page 13 S6: 838.000–865.000 MHz Group 1 Group 2 Group 3 Group 4 Group 5 Group 6 Group 7 Group 8 838.200 838.150 838.550 854.200 855.475 855.075 854.750 854.750 841.450 839.375 839.775 855.300 857.425 857.775 855.850 855.850 843.275 841.300 841.700 856.700 860.600 860.725 857.250 857.250...
- Page 14 Q4: 740.000–752.000 MHz Group 1 Group 2 Group 3 Group 4 740.125 740.125 740.125 740.125 741.500 741.950 741.225 740.800 743.375 743.500 742.925 741.825 744.600 745.675 744.325 743.075 746.325 747.400 745.425 745.125 748.500 748.625 746.875 746.575 750.050 750.500 748.925 747.675 751.875 751.875 750.175 749.075...
- Page 16 United States, Canada, Latin Europe, Middle East, Africa: Asia, Pacific: America, Caribbean: Shure Asia Limited Shure Europe GmbH Shure Incorporated 22/F, 625 King’s Road Jakob-Dieffenbacher-Str. 12, 5800 West Touhy Avenue North Point, Island East 75031 Eppingen, Germany Niles, IL 60714-4608 USA...
