Apogee Rosetta 800 Connection Manual

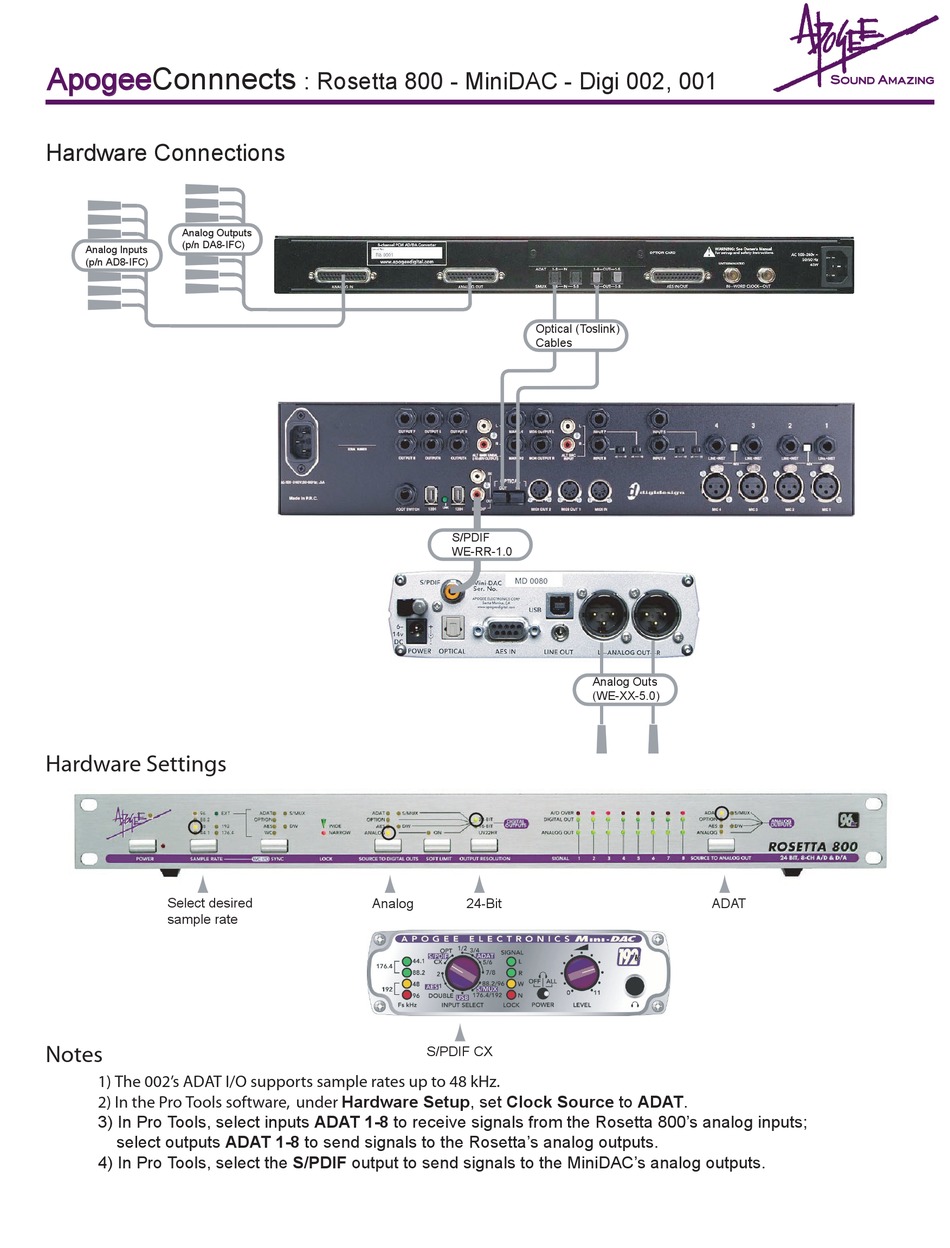

ApogeeConnnects Apogee

Hardware Connections

Analog Outputs

(p/n DA8-IFC)

Analog Inputs

(p/n AD8-IFC)

Hardware Settings

Select desired
sample rate

Notes

1) The 002's ADAT I/O supports sample rates up to 48 kHz.
2) In the Pro Tools software, under Hardware Setup, set Clock Source to ADAT.
3) In Pro Tools, select inputs ADAT 1-8 to receive signals from the Rosetta 800's analog inputs;
select outputs ADAT 1-8 to send signals to the Rosetta's analog outputs.
4) In Pro Tools, select the S/PDIF output to send signals to the MiniDAC's analog outputs.
: Rosetta 800 - MiniDAC - Digi 002, 001
S/PDIF
WE-RR-1.0
Analog 24-Bit
S/PDIF CX
Optical (Toslink)
Cables
Analog Outs
(WE-XX-5.0)
ADAT
