MODEL 5200 MIDI/RS-422 to LAN INTERFACE
Remote Control Accessory for Aphex 1788A & 188 Remote Preamps
USE ONLY THE +5VDC POWER SUPPLY PROVIDED WITH THE 5200
PROTECT FROM MOISTURE
NO USER SERVICEABLE PARTS INSIDE

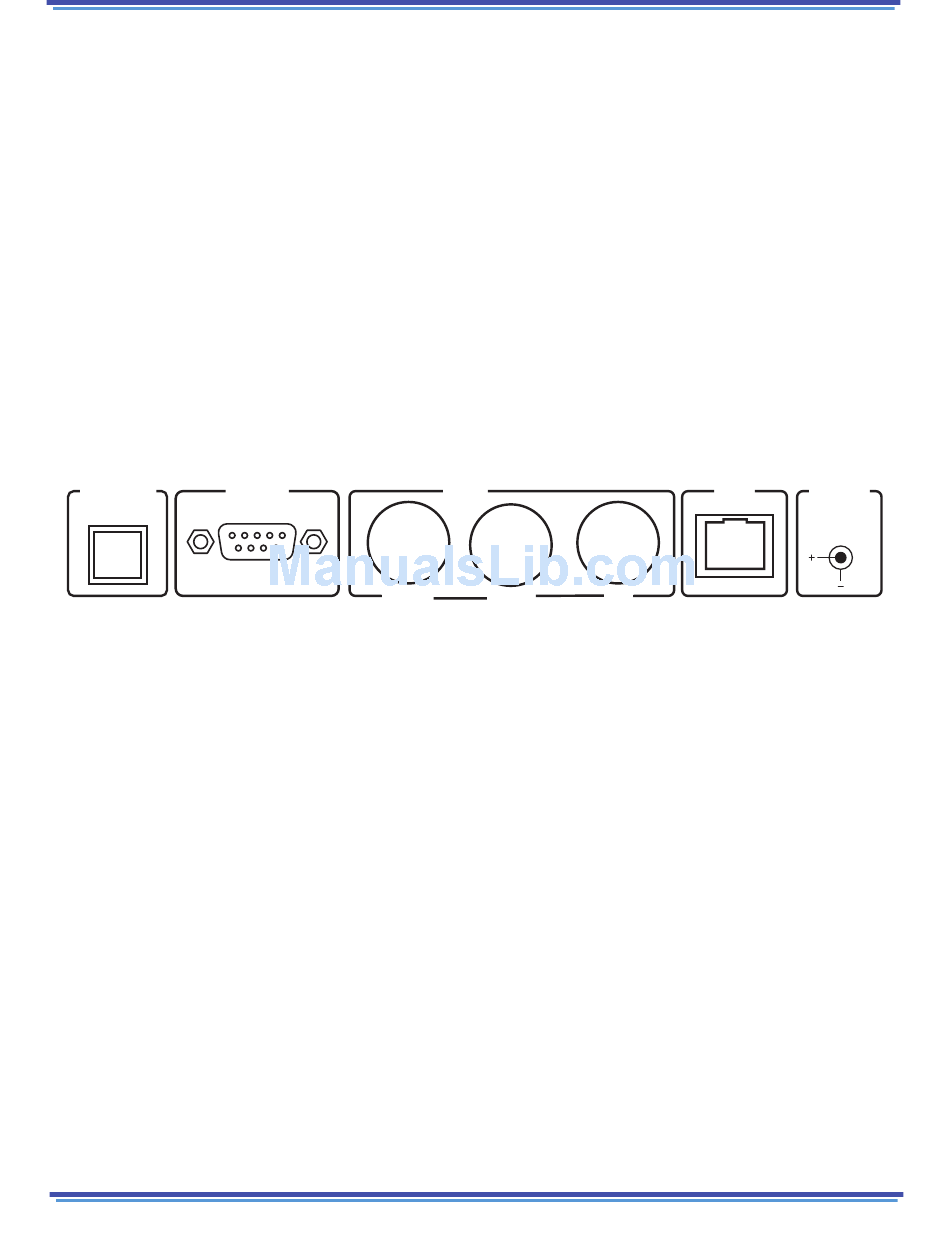

REMOTE RS-422
WAKEUP
Press this This is a balanced
button to serial input only! It
wake up will work with any
the 1788A Yamaha console
or 188's in that has an RS-422
your sys- Serial port, such as
tem. After the DM 2000.
you have
pressed
this button,
your MIDI
controller
or DAW
with MIDI
will be able
to control
the pre-
amps.
MIDI
THRU OUT
MIDI I/O for DAW's with
MIDI or any other MIDI
controller.
LAN
IN
Ethernet port. You
will need to connect
this to a ROUTER!
The 5200 is a DHCP
device and requires
a router for IP ad-
dressing.
+5VDC
REGULATED
SUPPLY ONLY
2.5mm x 5.5mm
