The MkIII Difference
The MkIII
The 2020 MkIII comprises significant new circuits and processing methods and numerous improvements to existing circuitry. Some new
controls were added and some old controls were deleted. In addition, the remote control program has been updated to reflect all of these
changes. You will find it easier than ever to get the sound that you want with a wider range of possibilities at hand.
The Technical Advances
• New Dual Band Optical Pre-Emphasis Limiter
• New "Ultra Clean" Non-Overshooting Lowpass Filters
• Dual Output Stereo Generator with RDS Interface
• Improved Baseband Spectral Purity
• Dual Mono & Stereo Capability
• Improved Remote Control
• Improved Leveler
• Improved Multiband Compression Algorithm
• Improved Interactive Split Band Limiter
• European ITU BS 412-9 Modulation Compliance
• Ultra Stable OCXO (Oven Controlled Crystal Oscillator) Option for Pilot Frequency Control
The Benefits
• Greater Clarity - More Sonic Detail
• More Flattering Voice Quality with no Distortion
• Greater Loudness Whenever Needed
• Fewer Undesirable Processing Artifacts
• Already Acclaimed Leveling Even More Effective and Transparent
• Economical - Handles Two Independent Mono Program Chains
• Ready for European broadcast standards
• Feeds Two Transmitters Simultaneously with Separate Level Controls
• RDS Injection Port Accepts Any Subcarrier Input
• Ready for use with *TFT "Reciter" Boosters (Using the OCXO Option)
* "Reciter" is a trademark of TFT, Inc., San Jose, CA.

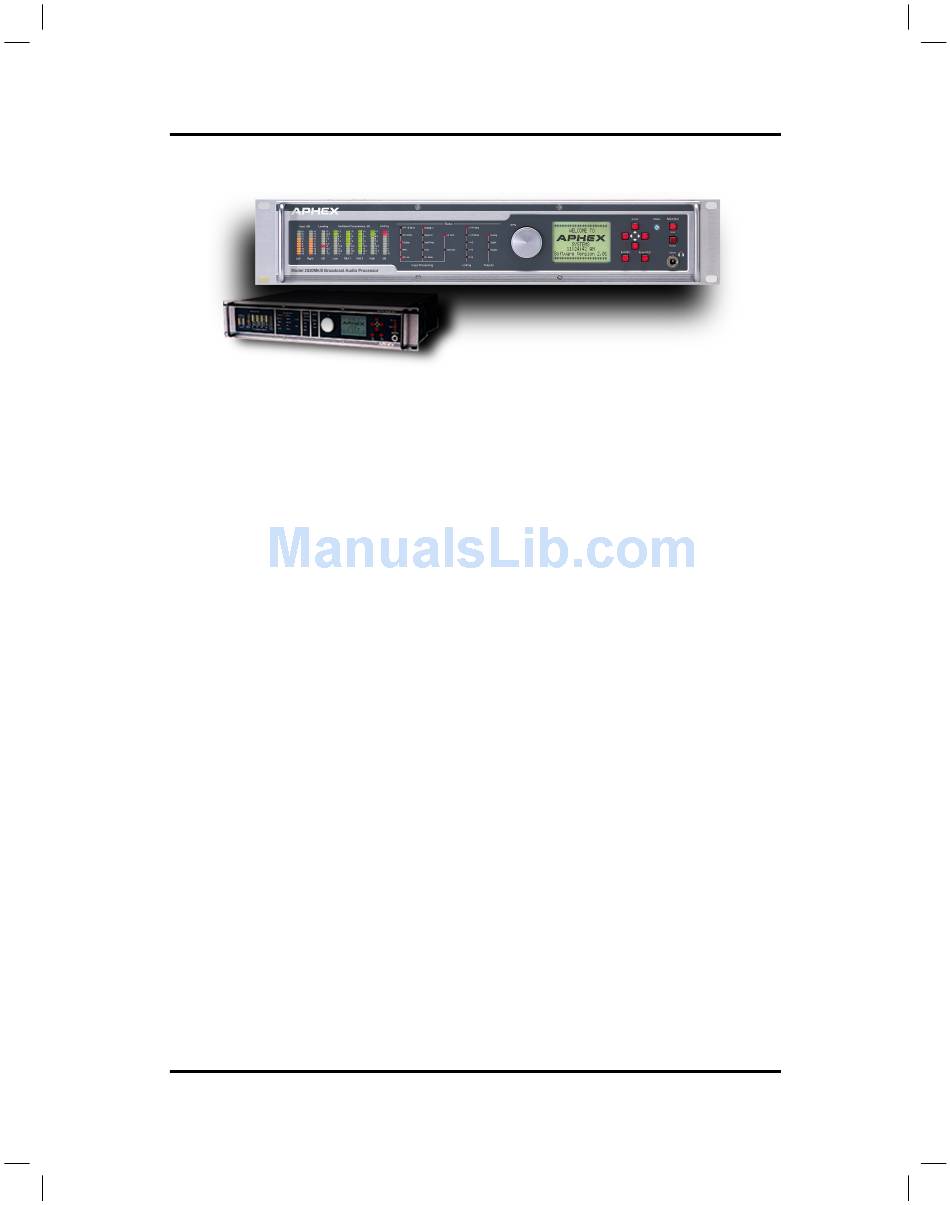

Supplement to Model 2020 Fm Pro Manual
Original 2020
Page 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the 2020 MkIII and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Aphex 2020 MkIII

  • Page 1 Original 2020 The 2020 MkIII comprises significant new circuits and processing methods and numerous improvements to existing circuitry. Some new controls were added and some old controls were deleted. In addition, the remote control program has been updated to reflect all of these changes.
  • Page 2: Features And Options

    Selectable Output Sample Rate: 32K, 44.1K, 48K 2. Monitor Output Signal & Volume c. Auto “Lock On” for Input Rates of 32K, 44.1K or 48K d. Input and Output Sample Rates Independent or Locked Page 2 Model 2020 MkIII Audio Processor...
  • Page 3 The original 2020 was designed for stereo operation tion. only. The 2020 MkIII can be set for either dual mono or stereo operation. The purpose of this addition Regardless of the Stereo or Dual-Mono mode, both...
  • Page 4 98, or 2000. We have not tested it on Windows that eliminates almost all of the distortion associated NT 4.x. with previous overshoot compensated filters. This new filter protects the pilot frequency by as much as Page 4 Model 2020 MkIII Audio Processor...
  • Page 5 MkIII Front Panel Supplement to Model 2020 Fm Pro Manual Page 5...
  • Page 6 Updated Block Diagram Updated MkIII Block Diagram Superimpose this over Figure 5-2 of the original 2020 manual. Page 6 Model 2020 MkIII Audio Processor...
