M
X
4
S
G
-
N
/
M
X
4
M
X
4
S
G
-
N
/
M
X
4
C
o
l
o
r
C
o
d
e
d
B
a
C
o
l
o
r
C
o
d
e
d
B
a

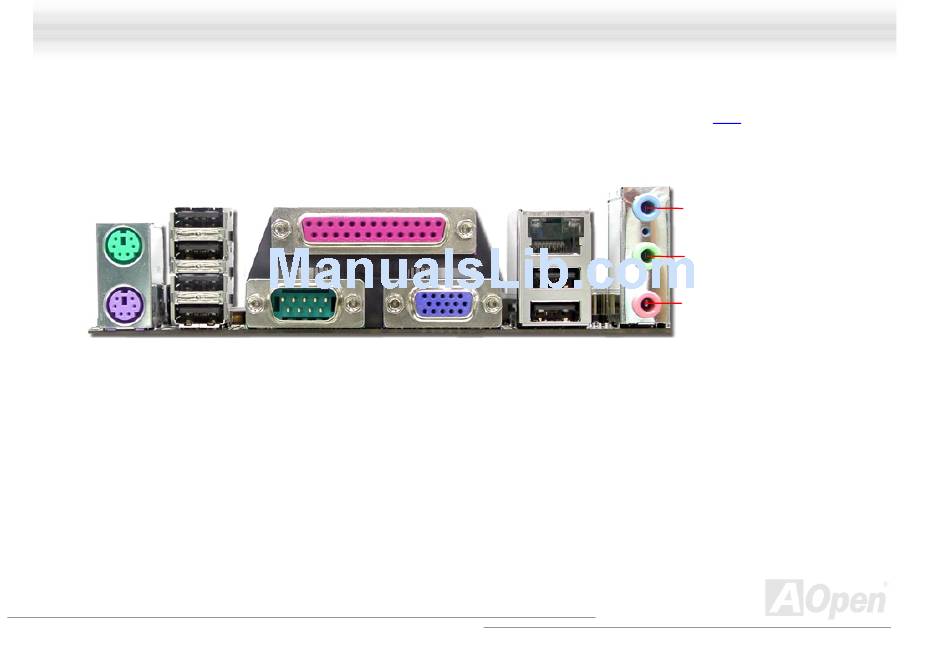

The onboard I/O devices are PS/2 Keyboard, PS/2 Mouse, RJ-45 LAN Connector, COM1, VGA port, Printer, USB, AC97 sound and game
ports. The view angle of drawing shown here is from the back panel of the housing.
USB2.0
PS/2 Mouse
Ports
Connector
PS/2 Keyboard
Connector
PS/2 Keyboard:
For standard keyboard, which is using a PS/2 plug.
PS/2 Mouse:
For PC-Mouse, which is using a PS/2 plug.
USB Port:
Available for connecting USB devices.
Parallel Port:
To connect with SPP/ECP/EPP printer.
COM1 Port:
To connect with pointing devices, modem or others serial devices.
RJ-45 LAN connector
To connect Ethernet for home or office use.
VGA Connector:
To connect with PC monitor.
Speaker Out:
To External Speaker, Earphone or Amplifier.
Line-In:
Comes from the signal sources, such as CD/Tape player.
MIC-In:
From Microphone.
MIDI/Game Port:
For 15-pin PC joystick, game pad or MIDI devices.
S
G
-
L
S
G
-
L
c
k
P
a
n
e
l
c
k
P
a
n
e
l
SPP/EPP/ECP
Parallel Port
COM 1 Port
RJ-45 LAN
Connector
USB2.0 Ports
VGA Port
43
O
n
l
i
n
e
M
a
n
u
a
l
O
n
l
i
n
e
M
a
n
u
a
l
Line-In
Speaker Out
MIC-In
