Allied Telesis AT-RKMT2 Installation Manual

This manual will assist you in installation of your Rack Mount 2. When opening this Allied Telesyn product,
make sure the package you have received is complete and in good condition. This package should include:
• 2 handles (A)
• bracket (B)
• short-chassis adapter (D)
The Rack Mount 2 will assist you in installing the following units in a standard 19 inch rack.
• AT-3004
• AT-3008
• AT-3022
• AT-3023
• AT-3024
• AT-3025
Installing your Allied Telesyn Rack Mount 2 is simple and quick (only requiring a Phillips screwdriver), as
seen in Figure 1 below:
1. Attach handles A to bracket B with flathead screws C.
2. (Optional) Attach adapter D to bracket B with flathead screws E.
3. Attach the assembled rack-mount unit to device (see list above).
4. Attach the single unit in a standard 19 inch rack.
PN 613-10563-00 Rev. A
C
A
B
AT-RKMT2 Installation Manual
• 3 flathead screws (C) (M3-6 flathead Phillips)
• 4 flathead screws (E) (M4-6 flathead Phillips)
• AT-3026
• AT-3027
• AT-3028
• AT-6870
• AT-6875
E
E

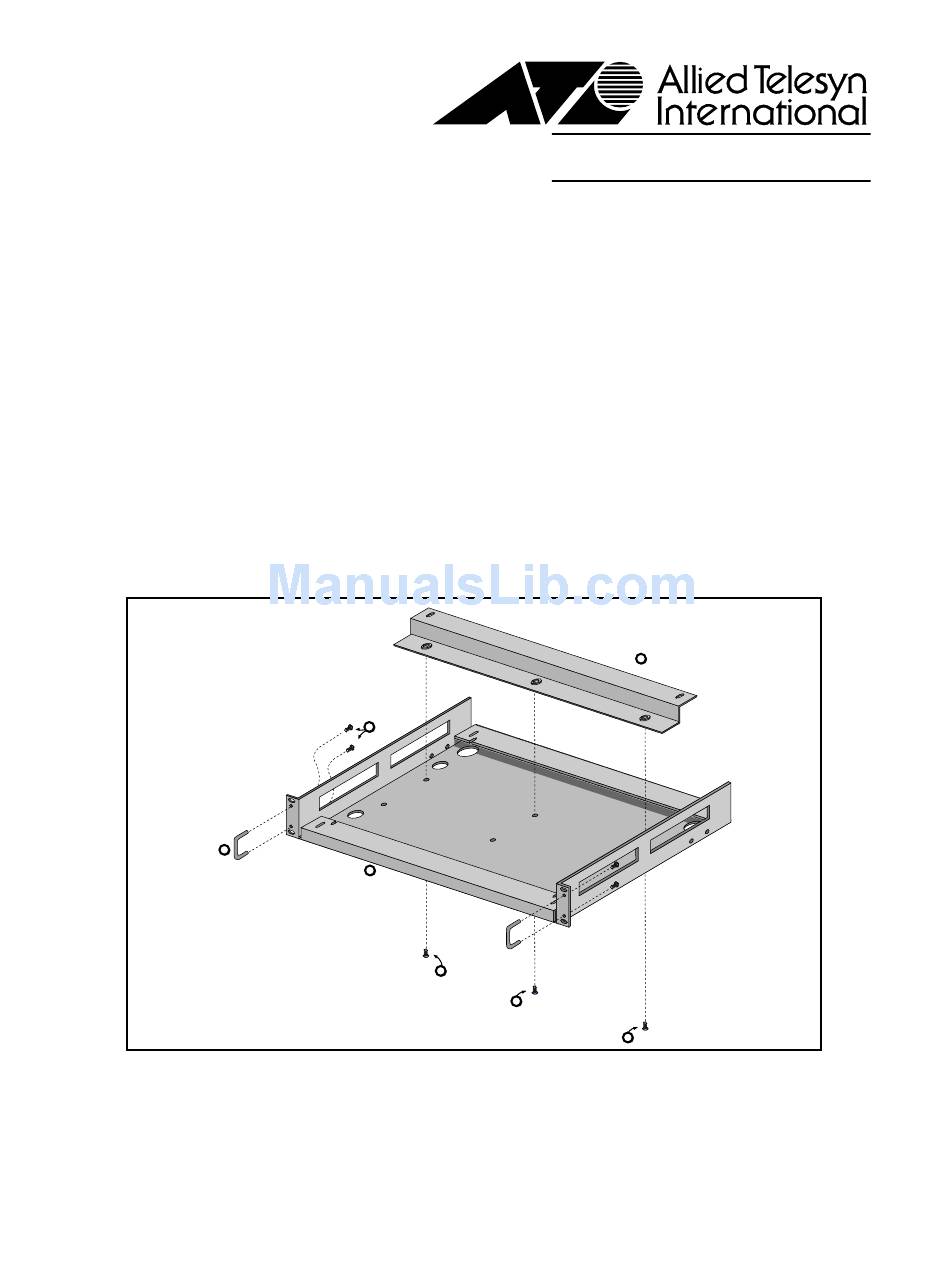

Figure 1: Installation
D
E
