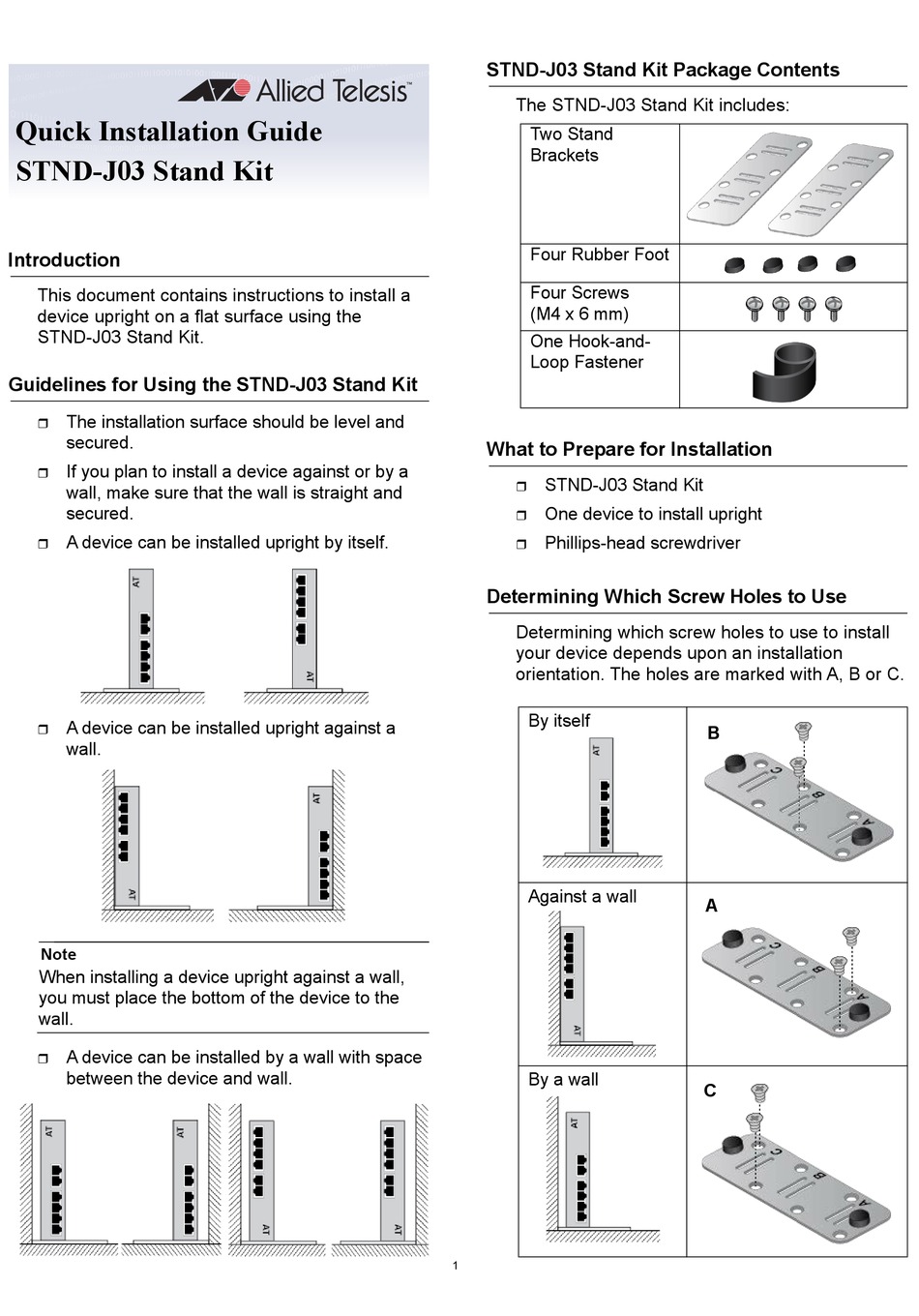

Allied Telesis STND-J03 Quick Installation Manual

Quick Installation Guide
STND-J03 Stand Kit

Introduction

This document contains instructions to install a
device upright on a flat surface using the
STND-J03 Stand Kit.

Guidelines for Using the STND-J03 Stand Kit

The installation surface should be level and

secured.
If you plan to install a device against or by a

wall, make sure that the wall is straight and
secured.
A device can be installed upright by itself.

A device can be installed upright against a

wall.
Note
When installing a device upright against a wall,
you must place the bottom of the device to the
wall.
A device can be installed by a wall with space

between the device and wall.

STND-J03 Stand Kit Package Contents

The STND-J03 Stand Kit includes:
Two Stand
Brackets
Four Rubber Foot
Four Screws
(M4 x 6 mm)
One Hook-and-
Loop Fastener

What to Prepare for Installation

STND-J03 Stand Kit

One device to install upright

Phillips-head screwdriver


Determining Which Screw Holes to Use

Determining which screw holes to use to install
your device depends upon an installation
orientation. The holes are marked with A, B or C.
By itself
Against a wall
By a wall
1
B
A
C
