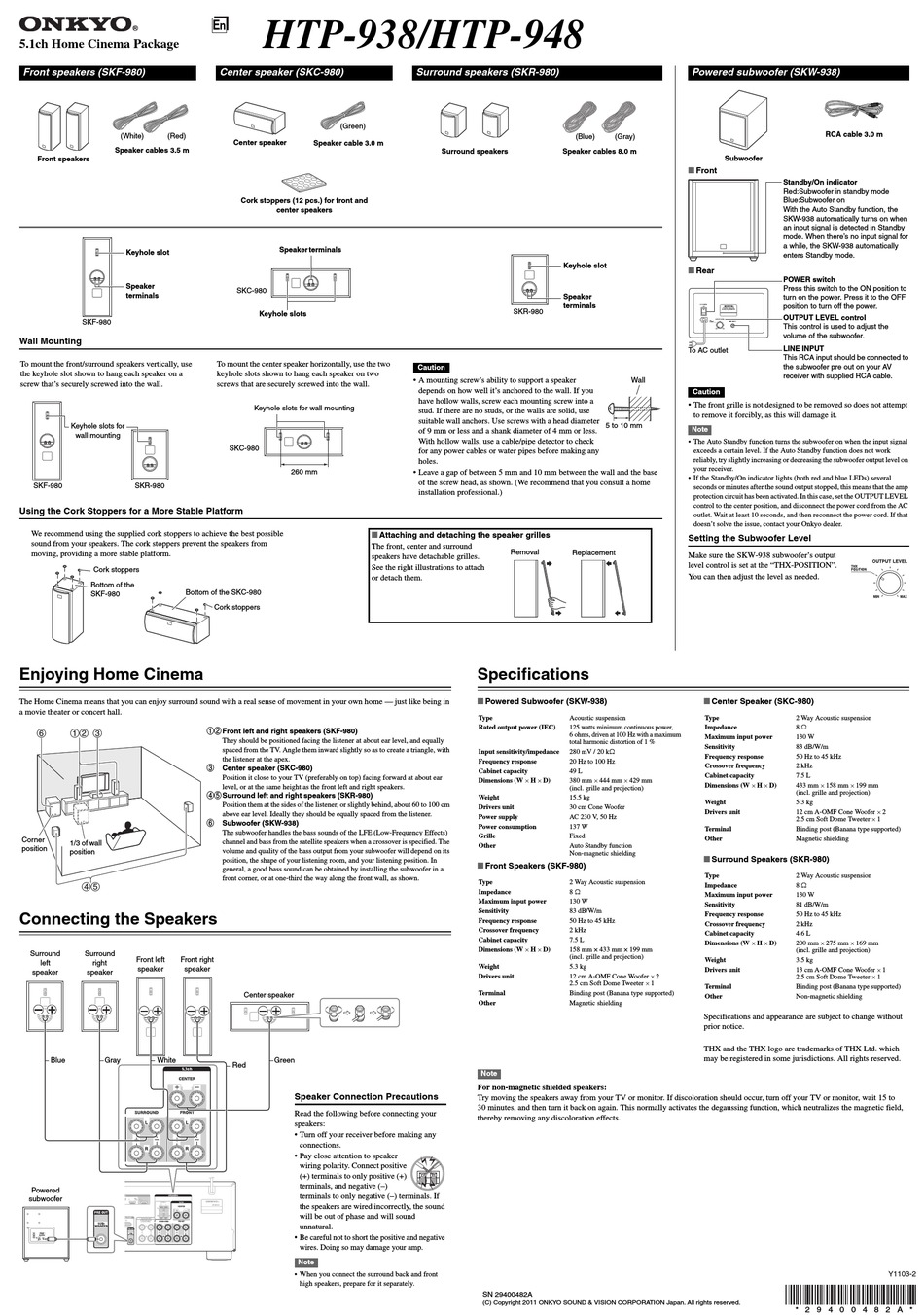

Onkyo HTP-938 Instruction Manual

5.1ch Home Cinema Package
Front speakers (SKF-980)
(White) (Red)
Speaker cables 3.5 m
Front speakers
Keyhole slot
Speaker
terminals
SKF-980
Wall Mounting
To mount the front/surround speakers vertically, use
the keyhole slot shown to hang each speaker on a
screw that's securely screwed into the wall.
Keyhole slots for
wall mounting
SKF-980 SKR-980
Using the Cork Stoppers for a More Stable Platform
We recommend using the supplied cork stoppers to achieve the best possible
sound from your speakers. The cork stoppers prevent the speakers from
moving, providing a more stable platform.
Cork stoppers
Bottom of the
Bottom of the SKC-980
SKF-980
Enjoying Home Cinema
The Home Cinema means that you can enjoy surround sound with a real sense of movement in your own home — just like being in
a movie theater or concert hall.
Corner
1/3 of wall
position
position

Connecting the Speakers

Surround Surround
Front left Front right
left right
speaker speaker
speaker speaker
Blue Gray White
Powered
subwoofer
E HTP-938/HTP-948
n
Center speaker (SKC-980)
(Green)
Center speaker Speaker cable 3.0 m
Cork stoppers (12 pcs.) for front and
center speakers
Speaker terminals
SKC-980
Keyhole slots
To mount the center speaker horizontally, use the two
keyhole slots shown to hang each speaker on two
screws that are securely screwed into the wall.
Keyhole slots for wall mounting
SKC-980
260 mm
■
Attaching and detaching the speaker grilles
The front, center and surround
speakers have detachable grilles.
See the right illustrations to attach
or detach them.
Cork stoppers
Front left and right speakers (SKF-980)
They should be positioned facing the listener at about ear level, and equally
spaced from the TV. Angle them inward slightly so as to create a triangle, with
the listener at the apex.
Center speaker (SKC-980)
Position it close to your TV (preferably on top) facing forward at about ear
level, or at the same height as the front left and right speakers.
Surround left and right speakers (SKR-980)
Position them at the sides of the listener, or slightly behind, about 60 to 100 cm
above ear level. Ideally they should be equally spaced from the listener.
Subwoofer (SKW-938)
The subwoofer handles the bass sounds of the LFE (Low-Frequency Effects)
channel and bass from the satellite speakers when a crossover is specified. The
volume and quality of the bass output from your subwoofer will depend on its
position, the shape of your listening room, and your listening position. In
general, a good bass sound can be obtained by installing the subwoofer in a
front corner, or at one-third the way along the front wall, as shown.
Center speaker
Green
Red
Speaker Connection Precautions
Read the following before connecting your
speakers:
• Turn off your receiver before making any
connections.
• Pay close attention to speaker
wiring polarity. Connect positive
(+) terminals to only positive (+)
terminals, and negative (–)
terminals to only negative (–) terminals. If
the speakers are wired incorrectly, the sound
will be out of phase and will sound
unnatural.
• Be careful not to short the positive and negative
wires. Doing so may damage your amp.
Note
• When you connect the surround back and front
high speakers, prepare for it separately.
Surround speakers (SKR-980)
(Blue)
Surround speakers Speaker cables 8.0 m
Keyhole slot
Speaker
terminals
SKR-980
Caution
• A mounting screw's ability to support a speaker
depends on how well it's anchored to the wall. If you
have hollow walls, screw each mounting screw into a
stud. If there are no studs, or the walls are solid, use
suitable wall anchors. Use screws with a head diameter
of 9 mm or less and a shank diameter of 4 mm or less.
With hollow walls, use a cable/pipe detector to check
for any power cables or water pipes before making any
holes.
• Leave a gap of between 5 mm and 10 mm between the wall and the base
of the screw head, as shown. (We recommend that you consult a home
installation professional.)
Removal Replacement

Specifications

■
Powered Subwoofer (SKW-938)
Type Acoustic suspension
Rated output power (IEC) 125 watts minimum continuous power,
6 ohms, driven at 100 Hz with a maximum
total harmonic distortion of 1 %
Input sensitivity/impedance 280 mV / 20 kΩ
Frequency response 20 Hz to 100 Hz
Cabinet capacity 49 L
Dimensions (W × H × D) 380 mm × 444 mm × 429 mm
(incl. grille and projection)
Weight 15.5 kg
Drivers unit 30 cm Cone Woofer
Power supply AC 230 V, 50 Hz
Power consumption 137 W
Grille Fixed
Other Auto Standby function
Non-magnetic shielding
■
Front Speakers (SKF-980)
Type 2 Way Acoustic suspension
8 Ω
Impedance
Maximum input power 130 W
Sensitivity 83 dB/W/m
Frequency response 50 Hz to 45 kHz
Crossover frequency 2 kHz
Cabinet capacity 7.5 L
Dimensions (W × H × D)
158 mm × 433 mm × 199 mm
(incl. grille and projection)
Weight 5.3 kg
12 cm A-OMF Cone Woofer × 2
Drivers unit
2.5 cm Soft Dome Tweeter × 1
Terminal Binding post (Banana type supported)
Other Magnetic shielding
Note
For non-magnetic shielded speakers:
Try moving the speakers away from your TV or monitor. If discoloration should occur, turn off your TV or monitor, wait 15 to
30 minutes, and then turn it back on again. This normally activates the degaussing function, which neutralizes the magnetic field,
thereby removing any discoloration effects.
SN 29400482A
(C) Copyright 2011 ONKYO SOUND & VISION CORPORATION Japan. All rights reserved.
Powered subwoofer (SKW-938)
(Gray)
Subwoofer
■
Front
■
Rear
To AC outlet
Wall
Caution
• The front grille is not designed to be removed so does not attempt
to remove it forcibly, as this will damage it.
5 to 10 mm
Note
• The Auto Standby function turns the subwoofer on when the input signal
exceeds a certain level. If the Auto Standby function does not work
reliably, try slightly increasing or decreasing the subwoofer output level on
your receiver.
• If the Standby/On indicator lights (both red and blue LEDs) several
seconds or minutes after the sound output stopped, this means that the amp
protection circuit has been activated. In this case, set the OUTPUT LEVEL
control to the center position, and disconnect the power cord from the AC
outlet. Wait at least 10 seconds, and then reconnect the power cord. If that
doesn't solve the issue, contact your Onkyo dealer.
Setting the Subwoofer Level
Make sure the SKW-938 subwoofer's output
level control is set at the "THX-POSITION".
You can then adjust the level as needed.
■
Center Speaker (SKC-980)
Type
Impedance
Maximum input power
Sensitivity
Frequency response
Crossover frequency
Cabinet capacity
Dimensions (W × H × D)
Weight
Drivers unit
Terminal
Other
■
Surround Speakers (SKR-980)
Type
Impedance
Maximum input power
Sensitivity
Frequency response
Crossover frequency
Cabinet capacity
Dimensions (W × H × D)
Weight
Drivers unit
Terminal
Other
Specifications and appearance are subject to change without
prior notice.
THX and the THX logo are trademarks of THX Ltd. which
may be registered in some jurisdictions. All rights reserved.
RCA cable 3.0 m
Standby/On indicator
Red:Subwoofer in standby mode
Blue:Subwoofer on
With the Auto Standby function, the
SKW-938 automatically turns on when
an input signal is detected in Standby
mode. When there's no input signal for
a while, the SKW-938 automatically
enters Standby mode.
POWER switch
Press this switch to the ON position to
turn on the power. Press it to the OFF
position to turn off the power.
OUTPUT LEVEL control
This control is used to adjust the
volume of the subwoofer.
LINE INPUT
This RCA input should be connected to
the subwoofer pre out on your AV
receiver with supplied RCA cable.
2 Way Acoustic suspension
8 Ω
130 W
83 dB/W/m
50 Hz to 45 kHz
2 kHz
7.5 L
433 mm × 158 mm × 199 mm
(incl. grille and projection)
5.3 kg
12 cm A-OMF Cone Woofer × 2
2.5 cm Soft Dome Tweeter × 1
Binding post (Banana type supported)
Magnetic shielding
2 Way Acoustic suspension
8 Ω
130 W
81 dB/W/m
50 Hz to 45 kHz
2 kHz
4.6 L
