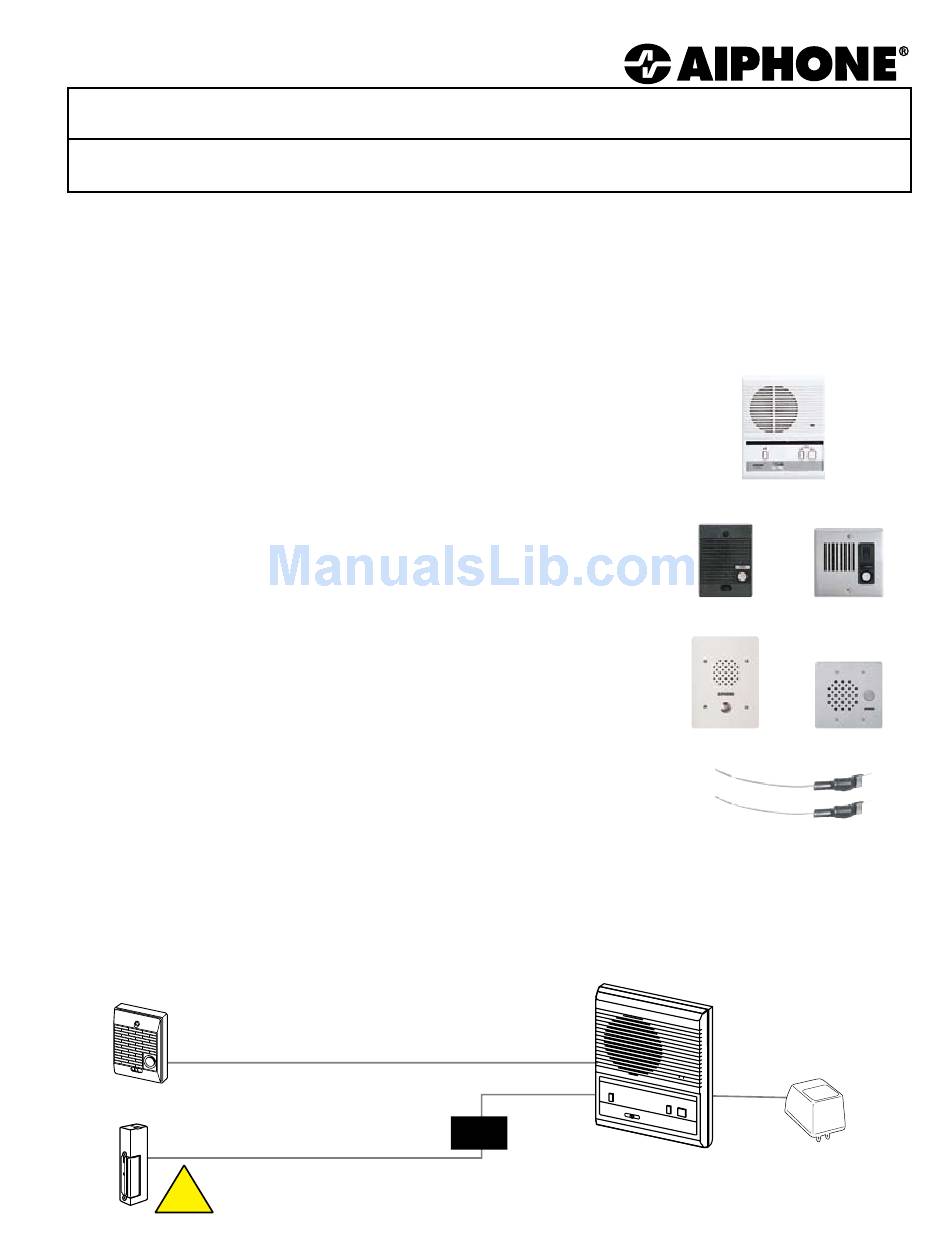

LEM-1DL Supplemental Instructions
- REFER TO INSTALLATION MANUAL INSIDE LEM-1DL BOX FOR STANDARD
The LEM-1DL master station provides communication to and from a door station, and has a separate button
for door release. This supplemental instruction manual addresses many of the additional functions and
modifications for the LEM-1DL system, including installation and troubleshooting information.
MASTER STATION:

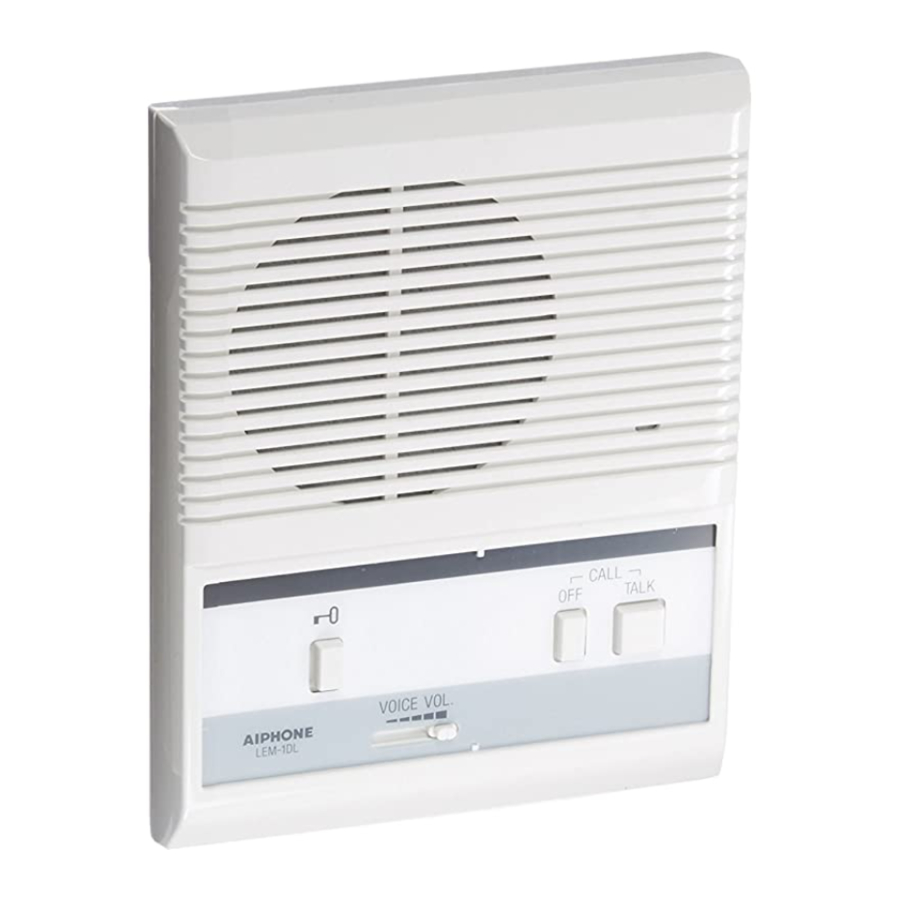

LEM-1DL:
1-call master station with "Normally Open" door release button
DOOR STATIONS: (Note: Door stations are weather resistant, made for outdoor use)
LE-D:
Surface mount, plastic door station (included with LEM-1DLS Set)
LE-DA:
Flush mount in 2-gang box, stainless steel cover
LS-NVP/C:
Vandal resistant flush mount in 3-gang box, white powder-coat finish
LE-SS:
Vandal resistant flush mount sub in 2-gang box, stainless steel
LE-SSR:
Vandal resistant, red mushroom button, flush mount in 2-gang box,
stainless steel
LE-SS-1G:
Vandal resistant flush mount sub in 1-gang box, stainless steel
OPTIONAL COMPONENTS & ACCESSORIES:
RY-AC/A:
External signaling relay (Requires 12VDC power supply)
DAK-2S:
Dual master adaptor kit
(1 per 2 master stations. Use 2 DAK-2S for up to 4 total master stations)
SBX-NVP:
Surface mount box for LS-NVP/C
SBX-2G:
Surface mount box for LE-SS, LE-SSR, LE-DA
SBX-1G-SS:
Surface mount box for LE-SS-1G
EL-12S:
Door strike (for interior wood frame doors only)
PT-1210N:
AC 12V Transformer (used for door strike and for each master station)
PS-1225UL:
12V DC Power Supply, 2.5A, UL Listed
822202:
2 conductor, 22AWG, Shielded wire
(Available in 500' and 1000' boxes)
Install two separate runs of this cable, one for the intercom and one for
the door release.
DOOR RELEASE WIRES MUST BE IN A SEPARATELY JACKETED CABLE FROM THE INTERCOM WIRING.
LEM-1DLS Set contains:
LE-D
1 LEM-1DL, 1 LE-D, 1 PT-1210N.
Door strike not included.
2 cond. shielded for intercom
Separate 2 conductor for door release
If using a non-Aiphone door strike, use separate power
!
source for door release mechanism.
Single Master Station with Door Release
INSTALLATION INFORMATION -
#90111
1109
LEM-1DL
Power
Source
for Strike
LEM-1DL
LE-D
LE-DA
LS-VNP/C
LE-SS
DAK-2S
(2 component modules per kit)
PT-1210N
LEM-1DL Supplement
Pg. 1
Advertisement
Table of Contents
Related Manuals for Aiphone LEM-1DL
Summary of Contents for Aiphone LEM-1DL
- Page 1 - REFER TO INSTALLATION MANUAL INSIDE LEM-1DL BOX FOR STANDARD INSTALLATION INFORMATION - The LEM-1DL master station provides communication to and from a door station, and has a separate button for door release. This supplemental instruction manual addresses many of the additional functions and modifications for the LEM-1DL system, including installation and troubleshooting information.
- Page 2 3. Separate PT-1210N power supplies are required for each master station. NOTE: Connect power leads to master BEFORE plugging in power supply 4. Install the bare wire leg of the component module directly onto the “1” terminal of the LEM-1DL’s.
- Page 3 WHITE wire of RY-AC SYSTEM CONFIGURATION: LEM-1DL with Door Release contact activating a Normally Closed relay for a Magentic Lock Note: For applications requiring a Normally Closed (N/C) contact (Magnetic locks, etc.), an external relay should be chosen based on the lock’s power source.
-
Page 4: Troubleshooting Guide
PT-1210N. Verify that voltage on +/- way up. Wrong voltage on LEM-1DL terminals is between 12-16V AC or 12-24V DC. In a system with RY-AC and external signaling Make sure the component module is installed with the bare...
