Aiphone LEM-1DL Instruction Manual

Single master station with door release
Hide thumbs
1
2
3
4

Advertisement

Table of Contents

- REFER TO INSTALLATION MANUAL INSIDE LEM-1DL BOX FOR STANDARD
The LEM-1DL master station provides communication to and from a door station, and has a separate
button for door release. This supplemental instruction manual addresses many of the additional functions
and modifications for the LEM-1DL system, including installation and troubleshooting information.
MASTER STATION:
LEM-1DL:
1-call master station with "Normally Open" door release button
DOOR STATIONS: (Note: Door stations are weather resistant, made for outdoor use)
LE-D:
Surface mount, plastic door station (included with LEM-1DLS)
LE-DA:
Flush mount in 2-gang box, stainless steel cover
LS-NVP/C:
Vandal resistant flush mount in 3-gang box, white powder-coat finish
LE-SS:
Vandal resistant flush mount sub in 2-gang box, stainless steel
LE-SSR:
Vandal resistant, red mushroom button, flush mount in 2-gang box, stainless steel
LE-SS-1G:
Vandal resistant flush mount sub in 1-gang box, stainless steel
OPTIONAL COMPONENTS & ACCESSORIES:
RY-AC/A:
External signaling relay (Requires 12VDC power supply)
DAK-2S:
Dual master adaptor kit
(1 per 2 master stations. Use 2 DAK-2S for up to 4 total master stations)
SBX-NVP:
Surface mount box for LS-NVP/B
SBX-2G:
Surface mount box for LE-SS, LE-SSR, LE-DA
SBX-1G-SS: Surface mount box for LE-SS-1G
EL-9S:
Door strike (for interior wood frame doors only)
PT-1210N:
AC 12V Transformer (used for door strike and for each master station)
PS-1225UL:
12V DC Power Supply, 2.5A, UL Listed
822202:
2 conductor, 22AWG, Shielded wire
(Available in 500' and 1000' boxes)
Install two separate runs of this cable, one for the intercom and one for the door
release.
DOOR RELEASE WIRES MUST BE IN A SEPARATELY JACKETED CABLE FROM THE INTERCOM WIRING.
LE-D
Separate 2 conductor for door strike
EL-9S, not included with the LEM-1DLS set.

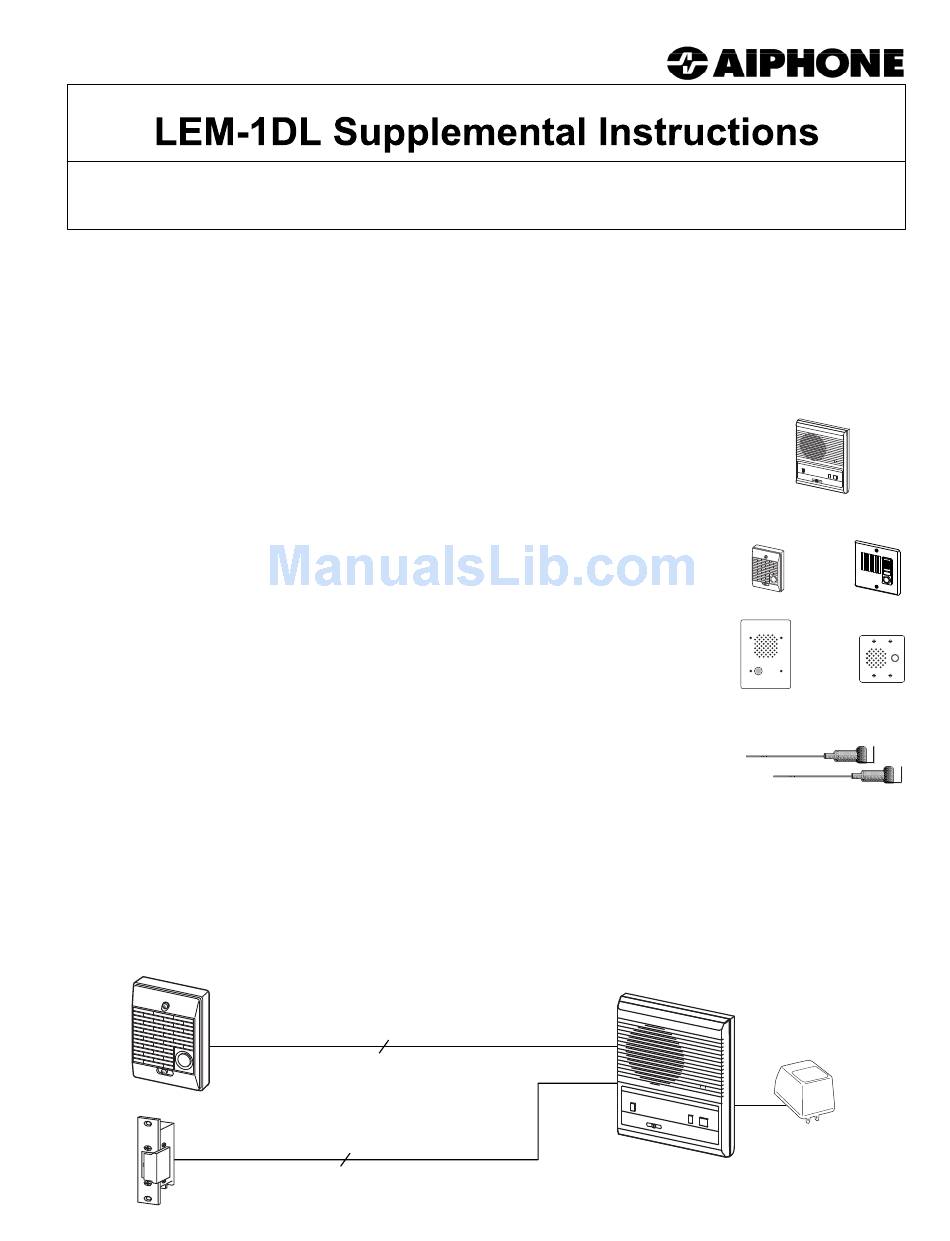

Single Master Station with Door Release

INSTALLATION INFORMATION -
LEM-1DLS Set contains:
1 LEM-1DL, 1 LE-D, 1 PT-1210N.
Door strike not included.
2 cond. shielded for intercom
#90111
0207
LEM-1DL
LE-D
LE-DA
LE-SS
LS-NVP/C
DAK-2S
(2 component modules per kit)
LEM-1DL
PT-1210N
LEM-1DL Supplement
Pg. 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LEM-1DL and is the answer not in the manual?

Questions and answers

Related Manuals for Aiphone LEM-1DL

Summary of Contents for Aiphone LEM-1DL

  • Page 1 - REFER TO INSTALLATION MANUAL INSIDE LEM-1DL BOX FOR STANDARD INSTALLATION INFORMATION - The LEM-1DL master station provides communication to and from a door station, and has a separate button for door release. This supplemental instruction manual addresses many of the additional functions and modifications for the LEM-1DL system, including installation and troubleshooting information.

  • Page 2: Installation Guidelines

    3. Separate PT-1210N power supplies are required for each master station. 4. Install the bare wire leg of the component module directly onto the "1" terminal of the LEM-1DL's. 5. Attach the wire coming form the "1" terminal of the LE-D to the colored wire end of the component modules at both masters. (The component modules will easily fit within the space available.)
  • Page 3 To 1 of LEM-1DL SYSTEM CONFIGURATION: LEM-1DL with Door Release contact activating a Normally Closed relay for a Magentic Lock Note: For applications requiring a Normally Closed (N/C) contact (Magnetic locks, etc.), an external relay should be chosen based on the lock’s power source.

  • Page 4: Troubleshooting Guide

    Check power supply. If it's model SKK-620, remove and replace with No call tone, no communication. Chirping sound model PT-1210N. Verify that voltage on +/- terminals of LEM-1DL is when volume control is turned all the way up. Wrong voltage on LEM-1DL.
