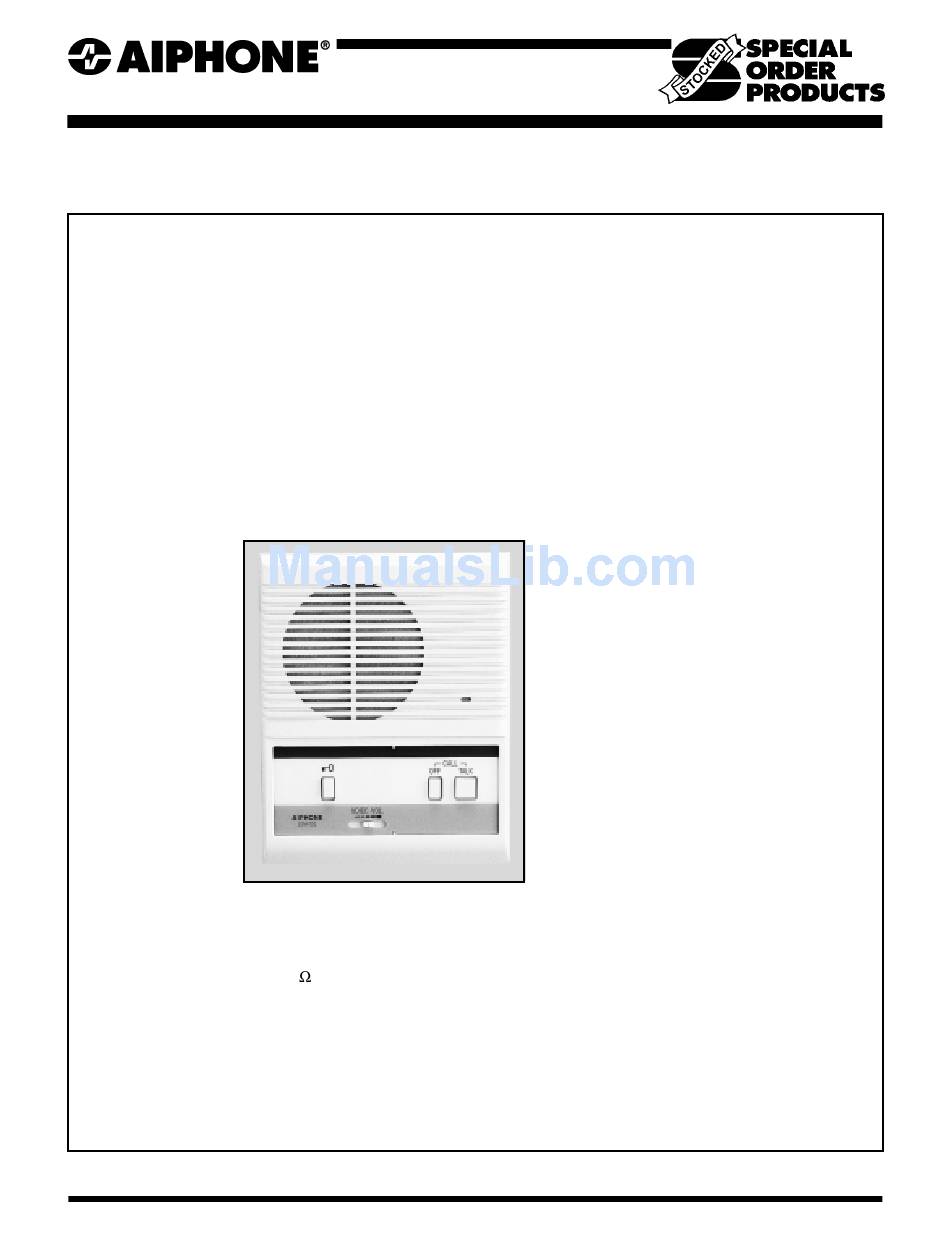

Aiphone LEM-1DL/C Specifications

LEM-1DL/C
Multi-Master Door Answering System
DESCRIPTION:
The LEM-1DL/C is a compact master station able
to answer a door station and activate a door strike.
Up to six master stations can be used to answer
the same door. The master has a TALK, OFF and
door release button, as well as volume controls
for voice communication and incoming call tone.
Communication is push-to-talk, release-to-listen
at the master, and hands free at the door station.
Any remote station compatible with the LEM or
LEF series can be used. There is no master-to-
master communication. The unit can be mounted
on a wall or placed on a desk or counter.
NOTE: No master-to-master communication.
LEM-1DL/C
SPECIFICATIONS:
Power: 12-16V AC. Use PT-1210N (12VAC, 10VA) or equivalent
Consumption: Max. 4W (16VAC), Max. 200mA (24VDC)
Output: 100mW at 20
Calling: Mono-electronic tone during call-in from sub
Communication: Push-to-talk at master, hands free at remote
Mounting: Desk or wall mount
Door Release: Normally open dry contact, Max. 30VAC, 1A or 30VDC, 1A
Wiring: 2 conductors to door station (#822202), 3 conductors between masters (#822203)
Door release: Separate 2 conductor cable between masters and to strike (#822202)
Wiring Distance: 650' with 22AWG; 1600' with 18AWG.
Dimensions: 7"H x 5-1/2"W x 2-1/4"D
Aiphone Communication Systems • 1700 130th Ave. N.E. • Bellevue, WA 98005
(425) 455-0510 • FAX: (425) 455-0071 • (800) 692-0200 • www.aiphone.com
FEATURES:
• One door station and up to six master stations
• Occupied lamp indicating another master is in use
• Door release button
• Normally Open door release contacts can be modified
to Normally Closed for use with a magnetic lock
• Voice and call tone volume controls
• Desk or wall mount
• Any "LE- or "LS-" series remote can be used
SOME APPLICATIONS:
• Offices
• Courthouses
• Hotel/Motel door entry
• Retail/Convenience Stores
• Small Secured Facilities
